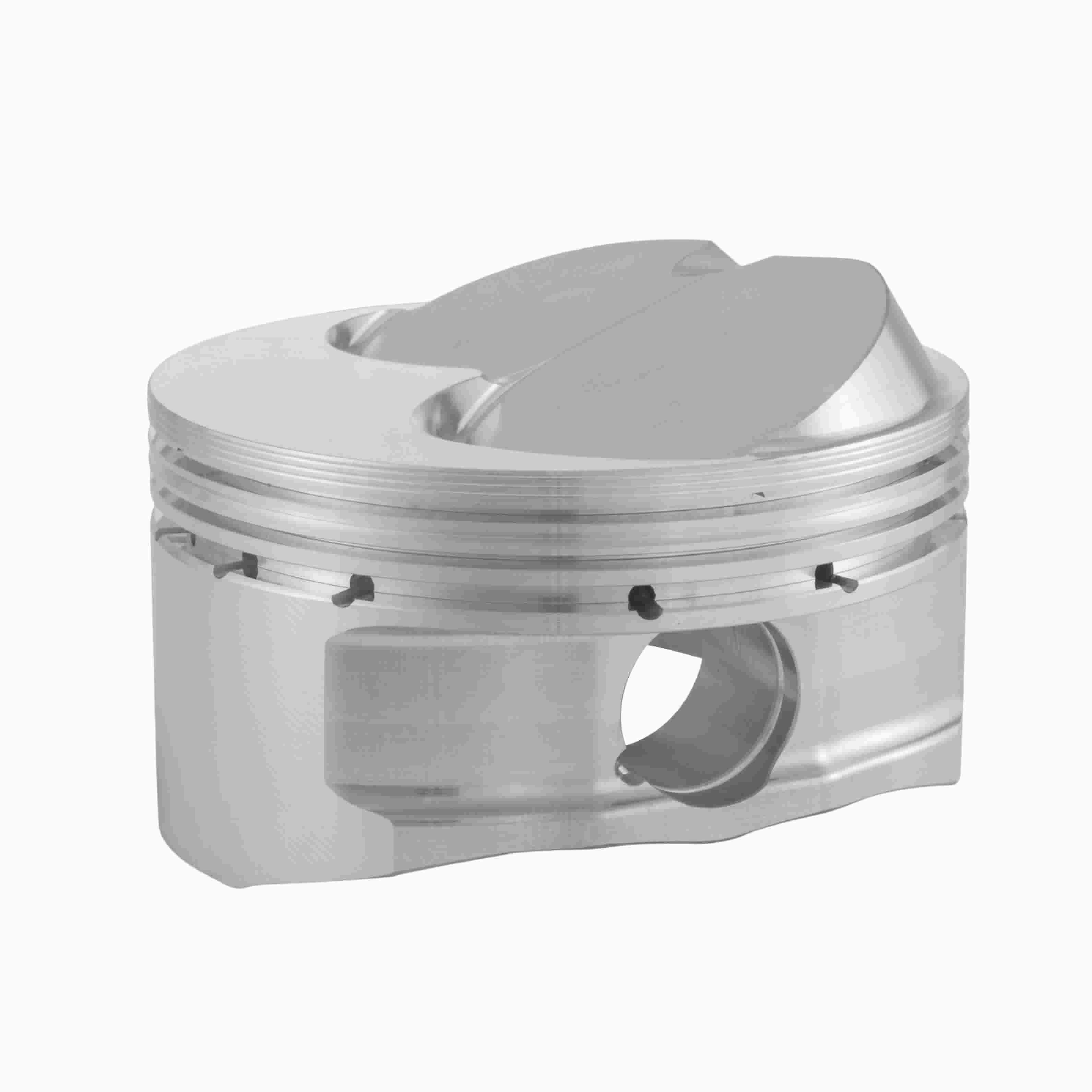

Carrillo SC7314-6 Forged Piston Set RB26DETT 87mm Bore 9.0:1 Compression

The Carrillo SC7314-6 is a high-performance forged piston set engineered specifically for the Nissan RB26DETT engine. This complete 6-piston set features an 87mm bore size (+1.0mm oversize) with a 9.0:1 compression ratio, designed to deliver exceptional strength and reliability in demanding motorsports applications.

Key Specifications:

• Bore Size: 87.00mm (+1.0mm oversize)
• Compression Ratio: 9.0:1
• Compression Height: 1.193 inches
• Stroke: 73.7mm
• Rod Length: 121.5mm
• Piston Material: 2618 forged aluminum
• Ring Thickness: 1.0mm / 1.2mm / 2.8mm
• Dome Type: +1cc dome

Premium Features:

• High-strength aluminum forgings for maximum durability
• Fully CNC machined and balanced to +/- 1 gram
• Dual pin oilers force-fed from oil ring for superior lubrication
• Accumulator groove reduces ring flutter and improves seal
• Radiused valve reliefs for improved valve clearance
• Pin fitting final hone on wrist pin bore
• Pick lock grooves for easy installation and removal
• Wrist pins included at no additional cost

CP-Carrillo pistons are designed through extensive research and development with support from top motorsports teams. Each piston set is manufactured to exacting tolerances and includes everything needed for installation, making them a direct replacement for stock pistons in most cases. Ideal for street performance, road racing, and high-boost turbocharged applications.
