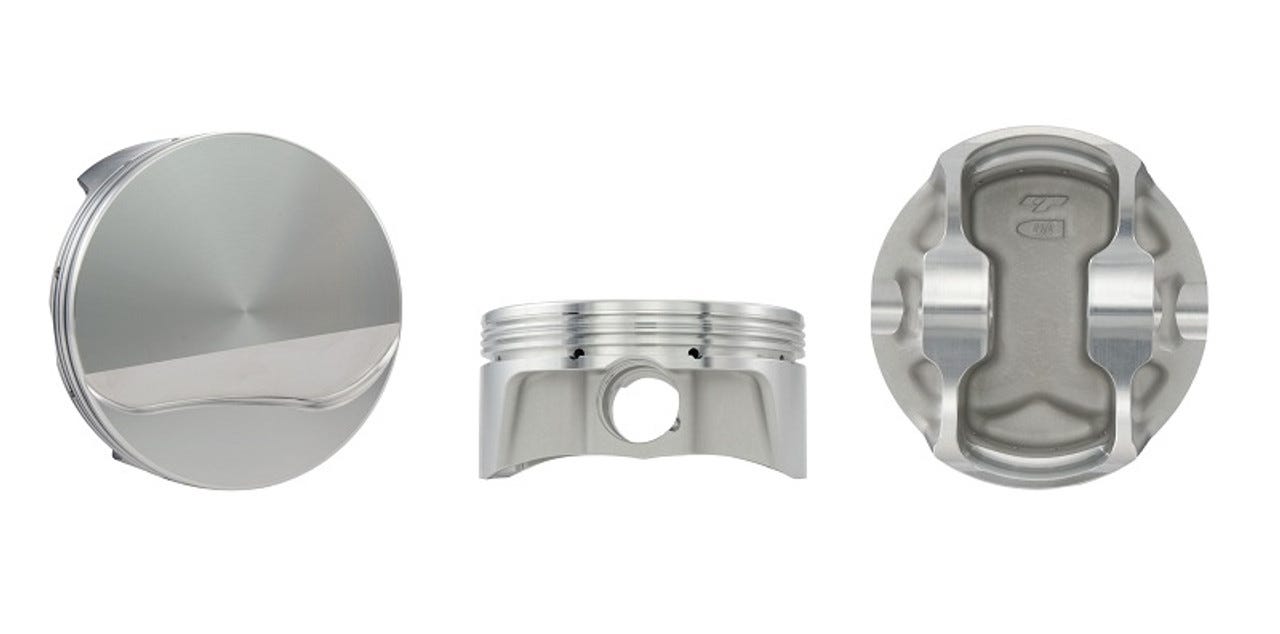

Carrillo SC7232-4 Forged Piston and Ring Set Mitsubishi 4G63 85.5mm

The CP-Carrillo SC7232-4 is a premium forged piston and ring set engineered for Mitsubishi 4G63 7-bolt engines, including 2G Eclipse and Evolution VIII/IX applications. Manufactured from high-strength 2618 aluminum alloy in the USA, these pistons deliver exceptional durability and performance for high-horsepower builds.

Key Specifications:

• Bore Size: 85.50mm (3.366 inches) - 0.50mm oversize
• Compression Height: 1.370 inches (34.8mm)
• Compression Ratio: 10.0:1 (2G Eclipse) / 10.5:1 (Evolution VIII/IX)
• Piston Weight: 332 grams
• Wrist Pin Size: 22mm
• Ring Thickness: 1.0mm x 1.2mm x 2.8mm
• Dome/Dish Volume: -2.2cc
• Stroke: 88mm with 150mm rod length

Features:

• CP Pistons Sport Compact Series design optimized for high-performance applications
• Compatible with oversized valves and high-lift camshafts
• Includes premium piston rings (Part Number CCPN-3366)
• Anti-detonation grooves protect the top ring and reduce cylinder contact at high RPM
• Optional upgrades available: gas ports, skirt coating, ceramic top coating, and reinforced wrist pins

CP-Carrillo pistons represent the highest quality in forged piston technology, engineered for maximum power output and reliability in demanding racing and street performance applications. Each piston is precision-machined to exact tolerances for optimal ring seal and longevity.
