CP-Carrillo SC7210-6 Forged Piston & Ring Kit Mitsubishi 6G72T 91.9mm Bore

Manufacturer

Part Number

SC7210-6
Sale Price

$1,149.81

Estimated ship date Friday, November 27

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

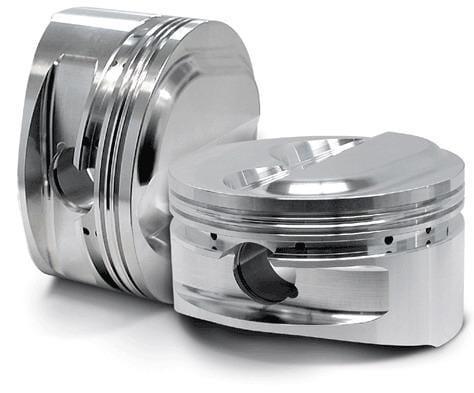

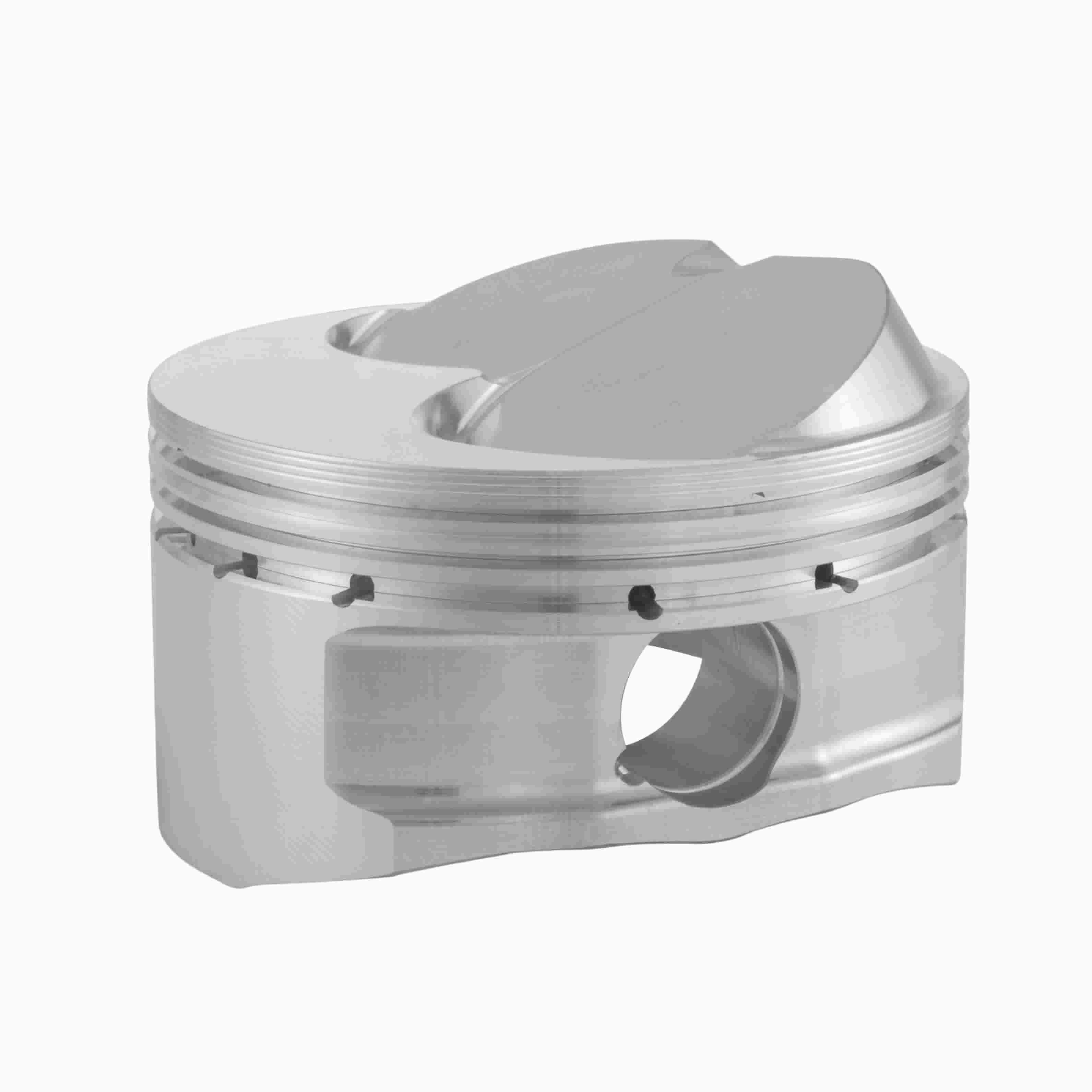

The CP-Carrillo SC7210-6 is a complete forged piston and ring kit designed for the Mitsubishi 6G72T 3.0L V6 engine. The dish-style pistons feature four valve reliefs and are fully compatible with turbo, supercharger, and nitrous oxide applications.

Key Specifications:

  • Bore: 3.617 in. (91.948 mm) — +0.030 mm oversize
  • Stroke: 76.00 mm
  • Rod Length: 140.9 mm
  • Compression Height: 1.255 in. (31.877 mm)
  • Piston Head Volume: +17.00 cc (dish)
  • Piston Style: Dish with four valve reliefs
  • Piston Material: Forged aluminum
  • Pin Diameter: 0.866 in. (22 mm)
  • Piston Weight: 358 grams
  • Block Height: 211.15 mm
  • Wrist Pin Style: Press-fit or floating
  • 6x forged aluminum pistons (balanced to ±1 gram)
  • Wrist pins (included at no additional cost)
  • Wrist pin lock rings
  • High-performance piston rings (Ring PN: RS1610-3617-0)

Key Features:

  • Dedicated forgings — manufactured from high-strength aluminum for optimum grain flow and surface integrity
  • Fully CNC machined — 5-axis machining capability holds the tightest tolerances in the industry
  • Accumulator grooves — V-shaped groove in the second ring land to alleviate ring flutter under high combustion pressure
  • Dual forced pin oilers — double pin oilers force-fed from the oil ring groove for enhanced wrist pin lubrication
  • Pin lock grooves — for easy lock ring removal during service
  • Four valve reliefs — compatible with stock and oversized valves and high-lift camshafts
  • Made in the USA — manufactured at CP-Carrillo's facility in Irvine, California

Replacement Part Numbers:

  • Wrist Pin: 866-2500-15CP1C
  • Rings: RS1610-3617-0
  • Lock Rings: 866 063 SWL

CP-Carrillo pistons go through a demanding quality control process including computerized inspection and precision machining, ensuring each set delivers accurate fitment and consistent performance in high-horsepower builds.
