CP-Carrillo SC7203-4 Forged Dish Piston & Ring Kit Mitsubishi 2.0L 86mm Bore

Built from high-strength forged aluminum, these pistons feature a dish profile with four valve reliefs, delivering reliable performance across a wide range of forced induction and power-adder builds.

Key Specifications:

• Bore: 86.00mm (3.386 in.)
• Stroke: 88.00mm
• Rod Length: 150.00mm
• Compression Height: 1.370 in. (34.798mm)
• Piston Head Volume: +9.90cc
• Compression Ratio: 9.0:1
• Pin Diameter: 22mm
• Piston Weight: 335g
• Piston Style: Dish with four valve reliefs
• Material: Forged aluminum
• Piston Rings Included: Yes

Key Features:

• Fully CNC machined using advanced 5-axis machining for precise tolerances
• Compatible with turbo, supercharger, and nitrous oxide applications
• Valve reliefs designed to accommodate oversized valves and high-lift camshafts
• Balanced to within ±1 gram for smooth high-RPM operation
• Double forced pin oilers for improved wrist pin lubrication
• Accumulator grooves on the second ring land to reduce ring flutter under high cylinder pressure
• Each piston engineered via computer modeling for optimum design integrity

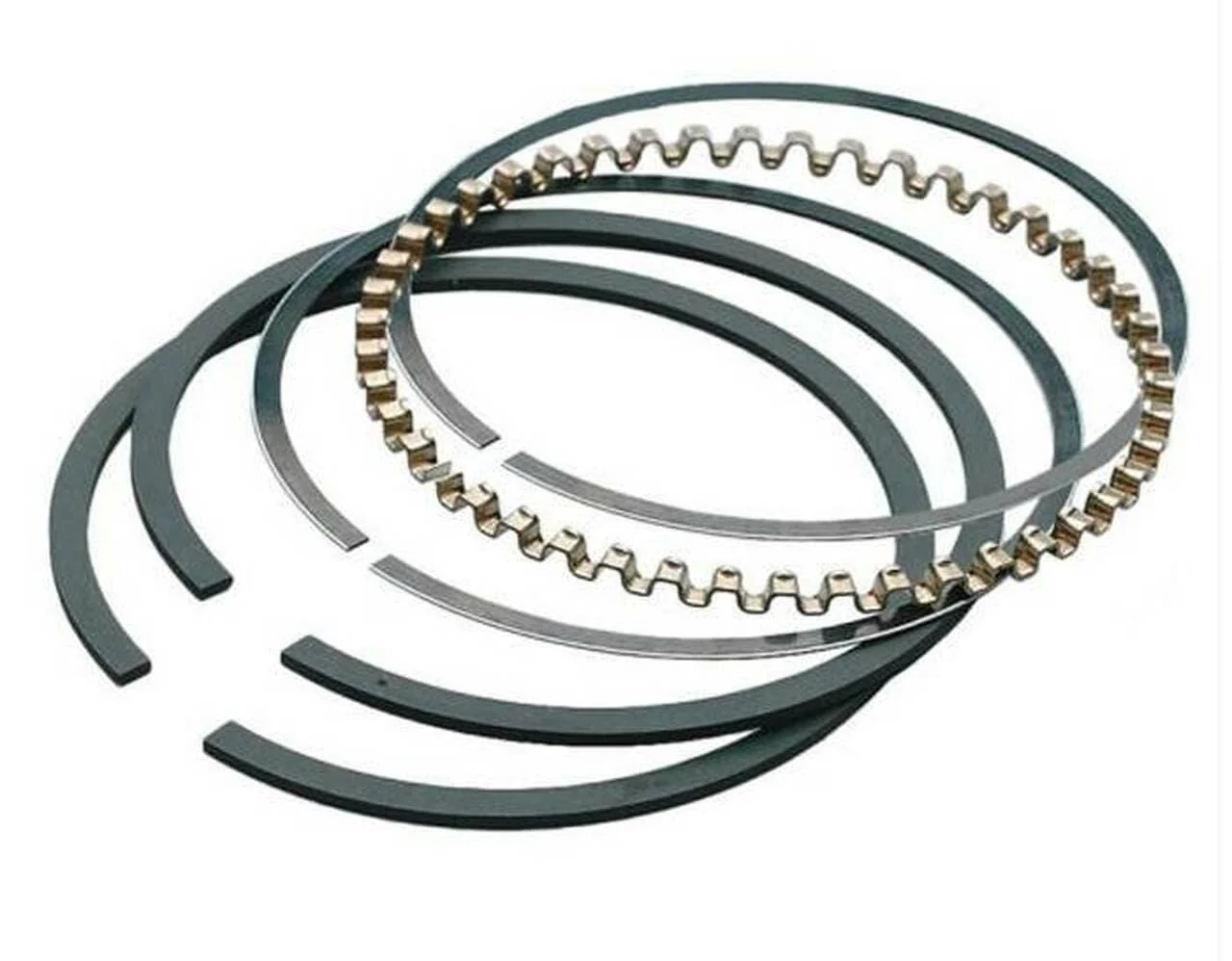

The SC7203-4 kit includes forged pistons, a matched performance ring pack, wrist pins, and locks — everything needed for the piston assembly. CP-Carrillo's climate-controlled inspection department and advanced quality control ensure each piston meets exacting standards, making this kit a trusted choice for performance street builds, track use, and competition engines.
