Carrillo SC7130-4 Forged Piston Set Honda H22 87mm Bore 10.0:1

The Carrillo SC7130-4 is a high-performance forged piston and ring kit engineered for Honda H22 engines with sleeved blocks.

Key Specifications:

• Bore size: 87.0mm (3.425 inches)
• Compression ratio: 10.0:1
• Compression height: 1.220 inches
• Dome height: 0.060 inches with four valve reliefs
• Piston head volume: -1.90cc
• Wrist pin style: Press-fit or floating design
• Wrist pin diameter: 22mm
• Rod length compatibility: 143.150mm
• Stroke: 90.70mm
• Rated for 550+ horsepower

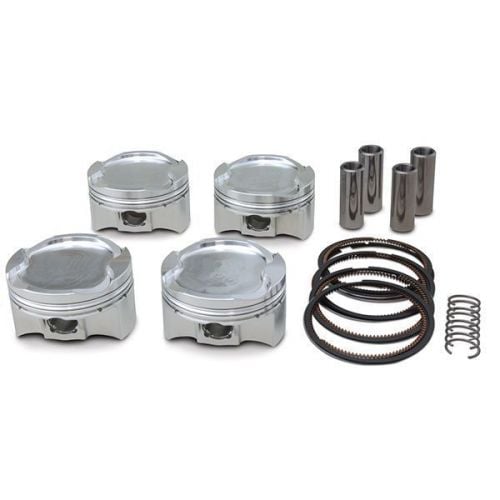

• Piston rings (complete ring set)
• Wrist pin retainers

Important Note: This piston set requires a sleeved engine block for proper installation. CP-Carrillo pistons are precision-machined using state-of-the-art 5-axis equipment and sophisticated computer modeling to ensure optimal performance. Each piston is manufactured in the USA with proprietary tooling and inspected using advanced computerized equipment in climate-controlled facilities to meet the highest quality standards.
