CP-Carrillo SC70403-4 Forged Piston & Ring Set Honda K20A/A2/A3 88mm +2.0mm 9.0:1 CR

Manufacturer

Part Number

SC70403-4
Sale Price

$773.84

Estimated ship date Tuesday, November 24

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

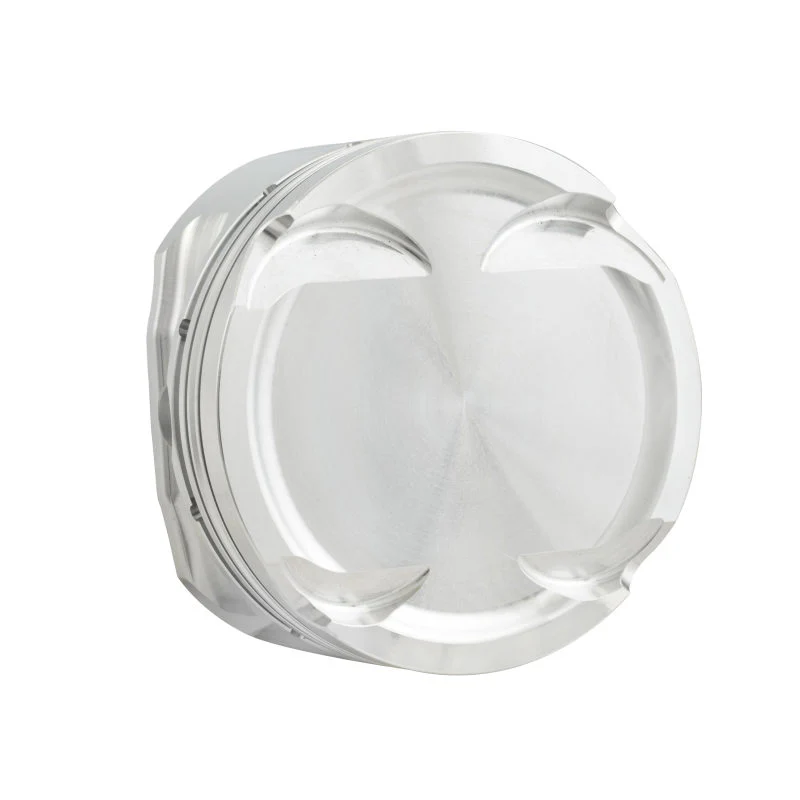

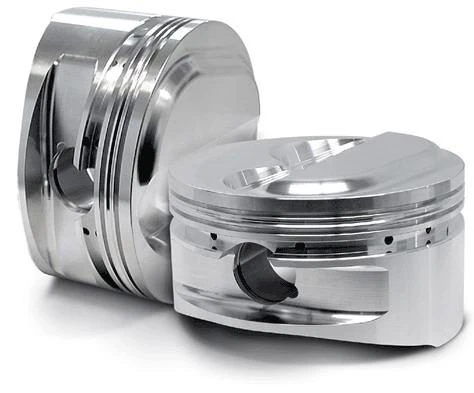

The CP-Carrillo SC70403-4 is a forged piston and ring set engineered for the Honda/Acura K-Series K20A, K20A2, and K20A3 engine platform. This shelf-stock set features an 88mm bore (+2.0mm oversize) and a 9.0:1 compression ratio with a dish piston design, making it well-suited for high-performance naturally aspirated and forced induction builds.

Key Specifications:

  • Bore: 88.00mm (3.465 in.) — +2.0mm oversize
  • Stroke: 86.00mm
  • Rod Length: 139.99mm
  • Compression Height: 1.181 in. (29.99mm)
  • Piston Style: Dish with dual valve reliefs
  • Pin Diameter: 0.866 in. (22mm)
  • Advertised Weight: 338g per piston
  • Top Ring: 1.0mm steel
  • Second Ring: 1.2mm cast iron
  • Material: Forged 2618-T61 aluminum alloy
  • 4 forged aluminum pistons
  • Complete ring set (top, second, and oil rings)
  • Wrist pins
  • Wrist pin retainers

Features:

  • Fully CNC-machined and balanced to ±1 gram for precise reciprocating mass matching
  • Custom skirt cam and barrel design for optimum thermal expansion fit
  • Deep valve reliefs accommodate high-lift camshafts and +1mm valve sizes
  • Accumulator grooves for enhanced ring seal
  • Double pin oilers with force-fed oil ring design
  • Pick lock grooves for easy lock removal during service
  • Compatible with turbocharger, supercharger, and nitrous oxide applications

CP-Carrillo pistons are manufactured in Irvine, California using proprietary tooling and state-of-the-art 5-axis CNC machining. Each piston is engineered via sophisticated computer modeling and inspected in a climate-controlled facility to ensure maximum dimensional accuracy and consistency.
