CP-Carrillo SC7027-4 Forged Piston & Ring Set Honda D-Series 75mm 9.0:1

Designed for builders seeking a reliable upgrade over OEM components, this kit delivers a 75.0mm standard bore and a 9.0:1 compression ratio, making it well-suited for naturally aspirated, turbocharged, supercharged, and nitrous oxide applications.

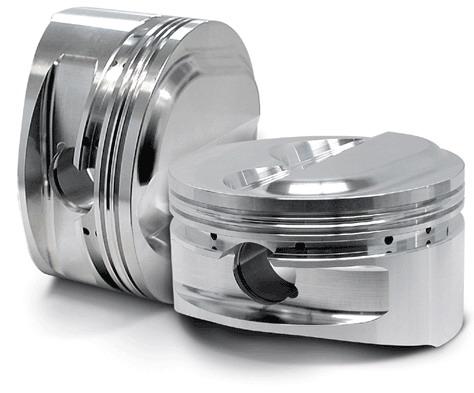

Each piston is CNC-machined from high-strength 2618 forged aluminum and features a dish-style crown with four valve reliefs. The deep valve relief design accommodates high-lift camshafts and is compatible with +1mm oversized valves. With a compression height of 1.181 inches and a lightweight construction of approximately 240 grams per piston, these pistons reduce reciprocating mass for improved throttle response and high-RPM performance.

Key Features:

• 75.0mm standard bore, 9.0:1 compression ratio
• Dish-style crown with four valve reliefs
• 1.181 in. compression height
• Deep valve reliefs for high-lift camshaft compatibility
• Compatible with +1mm oversized valves
• Custom skirt cam and barrel design with accumulator grooves
• Fully CNC-machined and balanced to +/- 1 gram
• Wrist pins included at no additional cost
• Double pin oilers with force-fed oil ring
• Pick lock grooves for easy lock removal
• High-performance rings included
• Optional skirt coating available

CP-Carrillo pistons are developed using advanced 3D modeling software and validated through Finite Element Analysis (FEA), ensuring optimal wall thickness, weight distribution, and structural integrity. Not CARB legal — not for sale in California.
