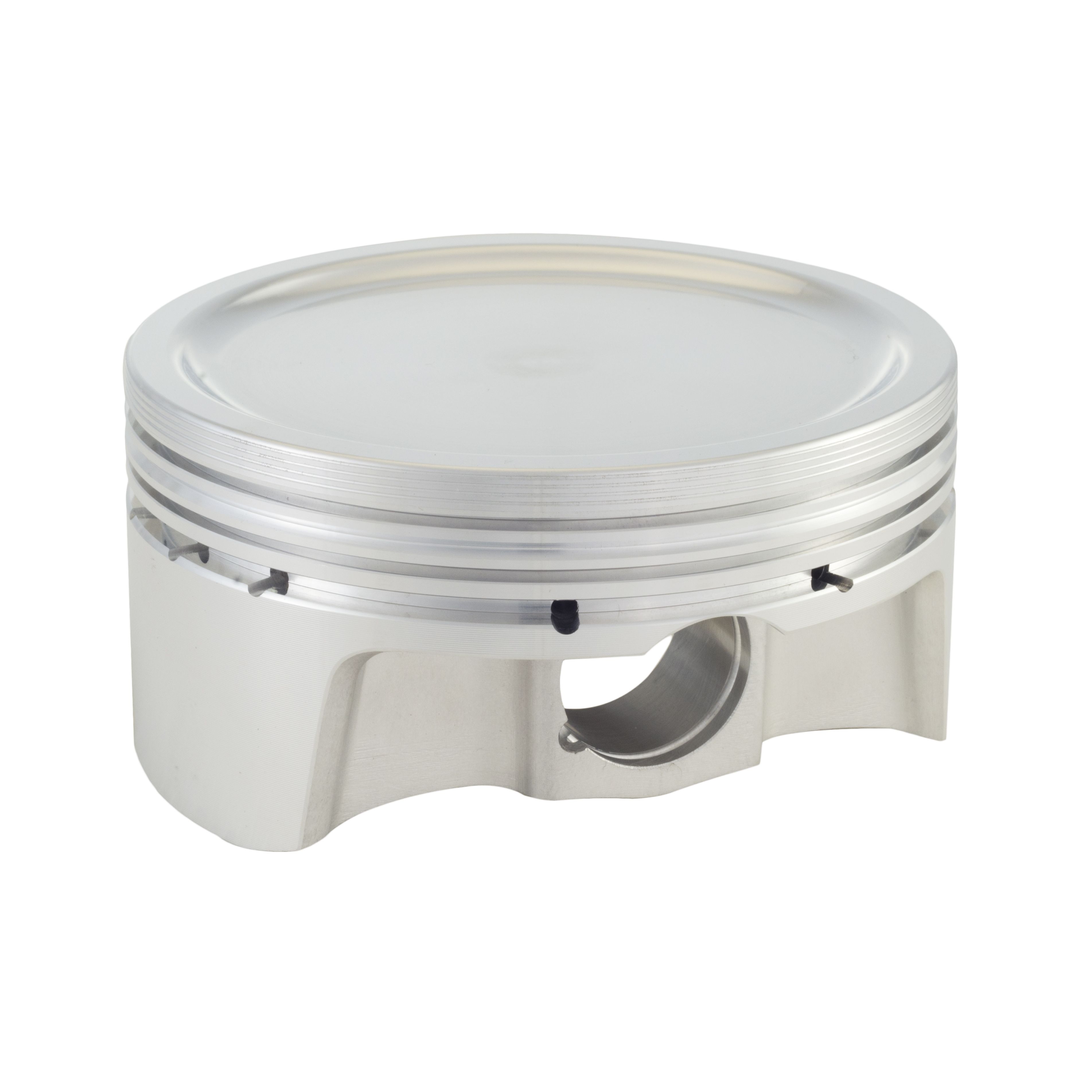

CP-Carrillo SC7026-4 Forged Dish Piston & Ring Kit Honda D-Series 1.6L 75.5mm Bore

The CP-Carrillo SC7026-4 is a complete forged piston and ring kit designed for the Honda D-Series 1.6L engine. Pistons weigh approximately 245 grams each and are fully CNC-machined and balanced to within ±1 gram for smooth, high-revving operation.

Engineered for high-performance and forced-induction applications, these pistons are suitable for turbocharged, supercharged, and nitrous oxide builds. The dish design and deep valve reliefs accommodate high-lift camshafts and oversized valves, making them an ideal foundation for a performance D-Series engine build.

Key Features:

• Bore: 75.5mm (2.972 in.) | Stroke: 90mm | Rod Length: 137mm
• Compression Height: 1.181 in. | Piston Head Volume: -11.8cc (Dish)
• Piston Style: Dish with four valve reliefs
• Material: High-strength forged aluminum
• Fully CNC-machined and balanced to ±1 gram
• Compatible with turbo, supercharger, and nitrous applications
• Custom skirt cam and barrel design for improved ring seal and longevity
• Accumulator grooves for enhanced oil control
• Double pin oilers with force-fed oil ring design
• Pick lock grooves for easy lock removal
• Deep valve relief depth accommodates high-lift camshafts
• Made for +1mm valve sizes
• Wrist pins (29mm / 0.748 in.) and retainers included at no extra cost
• High-performance rings included

CP-Carrillo manufactures each piston using proprietary tooling and 5-axis CNC machining at their facility in Irvine, California. Each set passes through a climate-controlled inspection department using computerized electronic measuring equipment to ensure precise fitment and consistent quality across every kit.
