Carrillo SC7016-4 Forged Piston and Ring Kit Honda B-Series 81.5mm Bore 9.8:1 CR

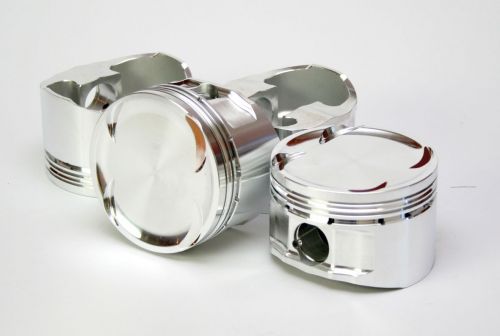

The Carrillo SC7016-4 is a complete forged aluminum piston and ring kit designed specifically for Honda B-Series engine builds.

Key Specifications:

• Bore Size: 81.5mm (3.209 inches)
• Compression Ratio: 9.8:1
• Compression Height: 1.181 inches
• Piston Head Volume: +3.90cc
• Wrist Pin Size: 21mm
• Stroke: 87.20mm
• Rod Length: 138.000mm
• Forged aluminum construction for exceptional strength and durability
• Wrist pin style: Press-fit or floating
• Includes piston rings, wrist pins, and retainers

Performance Features:

• Designed for oversized valves and high-lift camshafts
• Rated for 550+ horsepower applications
• Suitable for turbo, supercharger, nitrous, and naturally aspirated builds
• Engineered using advanced computer modeling for optimal design
• Manufactured with precision 5-axis machining technology
• Rigorous quality control and climate-controlled inspection process

CP-Carrillo has been a leader in high-performance piston and connecting rod manufacturing since 1963, serving professional motorsports and serious engine builders worldwide. Each component is designed through extensive research and development to deliver maximum power and reliability.
