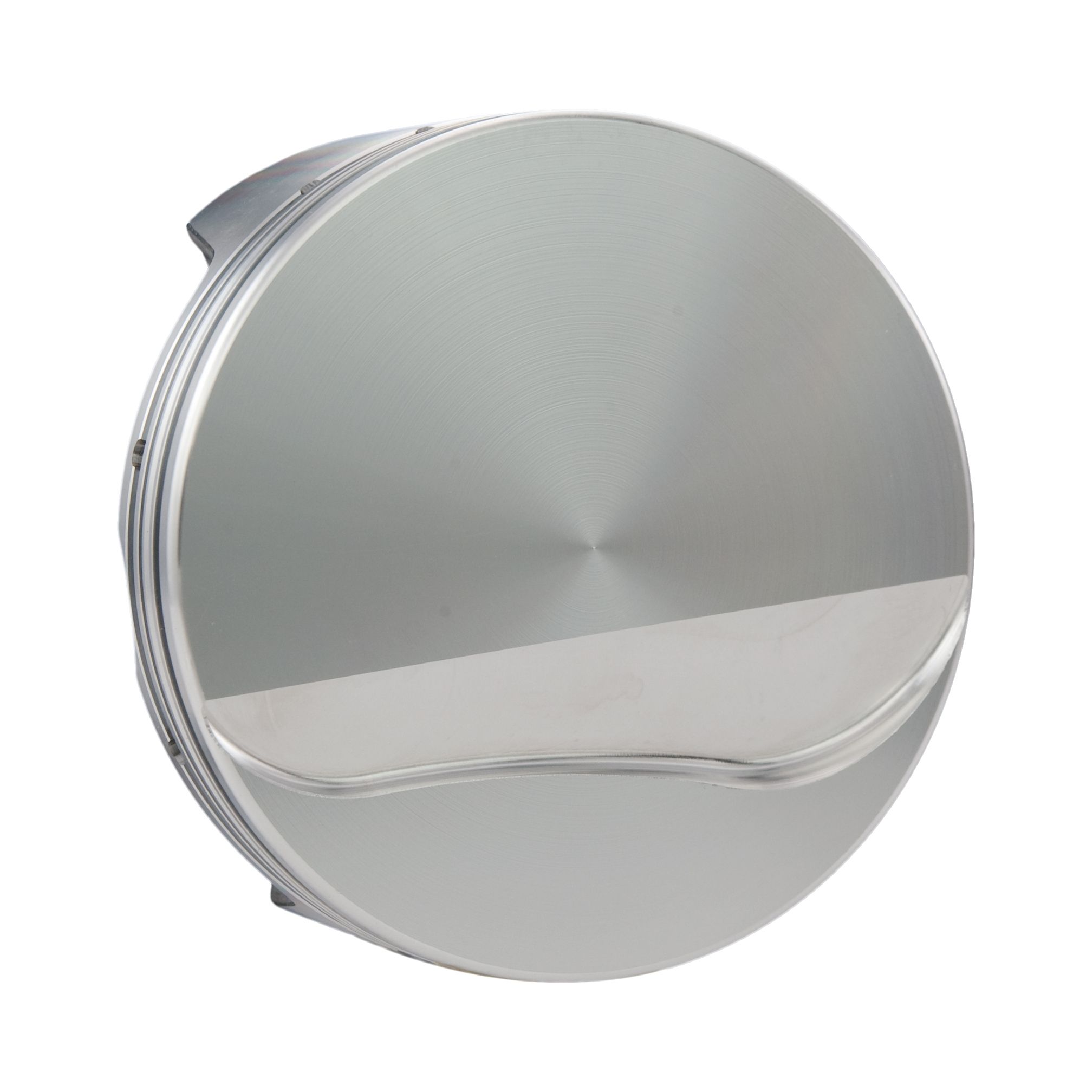

Carrillo BF9823-030-8 Ford 4.6L 4V Power Adder Forged Piston & Ring Set

The Carrillo (CP-Carrillo) BF9823-030-8 is a complete forged piston and ring set engineered for the Ford 4.6L 4-valve Modular engine in power adder applications. Designed specifically to handle the extreme cylinder pressures generated by nitrous oxide, supercharger, and turbocharger setups, these pistons deliver the strength and precision required for high-performance forced induction builds.

Each piston is precision-forged in the USA from 2618 aluminum alloy, a material known for its superior fatigue resistance and toughness under thermal and mechanical stress — making it the preferred choice for power adder builds over cast or hypereutectic alternatives.

Key Specifications:

• Bore: 3.582 in. (+0.030 over stock)
• Stroke: 3.543 in.
• Rod Length: 5.933 in.
• Compression Height: 1.220 in.
• Top Configuration: Flat Top
• Advertised Weight: 380g per piston
• Wrist Pin: 0.866 x 2.500 in.
• Ring Pack: 1.5mm steel gas nitrided top ring / 1.5mm Napier second ring / 3.0mm oil ring

Key Features:

• Forged 2618 aluminum construction for maximum strength and durability
• Designed for power adder use: nitrous, supercharger, and turbocharger compatible
• Accumulator grooves for improved ring seal
• Forced pin oilers for enhanced wrist pin lubrication
• Special skirt design minimizes piston noise and reduces friction
• Made in the USA

The BF9823-030-8 is the 0.030-inch overbore version of the BF9823 series, ideal for engines that have been bored or are being built with fresh cylinder sleeves.
