Eagle CRS5927M2XD Extreme Duty H-Beam Connecting Rods for Mazda MZR 2.3L Turbo

Manufacturer

Part Number

CRS5927M2XD
Black Friday Price

$607.24

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

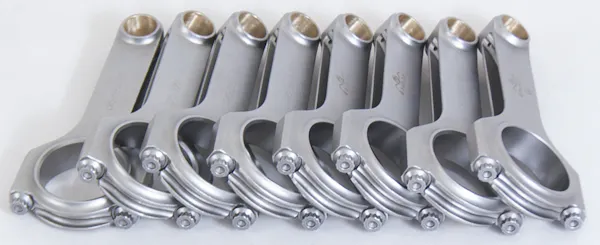

The Eagle CRS5927M2XD extreme duty connecting rods are engineered specifically for high-performance Mazda MZR 2.3L direct injection turbocharged engines. These forged 4340 steel H-beam rods are designed to handle extreme power levels up to 1200 horsepower, making them ideal for heavily modified turbo builds and racing applications.

Construction and Materials:

  • Forged from vacuum-degassed 4340 certified chromoly steel using a two-piece forging process
  • H-beam design provides exceptional strength-to-weight ratio
  • Fully machined, shot-peened, and polished surface finish
  • Multi-stage heat treatment for superior durability and fatigue resistance
  • Silicon bronze bushings for floating piston pin applications

Specifications:

  • Rod length: 5.927 inches center-to-center
  • Pin size: 0.886 inch
  • Big end housing bore: 2.165 inches
  • Big end width: 0.860 inch
  • Pin end width: 0.860 inch
  • Thickness above pin: 0.210 inch
  • Typical weight: 580 grams per rod

Premium Fasteners:

  • 3/8-inch ARP Custom Age 625+ cap screws rated at 265,000 psi
  • Torque specification: 60 ft-lbs with ARP moly lube only
  • Precision cap alignment sleeves for positive rod cap location

Each set includes four connecting rods weight-matched to within 1 gram. Housing bore sizing is performed on precision Sunnen grinding systems for consistent tolerances. These rods are 100% machined, X-rayed, sonic-tested, and magnafluxed to ensure the highest quality standards. Recommended for extreme duty applications in Mazda MZR turbo engines including Mazdaspeed 3, Mazdaspeed 6, and CX-7 performance builds.
