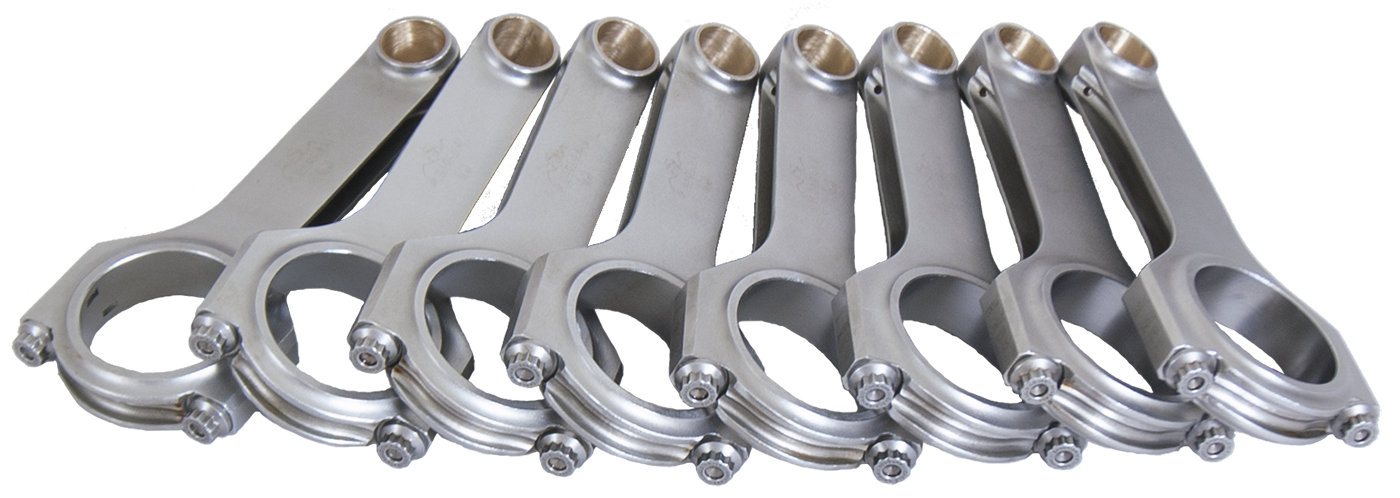

Eagle CRS5850S3D H-Beam Connecting Rods for Chevy Small Block 5.850 Length

Maximize your engine's performance with the Eagle CRS5850S3D H-beam connecting rod set, engineered specifically for Chevy small block engines. These high-performance connecting rods are forged from vacuum-degassed SAE 4340 steel for exceptional strength and durability while maintaining a lighter weight than stock rods.

Construction and Quality:

• Two-piece forged 4340 certified steel construction
• Multi-stage heat treatment for optimal strength
• 100% machined and shot-peened surface finish to stress-relieve the metal
• X-rayed, sonic-tested, and magnafluxed for quality assurance
• Weight matched to +/- 1 gram for perfect balance
• Sizing performed on Sunnen Krossgrinding system for precise housing bore

Specifications:

• Center-to-center length: 5.850 inches
• Rod journal diameter: 2.000 inches
• Housing bore: 2.125 inches
• Pin size: 0.928 inches
• Big end width: 0.94 inches
• Pin end width: 1.06 inches
• Typical weight: 645-650 grams per rod
• 7/16 inch ARP 8740 rod bolts (190,000 psi rated)

Features:

• Precision cap alignment sleeves for positive rod cap location
• Silicon bronze bushings for full-floating piston pins
• Suitable for engines up to 750 horsepower
• Includes rod bolt lubrication and installation instructions

These Eagle H-beam connecting rods deliver the strength and reliability needed for high-performance street, strip, and racing applications.
