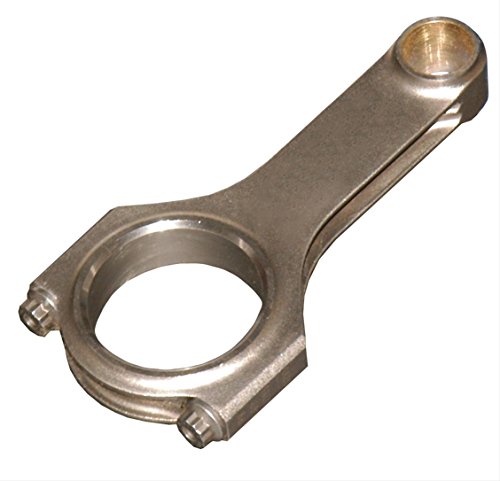

Eagle CRS5590T3D-1 H-Beam Connecting Rod for Toyota 2JZ Engine

Manufacturer

Part Number

CRS5590T3D-1
Black Friday Price

$131.77

Estimated ship date Friday, December 04

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Eagle CRS5590T3D-1 is a premium forged 4340 steel H-beam connecting rod designed specifically for Toyota 2JZ and 2JZGTE engines. This single rod features Eagle's renowned ESP (Eagle Specialty Products) construction methodology, utilizing a two-piece forging process that forces the steel grain into the optimal shape for superior fatigue life and strength.

Construction and Materials:

  • Forged from vacuum-degassed SAE 4340 steel for exceptional strength-to-weight ratio
  • H-beam design provides maximum rigidity while minimizing rotating mass
  • Multi-stage heat treatment process for optimal material properties
  • 100% machined surface with shot-peening for stress relief
  • Each rod undergoes X-ray, sonic testing, and magnaflux inspection

Technical Specifications:

  • Center-to-center length: 5.590 inches
  • Big end bore diameter: 2.1667 inches (rod journal: 2.047 inches)
  • Pin end bore diameter: 22.000mm (0.866 inches)
  • Big end width: 1.020 inches
  • Pin end width: 1.000 inches
  • Approximate weight: 590 grams
  • Rod bolts: 3/8-inch ARP 2000 alloy with 200,000 psi tensile strength
  • 12-point bolt head style for precise torque application
  • Recommended torque: 43 ft-lbs with ARP moly lube only

Performance Features:

  • Bushed for full-floating piston pin configuration
  • Precision cap alignment sleeves ensure positive rod cap location
  • Cap screw retention style for maximum clamping force
  • Sunnen Krossgrinding system ensures perfect housing bore tolerances
  • Rated for competition use up to 750-900 horsepower (application dependent)
  • Maximum RPM rating: 8,500 RPM

This single connecting rod is ideal for engine builders who need a replacement rod or are assembling custom combinations. Weight matching can be specified when ordering to match existing rods in your build. The rod comes with ARP 2000 bolts and proper lubrication instructions for installation.
