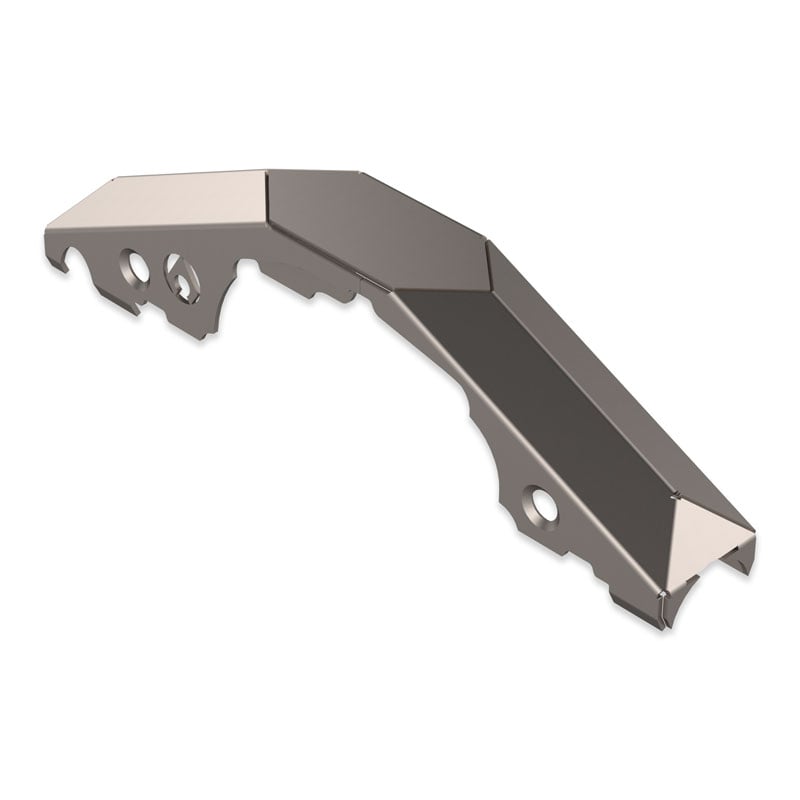

The Artec Industries TR1004 Sterling Rear APEX Short Truss represents a revolutionary advancement in axle reinforcement technology, featuring a patent-pending peaked top design that delivers superior strength while reducing weight and installation complexity. This precision-engineered truss transforms your Sterling 10.25 or 10.5 axle into a bulletproof foundation for extreme off-road use.
Revolutionary APEX Design:
The breakthrough peaked top profile provides exceptional rigidity compared to traditional flat-top trusses while eliminating long weld seams that can cause warping and inconsistent results. This innovative design allows you to simply drop the truss onto your axle and weld it in place—no puzzle-piece assembly required. With 70% less welding needed than conventional designs, you'll experience faster installation, reduced heat distortion, and lower overall costs.
Precision Engineering:
CNC laser cut and precision bent in-house from 3/16 inch mild steel, this truss weighs just 13 pounds while delivering maximum strength. Artec designed this component using 3D models sourced directly from Ford and Jeep, ensuring exceptional fitment and proper clearance with surrounding components. The form-fitting contours match the cast steel differential housing perfectly for seamless integration.
Key Features:
- Patent-pending APEX peaked top design provides superior rigidity over flat-top configurations
- CNC laser cut from 3/16 inch mild steel—weighs only 13 lbs
- CNC precision bent for drop-in fitment with no assembly required
- 70% less welding required compared to previous truss designs
- All long seams are pre-bent to eliminate time-consuming welding
- Strategic dimpled holes reduce weight while increasing rigidity and strength
- Low profile design allows link joints to mount at ideal geometry approximately 9 inches from axle centerline
- Compatible with leaf spring suspensions or can serve as mounting base for link suspension
- Two-piece design reduces shipping costs and simplifies installation
- Designed to accommodate upper link mounting over the differential
- Overall length: 27.29 inches
Compatibility:
Fits Sterling 10.25 and 10.5 axles with centered differential. Also compatible with Sterling 9.75 inch axles with minor trimming. This truss is the foundation of Artec's APEX 1-ton swap kits for Jeep JK, JL, and JT platforms.
Installation Note:
This truss is precision-fitted to the contours of Sterling axle castings. Due to manufacturing variances in castings over different production years, some trimming of the truss or non-essential casting sections may be necessary. Installation requires competent welding skills and fabrication experience. MIG welding is suitable with proper pre-heating and post-heating procedures.
Important: Professional installation recommended. Requires general welding and fabrication skills. Artec Industries provides no warranties for improper installation. Some grinding and fitment adjustment may be required as each axle varies slightly.
