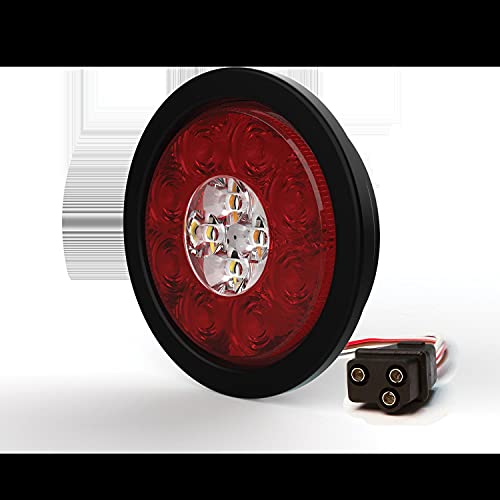

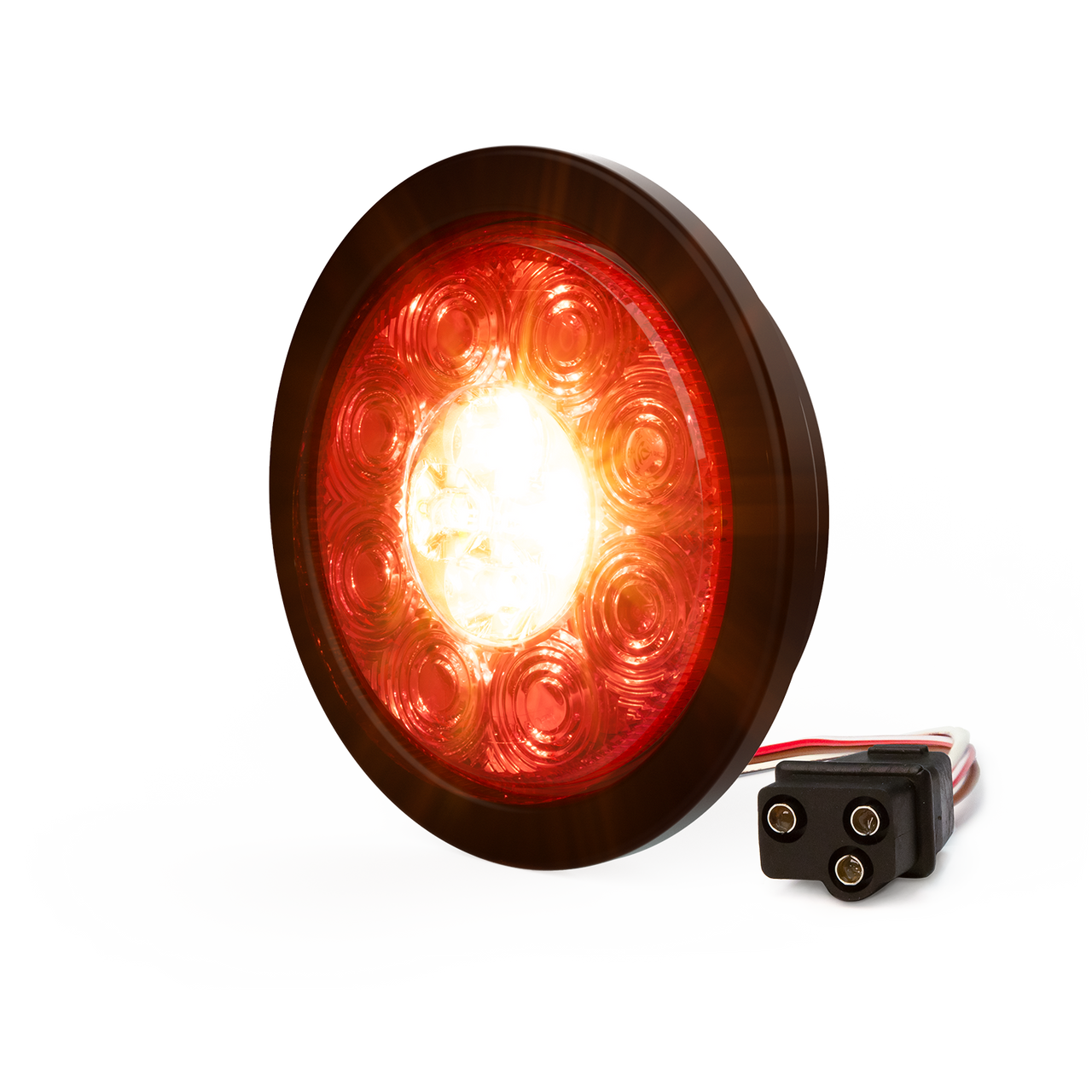

ECCO Lighting ED3040AW 4" Round LED Stop Tail Turn Reverse Warning Light

The ECCO Lighting ED3040AW is a versatile multifunctional LED combination light that consolidates stop, tail, turn, reverse, and warning functionality into one compact 4-inch round housing. Part of the ED3000 Series, this low-profile light maximizes visibility on the back of work trucks, service vehicles, utility trucks, trailers, and heavy equipment.

Multi-Function Capability:

• Red perimeter LEDs provide stop-tail-turn signals with steady burn operation
• Clear center section functions as reverse light with white steady burn
• Integrated dual-color warning light delivers 69 attention-grabbing flash patterns in amber and white
• Warning mode activates when auxiliary lights are triggered for enhanced visibility

Rugged Construction:

• Ultrasonically sealed housing prevents moisture ingress
• Tough polycarbonate lens resists wear from vibration and heavy use
• IP67 and IP69K rated for protection against dust and high-pressure washdown
• Vibration and shock resistant design built for extreme working conditions

Specifications:

• Voltage: 12-24V DC multivolt operation
• Current draw: 1.1A
• Overall diameter: 4 inches (5.4 inches with grommet)
• Depth: 5.375 inches
• Approvals: SAE Class I, CA T13, DOT, R10, RoHS compliant
• Connection: Female PL3 connector included
• Mounting: Grommet mount included for standard 4-inch taillight applications; flange mount option available separately

High-output LEDs deliver long service life, low maintenance requirements, and minimal current consumption. Backed by a 5-year warranty, this economical all-in-one solution simplifies installation and meets safety requirements for municipal fleets, construction equipment, and commercial vehicles.
