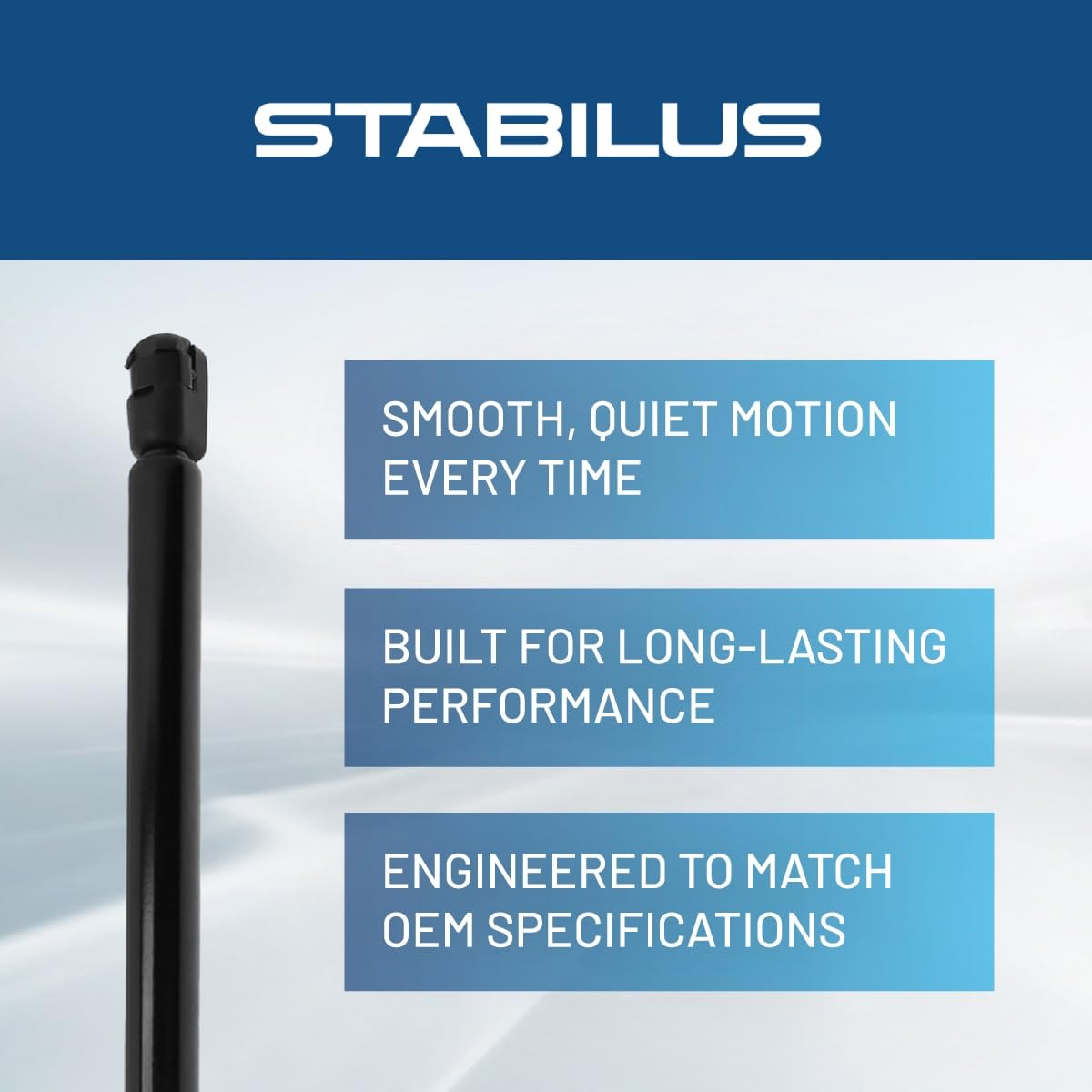

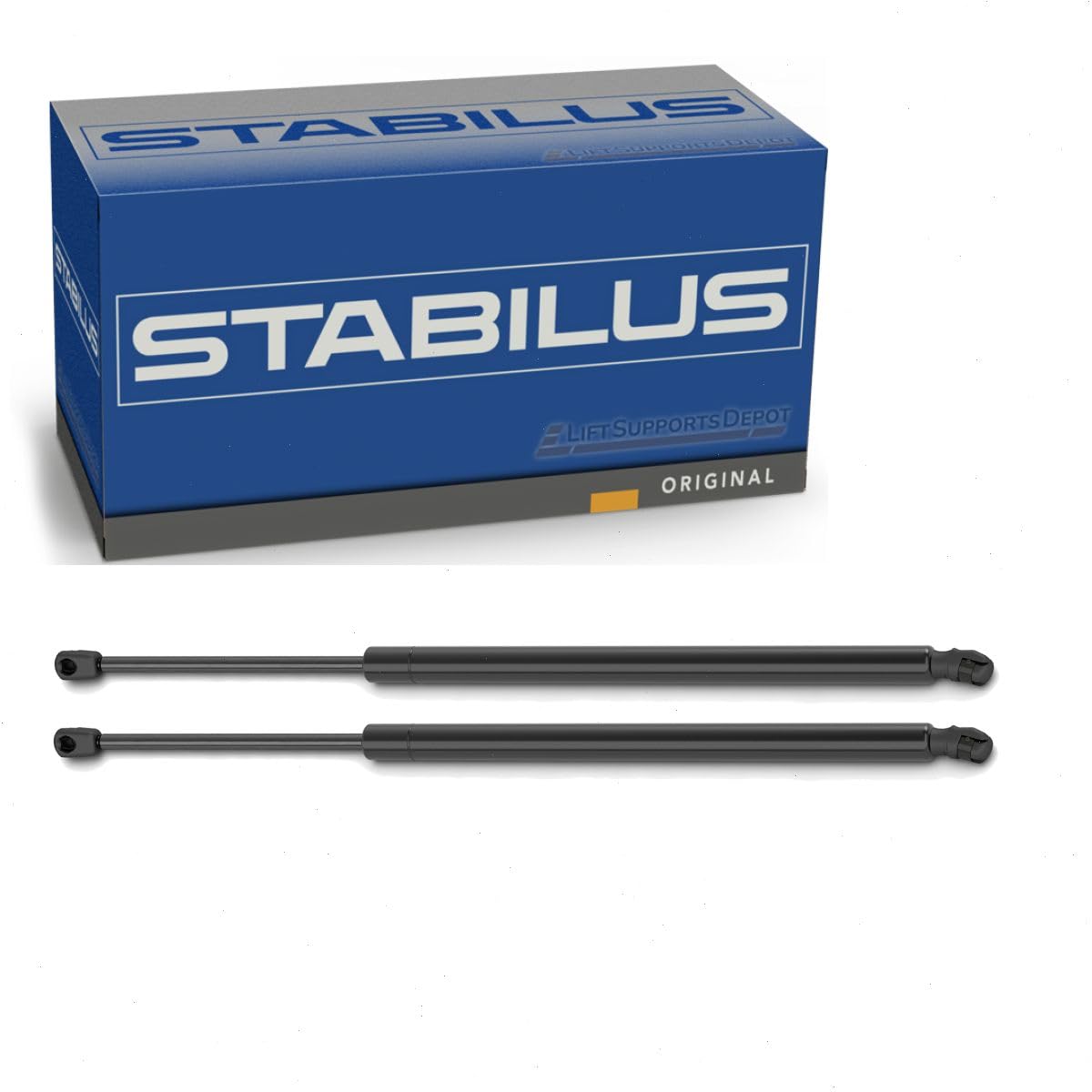

Stabilus 125238 Liftgate Lift Support Gas Spring

The Stabilus 125238 LIFT-O-MAT gas spring is a high-quality liftgate lift support designed to provide smooth, controlled operation for hatch and tailgate applications. This gas spring features an extended length of 599mm, a stroke of 194mm, and delivers 550 Newtons of extension force, ensuring reliable performance for years to come.

Key Features:

• 550 Newton (123 lbs) extension force for optimal counterbalancing

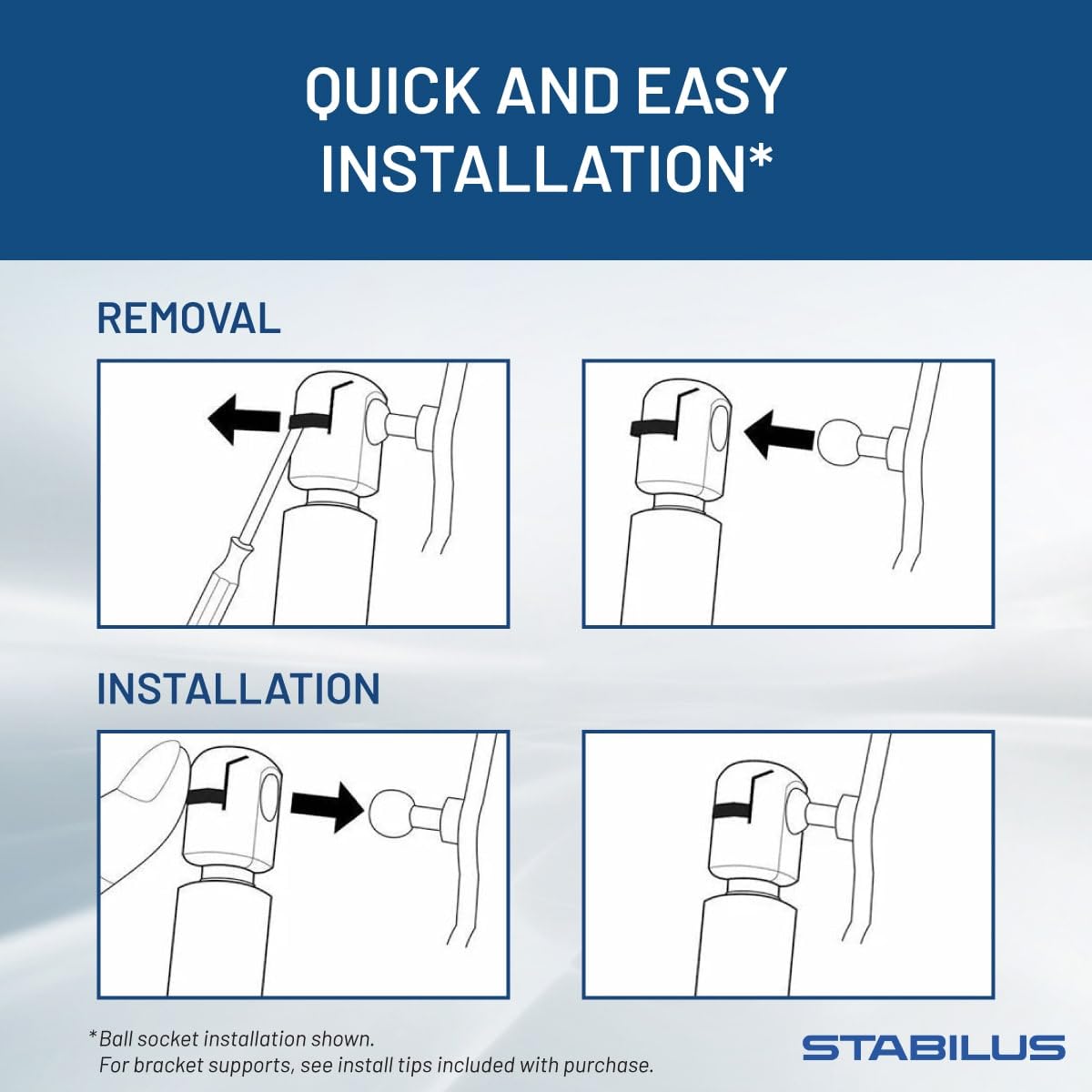

• Ball socket U-band nylon end fittings (10mm/3/8") for easy installation
• Maintenance-free operation - no oils or greases required
• Compact design for minimal space requirements
• Temperature-compensating design for reliable operation in all conditions
• Black powder-coated finish for corrosion resistance

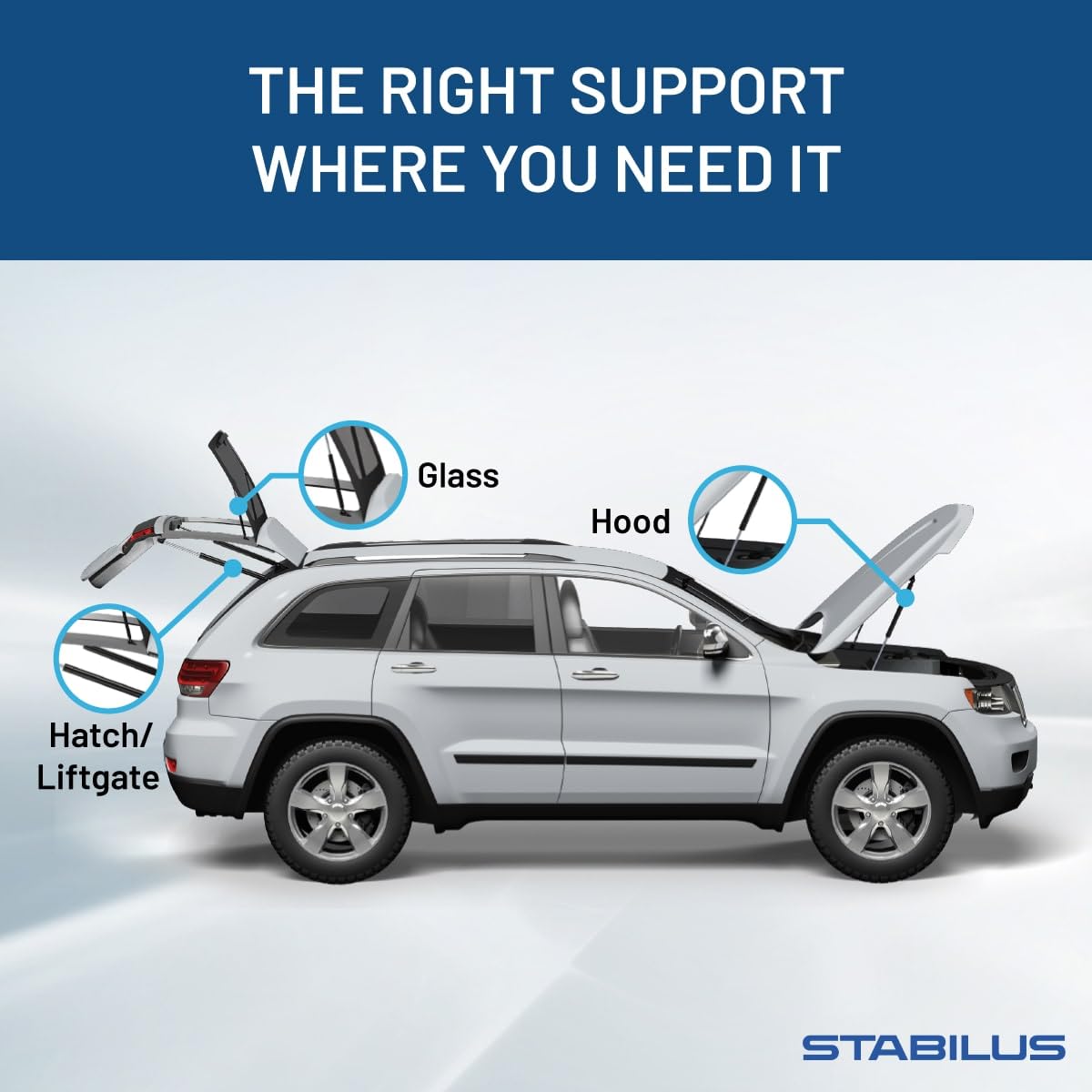

Stabilus gas springs ensure safe, comfortable, gentle gliding during opening, positioning, and closing of your vehicle's liftgate. As a global leader in motion control technology, Stabilus manufactures precision-engineered gas springs using hydropneumatic technology with nitrogen gas-filled pressure tubes for consistent, reliable performance.

Specifications:

• Manufacturer Part Number: 125238
• Stabilus Serial Number: 0081ZJ
• Extended Length: 599mm (23.6")
• Stroke: 194mm (7.64")
• Force: 550 Newton
• End Fittings: Ball Socket, 10mm (3/8"), 16° Angle
• Finish: Black

Cross-Reference Numbers: 5178293AC, 68101213AA, K68101213AA, 4B-125238, 140059, SG314062
