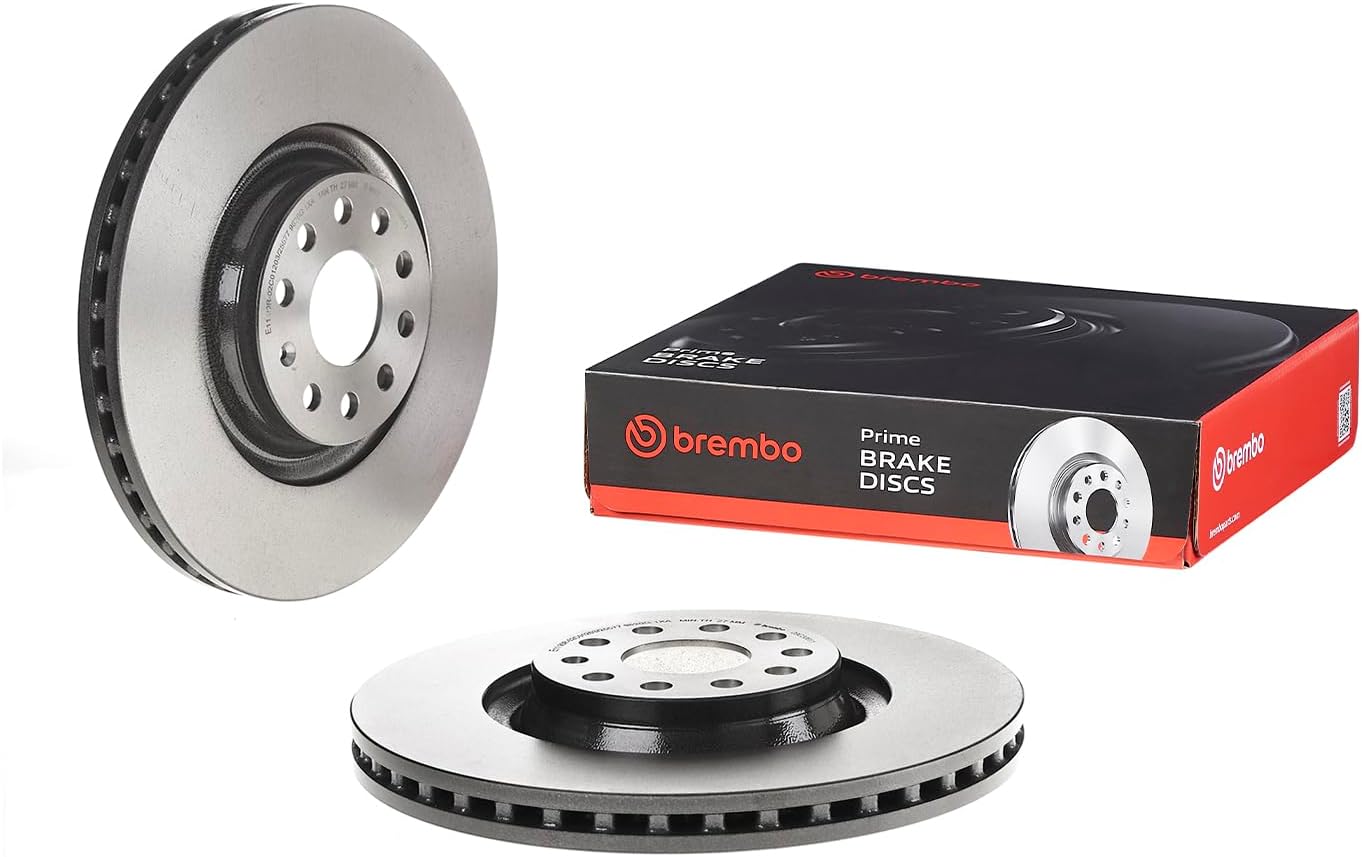

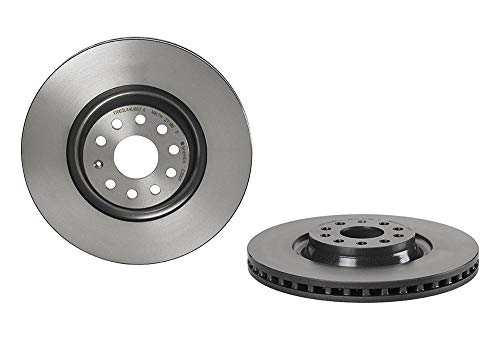

Brembo 09.C306.11 UV Coated Front Brake Rotor Pillar Vented - 340mm

The Brembo 09.C306.11 is a premium UV coated front brake rotor designed as a direct OEM replacement that meets or exceeds original equipment specifications. This 340mm diameter rotor features advanced pillar ventilation technology and an environmentally friendly protective coating for superior performance and longevity.

Advanced UV Coating Technology:

This rotor features Brembo's innovative solvent-free UV coating that provides superior corrosion protection for the entire disc, including the braking surfaces, outer edges, and hub. The water-based UV coating process is energy-efficient and environmentally friendly, requiring no chemical solvents while delivering exceptional rust resistance that exceeds OEM standards.

Key Features:

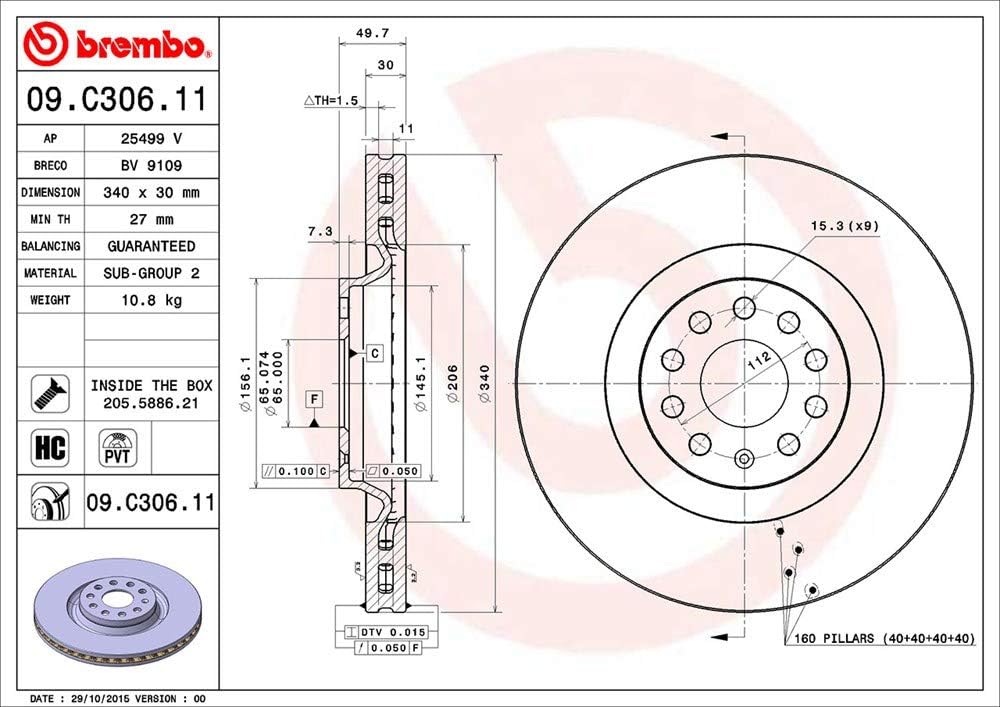

• 340mm diameter x 30mm thick pillar vented design for optimal heat dissipation
• High carbon cast iron construction minimizes noise and vibration
• PVT (Pillar Vented Technology) improves cooling and increases resistance to thermal cracking by over 40%
• 5-bolt mounting pattern with 65mm center bore and 112mm bolt circle diameter
• Minimum thickness: 27mm for safe rotor life monitoring
• Intelligent marking location displays part number and minimum thickness for easy inspection
• Includes fixing screw kit with all necessary hardware for installation
• ECE R-90 certified for safety and quality assurance

What's Included:

• One front brake rotor
• Fixing screw kit with mounting hardware

Ready to install right out of the box with no surface preparation required. For optimal braking performance, Brembo recommends replacing rotors and brake pads together. Pair with Brembo NAO/Ceramic or Low-Met brake pad formulations for maximum effectiveness. Cross-references to OEM part numbers including 1K0615301AD and 8S0615301.
