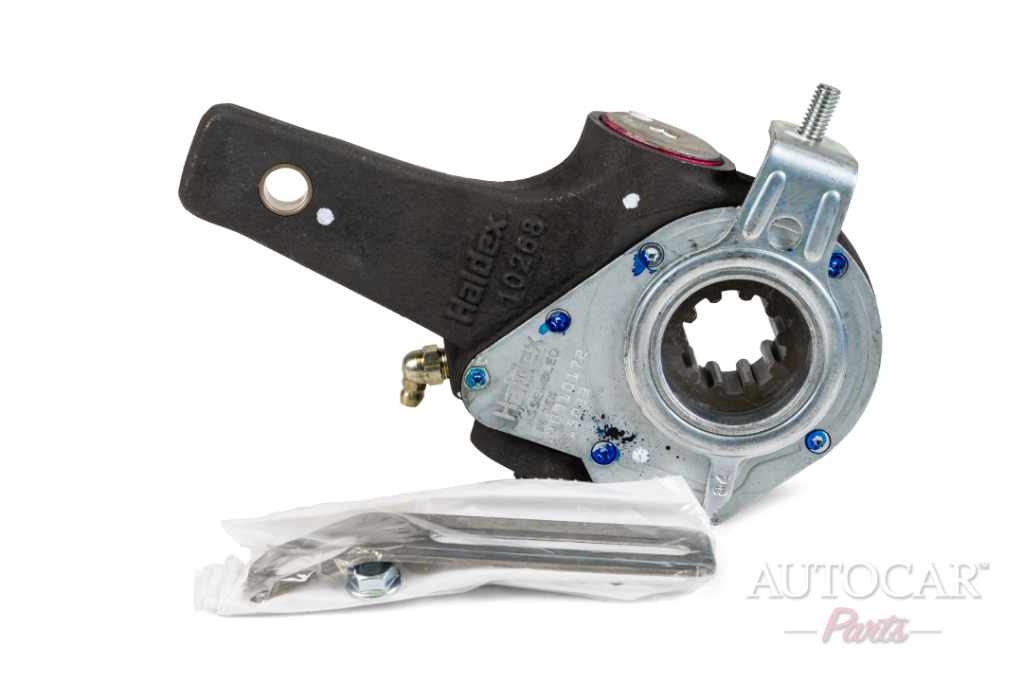

Haldex 40010013 Automatic Slack Adjuster Spline Arm - 1.25 10 5.5

The Haldex 40010013 AA1 Clearance Sensing Automatic Slack Adjuster makes consistent and precise gradual adjustments for optimum lining-to-drum clearance. Acting as a lever, this automatic slack adjuster connects the actuator or spring brake chamber to the camshaft, compensating for the gradual wear and tear of the brake drum and shoe lining while keeping pace with the actuator's stroke.

Key Specifications:

• Spline: 1.25 inch diameter, 10 spline
• Arm Length: 5.5 inches (measured from cam center to yoke pin center)
• Arm Hole Diameter: 1/2 inch
• Body Angle: 0 degrees
• Anchor Bracket: Strap style
• Application: Non-standard steer axle brakes

Features:

• Clearance Sensing technology keeps brakes unaffected by deflection or thermal expansion
• Compatible with all major brand clevises
• Service kit includes slack adjuster, anchor bracket kit, and installation instructions
• Backed by 6 year, 1 million mile warranty

Haldex is a Sweden-based manufacturer specializing in brake and air suspension systems for heavy duty vehicles. This automatic slack adjuster is designed to maintain proper brake adjustment automatically, reducing maintenance requirements and ensuring consistent braking performance for commercial trucks and buses.
