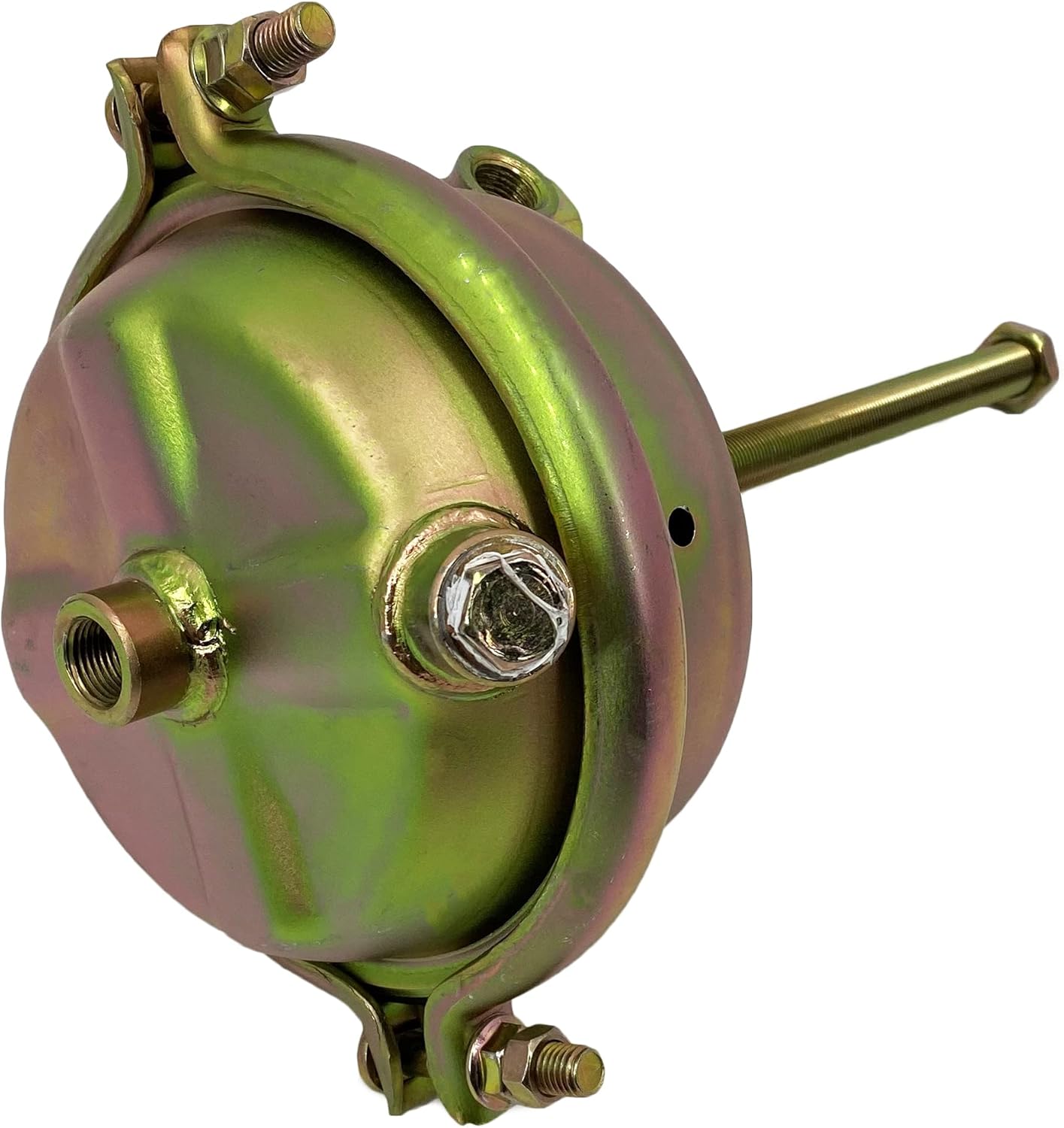

Haldex SC20 Type Service Brake Chamber - 20

Part of: Haldex Type Service Brake Chamber

Other options in this family: Haldex SC16

Manufacturer

Part Number

SC20
Sale Price

$40.94

In Stock (7)

delivery box

Usually delivered within 2 days

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Haldex SC20 is a Type 20 service brake chamber designed for commercial trucks, buses, and heavy-duty vehicles. This air brake actuator converts compressed air pressure into mechanical force to effectively engage the vehicle's braking system, providing reliable stopping power for commercial applications.

Key Features:

  • Type 20 chamber with 2.25-inch standard stroke length
  • Steel pressure housing with powder-coated finish and resistance-welded air ports for durability
  • High-quality rubber diaphragm compound resistant to heat and cold, maintaining flexibility even at -40°F
  • Sturdy service housing with powder-coated corrosion-resistant finish and 12-gauge steel step bottom
  • Self-piloting dust shield for extended service life
  • 3/8-18 NPTF inlet port threads with 90-degree air port position
  • Maximum operating pressure of 150 PSI
  • 4.75-inch stud spacing with 5/8-11 UNC mounting studs
  • 10.15-inch pushrod length with 5/8-18 UNF threads

Specifications:

  • Chamber type: T20
  • Service stroke: 2.25 inches (57mm)
  • Length from mounting bracket to spring housing end: 4.0 inches (102mm)
  • Dimension at service clampband: 8.6 inches (218mm)
  • Service force: 1,850 lbs at 100 PSI

This service chamber replaces Haldex part numbers 2000001, 52000001, and Midland MA36200, as well as numerous OEM and aftermarket part numbers including Bendix 802990, 800824, Mack 19QE465RP3, and Velvac 030017.
