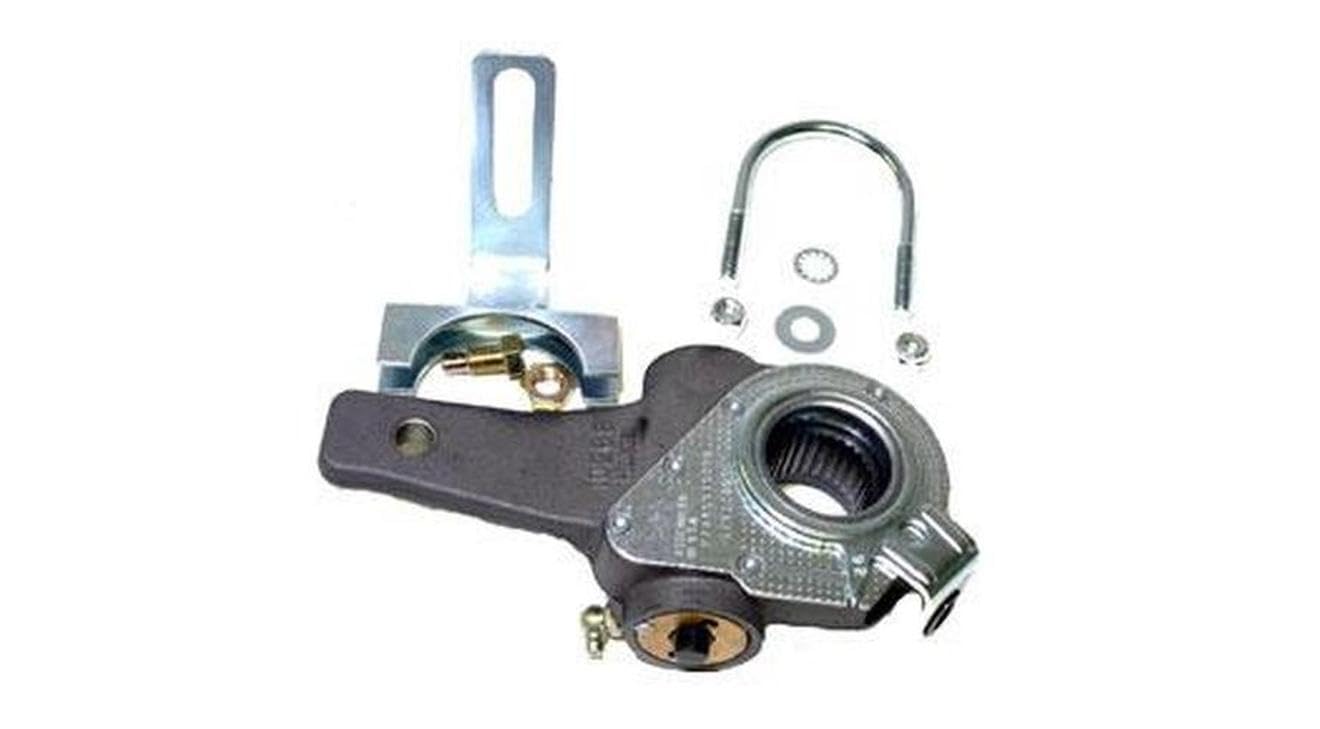

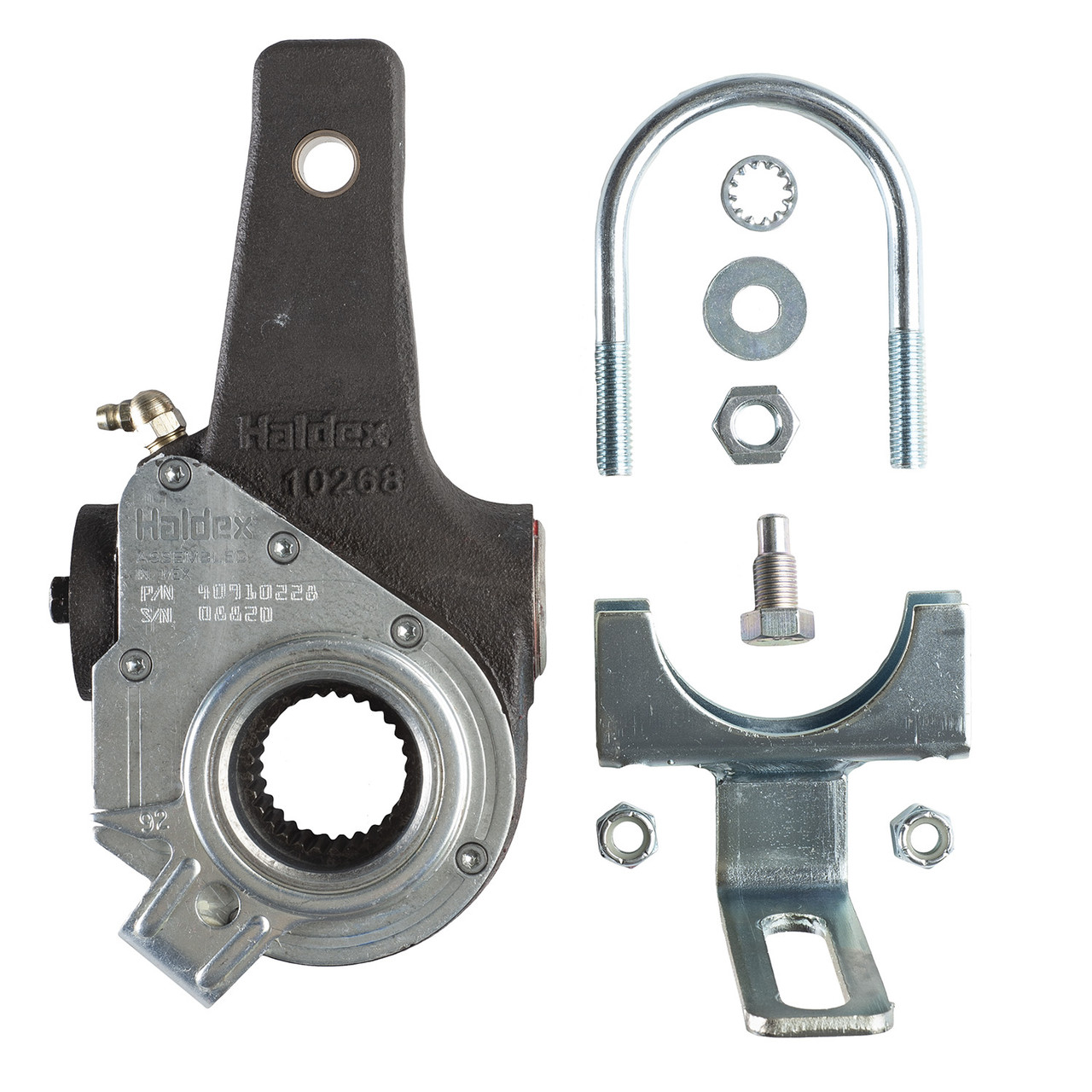

Haldex 40010081 Automatic Brake Adjuster ABA Service Kit 1-1/2"-28 Spline 5-1/2" Arm

The Haldex 40010081 is an ABA (Automatic Brake Adjuster) service kit designed for non-standard steer axle applications on heavy-duty commercial vehicles. This automatic brake adjuster ensures optimal brake performance and compliance with safety standards, automatically maintaining proper brake adjustment to eliminate manual slack adjuster maintenance.

Key Specifications:

• 1-1/2"-28 spline diameter and spline count
• 5-1/2 inch arm length
• 0 degree body angle with no offset
• 1/2 inch arm hole diameter
• Clamp-style anchor bracket
• Complete service kit includes bracket kit

Features and Benefits:

• Compatible with all major brand clevises
• Features more gradual adjustment than competing designs, virtually eliminating the risk of dragging brakes
• Works properly at any angle for easier installation
• Engineered with precision and high-quality materials for long service life
• Reduces maintenance costs and downtime
• Made in USA

This automatic slack adjuster is specifically engineered for non-standard steer axle configurations where standard adjusters won't fit properly. The self-adjusting mechanism maintains optimal brake shoe-to-drum clearance throughout the life of the brake linings, ensuring consistent stopping performance and reducing the need for manual brake adjustments.
