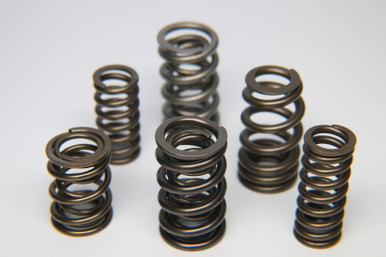

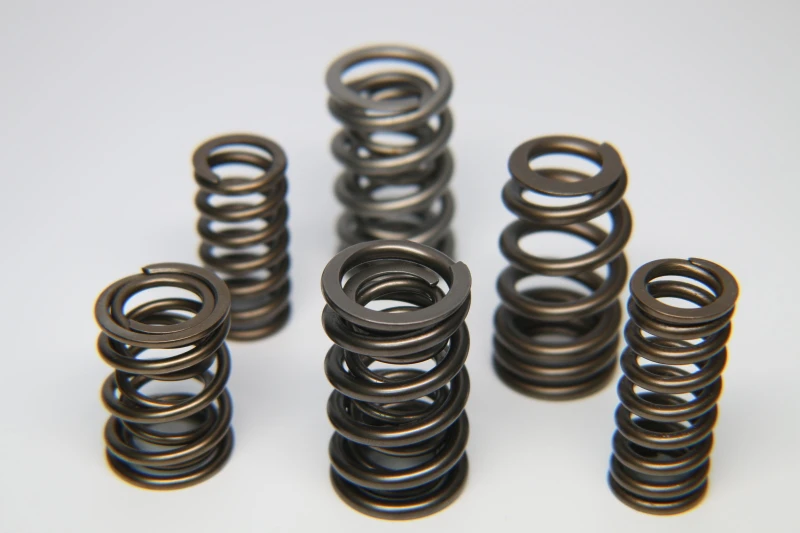

Ferrea S10047-1 Dual Valve Spring Turbo Performance Spring

Manufacturer

Part Number

S10047-1
Sale Price

$29.96

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Ferrea S10047-1 is a high-performance dual valve spring engineered for turbocharged applications on Geo Metro and Suzuki Swift 1.0L SOHC 6-valve (G10) engines from 1995-2001. Manufactured from premium-grade special alloy steel, this racing-quality valve spring is designed to handle the increased demands of forced induction and high-RPM operation.

Key Specifications:

  • Spring Type: Dual spring design with turbo rating
  • Outer Diameter: 24.70mm (installed) / 18.23mm
  • Inner Diameter: 18.23mm / 13.40mm
  • Seat Pressure: 70 lbs at 35.5mm
  • Open Pressure: 175 lbs at 25.5mm
  • Maximum Pressure: 266 lbs at 14mm
  • Material: Special alloy steel with heat treatment

Features and Benefits:

  • Heat-treated and stress-relieved construction for extended service life
  • Controls harmonic vibrations that can destroy valvetrain components
  • Provides stability needed for high-lift, high-RPM racing applications
  • Minimizes load loss for aggressive valvetrain combinations
  • Race-proven design trusted by engine builders for nearly 50 years

Required Components: This spring requires Ferrea Titanium Retainer part number E11024 and Ferrea Spring Seat Locator part number SL1018. The OEM factory-supplied spring seat locator must be discarded when installing this performance spring.

Ferrea valve springs are manufactured using premium-grade chrome silicon steel alloys and undergo special thermal treatment processes that ensure uniform load characteristics and exceptional durability under the extreme conditions of racing and turbocharged applications.
