Ferrea S10056-1 Dual Valve Spring VW Audi 1.8T 20V Turbo Exhaust

Manufacturer

Part Number

S10056-1
Black Friday Price

$32.43

Estimated ship date Monday, November 30

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

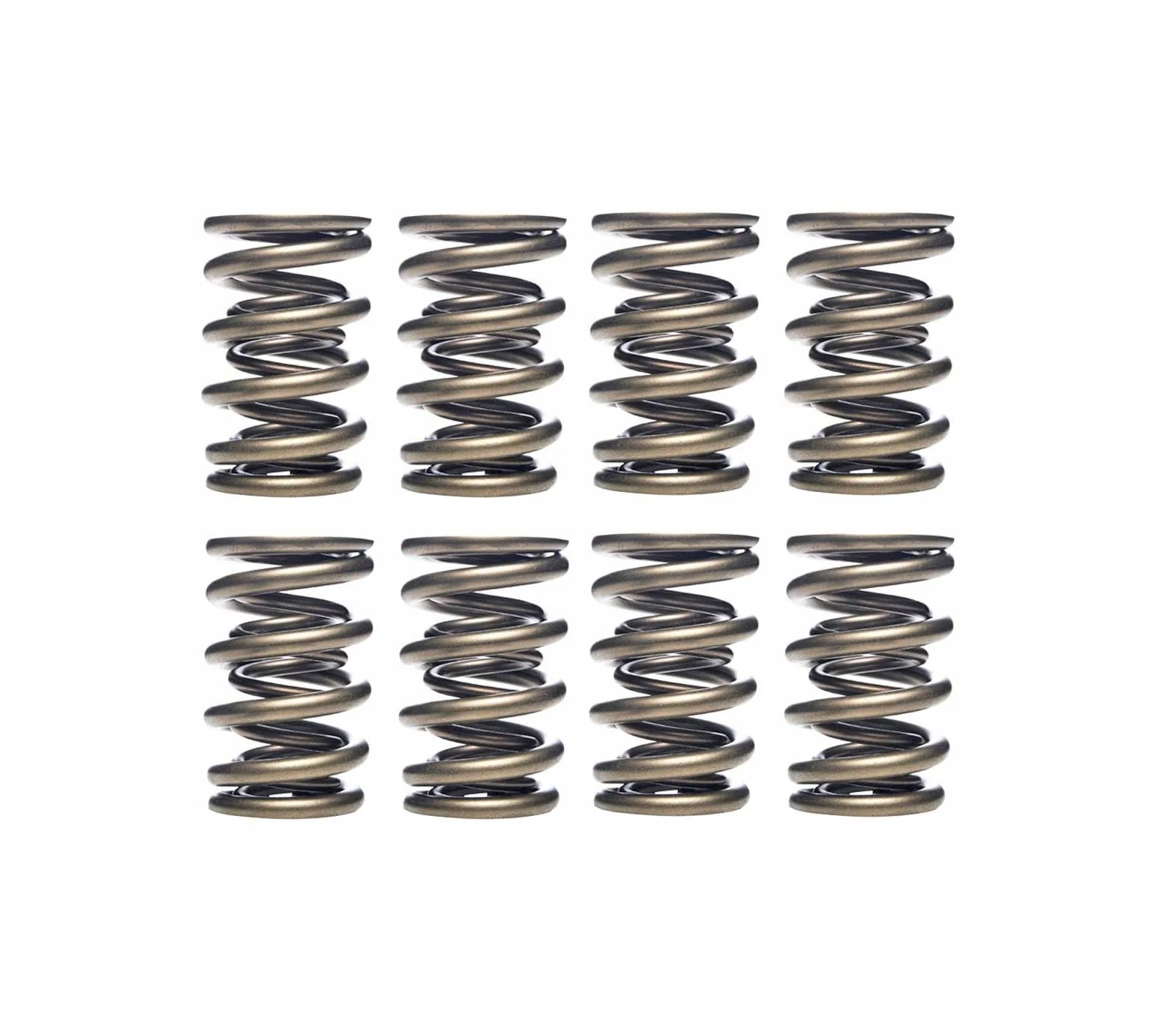

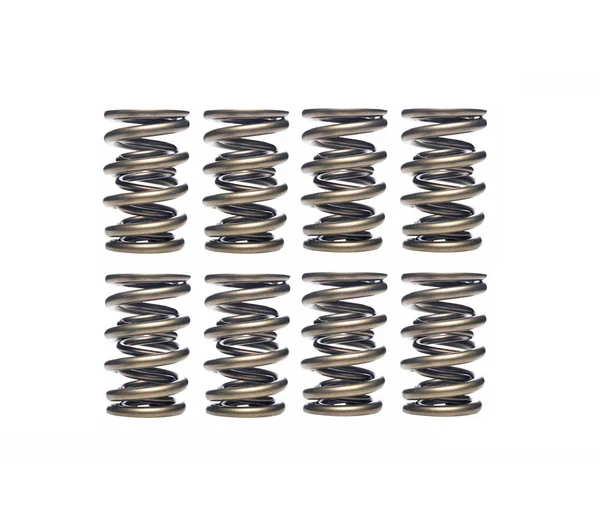

The Ferrea S10056-1 is a high-performance dual exhaust valve spring designed specifically for Volkswagen and Audi 1.8T 20V turbocharged engines. This racing-grade spring is engineered to control harmonics and high-frequency fatigue that can destroy valvetrain components in high-performance applications.

Technical Specifications:

  • Outside Diameter: 22.75mm (inner) / 29.5mm (outer)
  • Inside Diameter: 17.1mm (inner) / 22.75mm (outer)
  • Seat Pressure: 80 lbs @ 32.5mm
  • Open Pressure: 180 lbs @ 22.5mm
  • Spring Rate: 254 lbs/inch
  • Coil Bind: 20mm
  • Maximum Net Lift: 12mm
  • Material: Premium grade chrome silicon steel alloy

Key Features:

  • Dual spring design with heavier outer spring and lighter inner spring for enhanced control and stability
  • Heat-treated and stress-relieved construction dramatically increases spring life
  • Manufactured with state-of-the-art equipment to exact tolerances
  • Strict quality control and cycle testing ensures batch-to-batch consistency
  • Provides stability needed for high-lift, high-RPM racing engines while minimizing load loss

Required Components: This spring requires Ferrea Titanium Retainer #E11032 and Ferrea Spring Seat Locator #SL1026 for proper installation. OEM factory spring seat locator must be discarded.

Ideal for turbocharged performance builds, competition applications, and aggressive camshaft combinations where valvetrain stability is critical. Sold individually for exhaust valve replacement.
