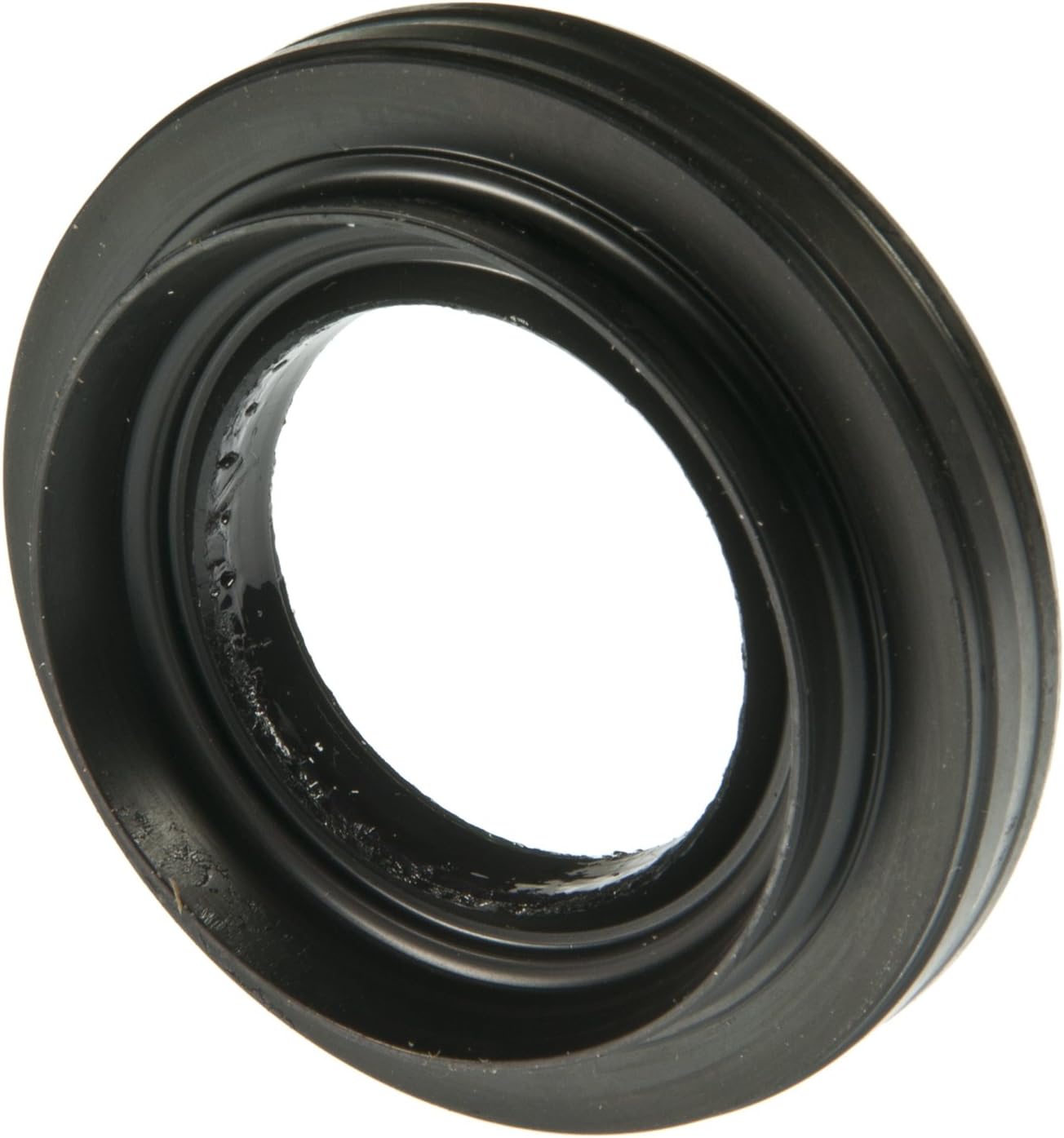

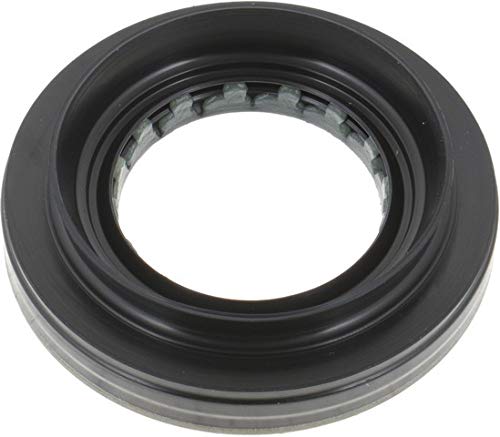

NTN NS710633 Automatic Transmission Output Shaft Seal

The NTN NS710633 is a precision-engineered automatic transmission output shaft seal designed to prevent fluid leaks and protect transmission components from contamination. This seal is specifically designed for the right/passenger side position in vehicles equipped with Jatco JF011E transmissions.

Technical Specifications:

• Inside Diameter: 1.299 inches
• Outside Diameter: 2.331 inches
• Seal Width: 0.366 inches
• Housing Bore: 2.323 inches
• Position: Right/Passenger Side

Key Features:

• Dynamic Edge technology generates a pumping action to actively deflect dirt, moisture, and contaminants
• Premium material construction for superior durability and long service life
• Integral sinusoidal wave design moves contaminants away from the seal
• Prevents premature seal and bearing damage
• Engineered to meet or exceed OEM specifications

National (NTN) has manufactured premium sealing solutions for over 75 years, maintaining a reputation as one of the most trusted names in automotive seals and bearings. This output shaft seal delivers reliable performance in demanding transmission applications.
