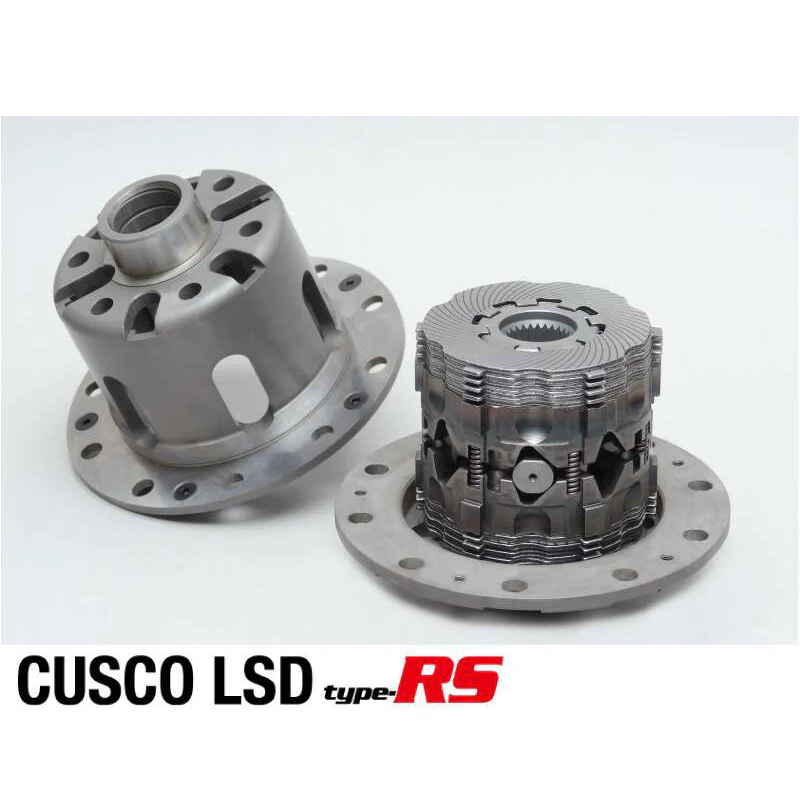

Cusco LSD 194 F Type RS 1-Way Limited Slip Differential

The Cusco LSD 194 F is a Type RS 1-Way limited-slip differential engineered specifically for front-wheel-drive and all-wheel-drive front axle applications. Designed for Toyota vehicles equipped with the 2ZR-FAE engine including the Corolla, Yaris, and Auris, this C-Size differential is compatible with both CVT and 6-speed manual transmissions.

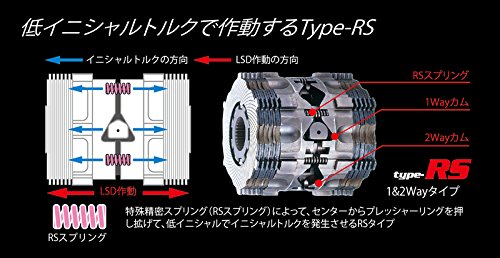

Type RS Technology:

The Type RS series features Cusco's innovative spring-based design that sets it apart from traditional cone-plate limited-slip differentials. The RS springs sit inside the pressure rings and apply constant pressure against the clutch plates, providing consistent initial torque while minimizing chatter and extending clutch plate life. This design offers lower friction compared to cone-type LSDs, resulting in better response and more efficient power transfer to the ground.

Key Features:

• 1-way locking mechanism optimized for front-wheel-drive applications
• Adjustable initial torque range of 3-5 kgfm
• Includes 8 springs with capacity for up to 12 springs for customization
• Dual cam angle configuration: 35/0 degrees and 45/0 degrees
• Oil-through system design for superior lubrication and cooling
• Lower initial torque setting reduces power loss for improved lap times
• Reduced clutch plate pressure extends differential life and reduces maintenance

1-Way Operation:

The 1-way configuration activates under acceleration to maximize traction and distribute power evenly between the front wheels. When off-throttle, it functions as an open differential, allowing smooth corner entry and natural turning characteristics ideal for front-wheel-drive vehicles.

Performance Benefits:

Unlike standard open differentials that can lose power during challenging driving conditions, the LSD 194 F ensures efficient power transfer to both wheels regardless of surface conditions. The Type RS's gentle initial torque engagement provides smoother operation than traditional LSDs while maintaining excellent response and performance on both street and track applications.
