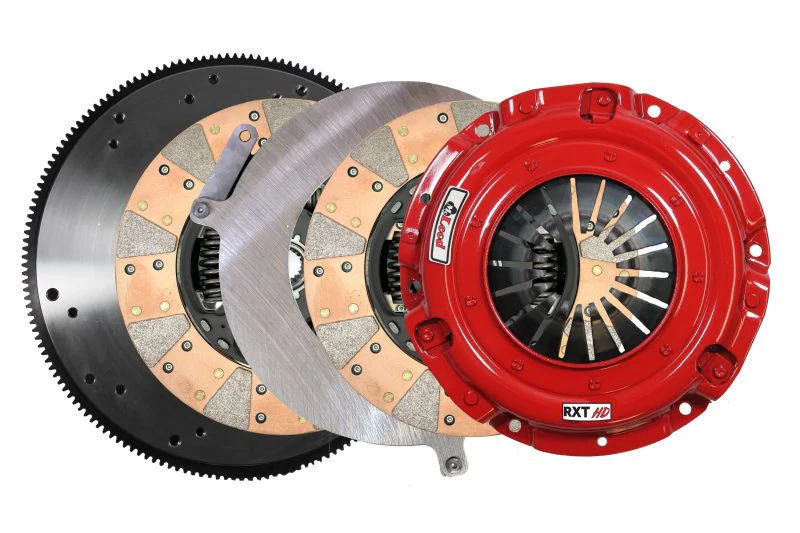

McLeod 6471207HD RXT1200 Twin Disc Clutch Kit with Steel Flywheel - Mazda 13B/20B Rotary to T56 1-1/8x26 Spline

(2004-2011 Mazda RX-8; 1979-1991, 1993-1995 Mazda RX-7; 1976-1978 Mazda Cosmo; 1972-1978 Mazda RX-3; 1971-1974 Mazda RX-2; 1974-1978 Mazda RX-4 + 2 more models)

Manufacturer

Part Number

6471207HD
Black Friday Price

$1,595.00

Estimated ship date Sunday, November 22

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The McLeod RXT1200 Twin Disc Clutch Kit (PN: 6471207HD) is a high-performance street/strip solution engineered to handle up to 1,200 horsepower while remaining fully street-drivable. Designed specifically for Mazda 13B and 20B rotary engines mated to a T56 transmission with a 1-1/8" x 26-spline input shaft, this complete kit includes a dedicated billet steel flywheel with a 125-tooth ring gear and 0-balance specification — everything needed for a true plug-and-play installation.

Key Features:

  • 1,200 HP rated twin disc clutch designed for demanding street/strip use
  • Ceramic-lined clutch discs with segmented design deliver smooth engagement and moderate pedal effort
  • Diaphragm-style pressure plate with heavy-duty (HD) pressure plate for increased clamping force over the standard RXT
  • Dedicated billet steel flywheel included — no need to source flywheel and clutch separately
  • 125-tooth ring gear with 0-balance specification for Mazda rotary applications
  • 1-1/8" x 26-spline input shaft compatibility for T56 transmission fitment
  • Solid hub disc design with RST/RXT bolt pattern
  • Alignment tool included for ease of installation
  • Hardware included
  • Made in the USA by McLeod Racing

The RXT1200 HD separates itself from the standard RXT with a red center plate and heavier pressure plate, providing greater clamping force and power capacity for builds pushing the limits of the rotary platform. The ceramic disc material is designed to withstand repeated hard launches on the drag strip while still offering the smooth, predictable engagement required for street driving.

This kit ships as a complete, dedicated unit — the clutch assembly and matched steel flywheel are supplied under a single part number, eliminating the guesswork of pairing components. The billet steel flywheel is the preferred choice for street and street/strip builds, offering consistent heat management and reliable engagement at stop-and-go speeds. McLeod Racing has manufactured performance driveline components since 1971 and is recognized as a leader in twin disc clutch technology.

Products specifications

Fits

2004-2011 Mazda RX-8; 1979-1991, 1993-1995 Mazda RX-7; 1976-1978 Mazda Cosmo; 1972-1978 Mazda RX-3; 1971-1974 Mazda RX-2; 1974-1978 Mazda RX-4; 1974-1977 Mazda Rotary Pickup; 1971-1972 Mazda R100

Pressure Plate Style

Diaphragm

Hardware Included

Yes

Engine

Mazda Rotary 20B

Engine Balance

Neutral

Flywheel Material

Steel

Hub Style

Solid

Ring Gear

125

Disc Material

CERAMIC

Throwout Bearing Style

Standard OEM

Alignment Tool Included

Yes

Make

Mazda

Disc Style

Segmented

Additional Counter Weight Kit Required

No

Disc Diameter

9.687In.

Horsepower Rating

1200

Number of Discs

Double

Flywheel Included

Yes

Clutch Patterns

RST/RXT Pattern

Clutch Usage

Street

Spline

1-1/8 x 26

Pilot Bushing Included

No

Throwout Bearing Included

No

Quantity

Sold as a kit.

Ring Gear Tooth Quantity

125-tooth

Input Spline Quantity

26

Clutch Disc Quantity

2

Disc Diameter (in.)

9-11/16"

Input Shaft Diameter (in.)

1-1/8"

Rebuild Service Available

Yes

Notes

Aftermarket Transmission
