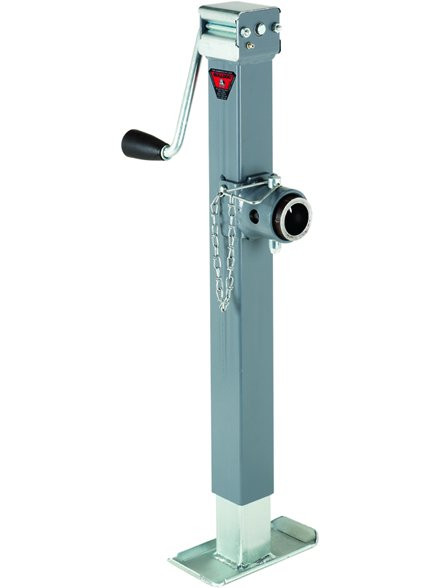

Draw-Tite 195356 Square Tube Trailer Tongue Jack Sidewind Swivel Mount 5000 lb

The Draw-Tite 195356 is a heavy-duty square tube trailer tongue jack engineered for superior side load strength and reliable performance. This sidewind jack features a robust 12-gauge square tube construction that is 70% stronger than comparable round tube jacks, providing exceptional support capacity while maintaining economical lift specifications.

Key Features:

• 5,000 lb maximum support capacity with 3,000 lb lift capacity
• 12-gauge square tube construction offers 70% more strength than round tube designs
• 15-inch travel range for versatile height adjustment
• Sidewind handle operation for convenient manual control
• Round tubular swivel mount with weld-on installation
• 4.62-inch outer tube overlap at full extension for enhanced side load strength
• Weather-resistant construction with painted outer tubes and clear zinc-plated inner tubes
• 3.8-inch x 7.5-inch disc foot for stable ground support

Specifications:

• Mounting tube outer diameter: 2 inches
• Mounting tube inner diameter: 1.5 inches
• Pin size: 5/8 inch
• Jack height (not extended): 24.4 inches
• Extended height: 30.1 inches (measured from center of mounting bracket)
• Retracted height: 15.1 inches (measured from center of mounting bracket)
• Mounting tube included for weld-on installation

This Bulldog-manufactured jack provides dependable strength and long-lasting durability with proven mechanical elements designed to withstand the rigors of trailer use. The square tube design delivers the extra side load capacity needed without the increased cost of higher overall capacity ratings, making it an ideal choice for both commercial and recreational trailer applications.
