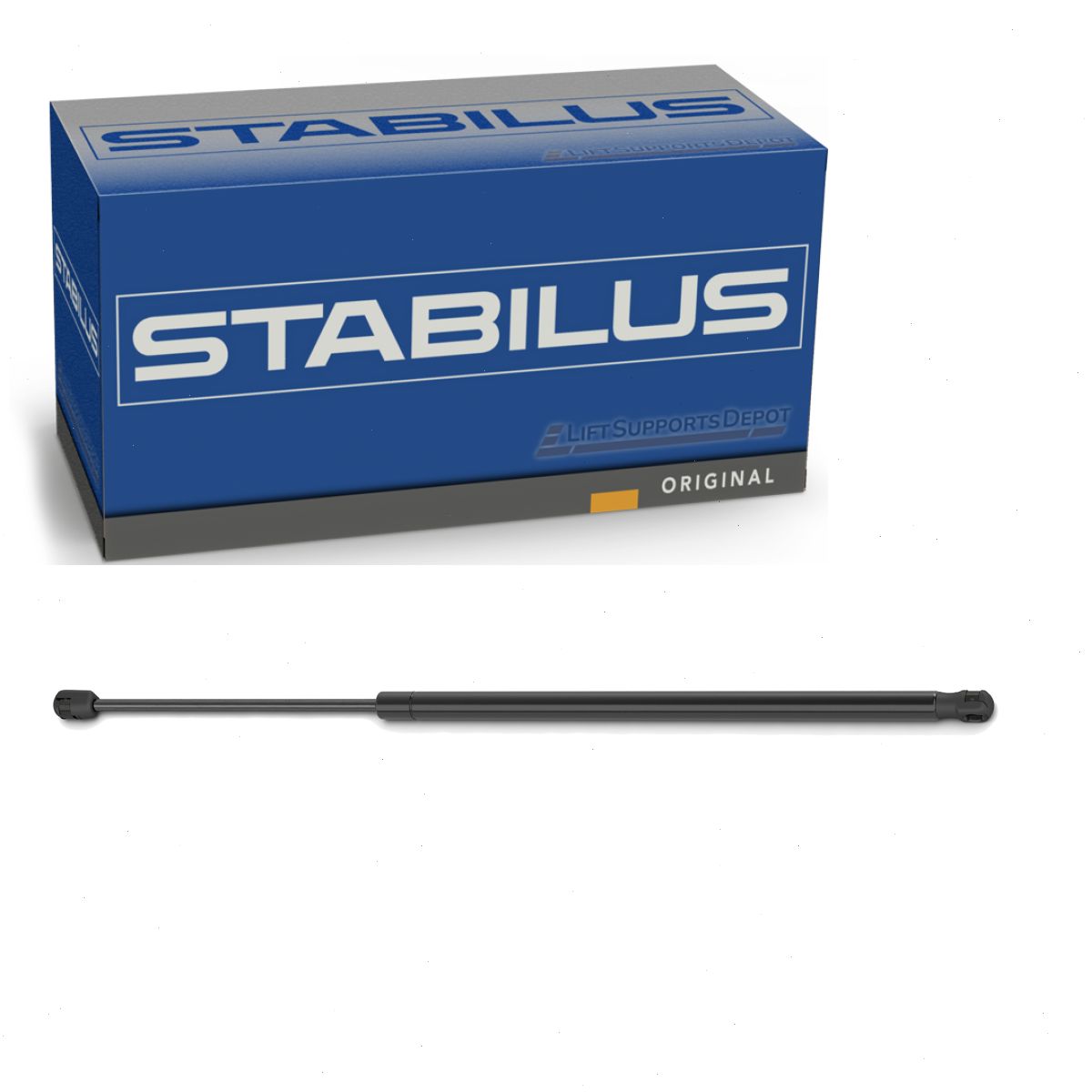

Stabilus 3B-048761 Universal Lift-O-Mat Gas Spring Support 26 Inch Extended 81 lbs Force

The Stabilus 3B-048761 is a premium universal Lift-O-Mat gas spring designed for multi-purpose applications including toolboxes, truck toppers, camper shells, storage lids, and other non-automotive lifting applications. This hydraulic lift support provides smooth, controlled lifting and lowering with 81 pounds of extension force.

Technical Specifications:

• Extended Length: 26.0 inches
• Compressed Length: 13.7 inches
• Extension Force: 360 Newtons (81 lbs)
• Tube Diameter: 19mm
• Rod Diameter: 8mm
• End Fittings: 10mm ball socket on both tube and rod ends

Key Features:

• Patented labyrinth piston design ensures smooth, clog-free operation throughout the entire stroke
• Hydraulic oil dampening system provides precise motion control during opening and closing
• High-quality construction with precision seal-guide system for long-lasting durability
• Universal ball socket end fittings allow flexible mounting options
• Nitrogen gas-filled pressure tube for consistent performance

As the world's leading manufacturer of gas springs and motion control products, Stabilus Lift-O-Mat supports are engineered to deliver reliable performance in demanding applications. The innovative oil channeling system maintains consistent damping force, while the proprietary piston design ensures proper operation at the end of each stroke.

Interchangeable Part Numbers: 3B048761, 3B-048761-W, ML2580, ML25-80, SL2580, SL25-80, SE1050V80, GSNI6687, SPD6687
