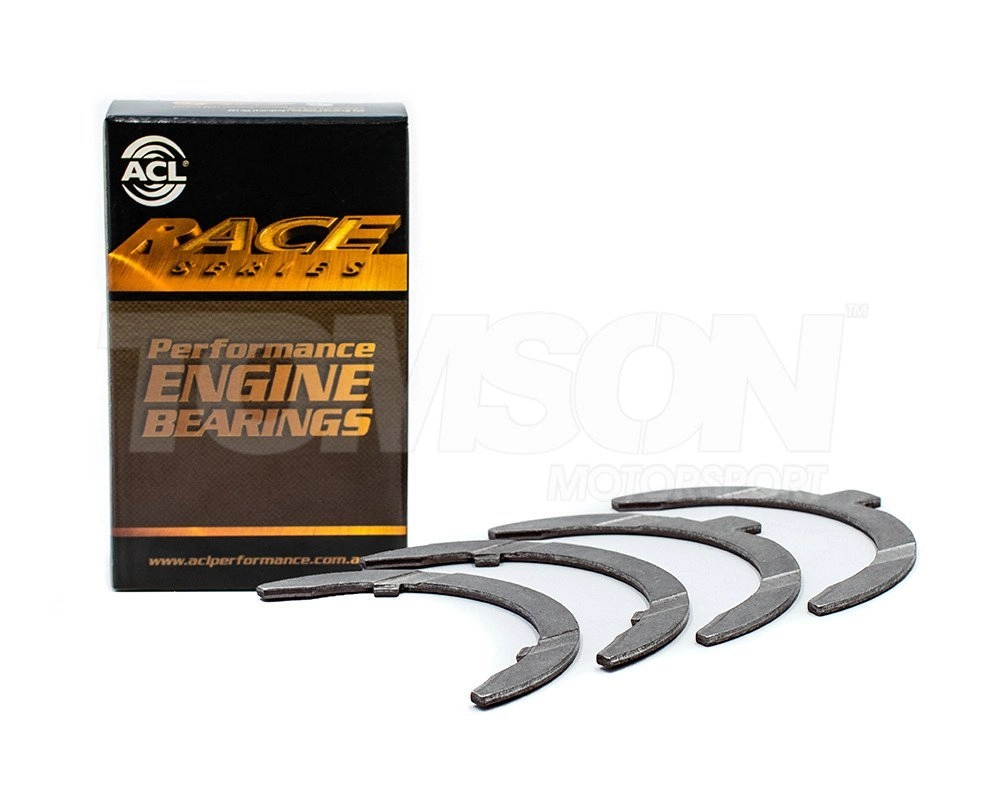

ACL Bearings 1T7707-STD Performance Thrust Washer Set

The ACL Bearings 1T7707-STD is a high-performance thrust washer set designed for Peugeot and Renault engines. This standard size thrust washer features identical bearing halves constructed from F817 material, providing superior durability and performance compared to OEM components.

Key Features:

• Engineered for tuning and engine upgrades with higher bearing capacity than standard bearings
• High strength overlay plate with reduced thickness for improved fatigue properties
• Increased crush for improved bearing retention
• Advanced material engineering with improved dynamic thickness, heat conduction, and oil distribution

Technical Specifications:

• Maximum overall length: 2.35mm
• Shaft size range: 55.25mm to 55.5mm
• Tunnel size range: 73.25mm to 73.45mm
• Maximum wall thickness at crown: 1.98mm
• Bearing size: Standard (STD)

This thrust washer is compatible with various Peugeot and Citroen engines including TU3.2, TU3J2, TU5JP, TU5JP4, TU9, XV3, XV5, and XV8 engines ranging from 954cc to 1587cc inline-4 configurations. ACL Race Series performance engine bearings are recognized as a premier brand throughout the motorsports world, with the unique combination of design, metallurgy and engineering providing endurance and capability to perform where others cannot.
