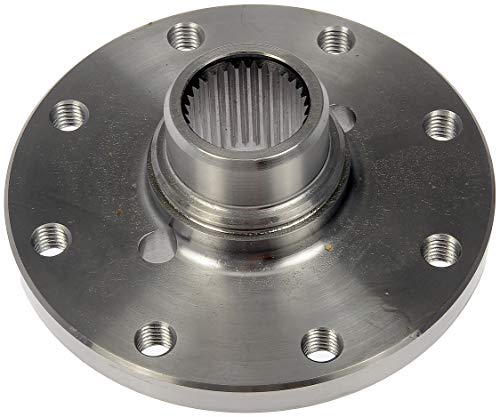

Dorman 697-548 Differential Pinion Flange Assembly for 10.5" Ring Gear

(Ford F-150 2000-07, F-250 Super Duty 1999-2007, F-350 Super Duty 1999-2007, Focus 2005-07, F-250 1999, Excursion 2000-05 + 6 more models)

Manufacturer

Part Number

697-548
Black Friday Price

$149.88

In Stock (7)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Dorman 697-548 Differential Pinion Flange Assembly is a direct-fit replacement component designed to restore the critical connection between the differential pinion and driveshaft. This precision-engineered assembly addresses worn or damaged pinion flanges that can cause driveline vibrations and differential fluid leaks.

Key Features:

  • Constructed from robust carbon steel with a silver finish for exceptional strength and durability
  • Features 31 internal splines with a splined bore diameter of 46.07mm for precise fitment
  • Includes 10 flange mount holes with 12mm and 11.06mm diameters for secure attachment
  • Tube length of 143.1mm (5.63 inches) designed to exact OE specifications
  • Flange thickness of 13.3mm ensures proper mating with driveshaft components
  • Designed for 10.5-inch ring gear applications
  • Includes high-quality seal constructed from rubber, metal, and plastic to prevent lubricant leaks

OE Replacement Numbers: 2C3Z4851AA, 2C3Z4851AB

Manufactured to strict specifications and backed by Dorman's century of automotive aftermarket experience, this pinion flange assembly provides reliable performance and ensures proper torque transfer from the driveshaft to the differential. The component is rigorously tested to confirm accurate fit and safe operation, making it an ideal solution for restoring smooth drivetrain operation.

Products specifications

Fits

Ford F-150 2000-07, F-250 Super Duty 1999-2007, F-350 Super Duty 1999-2007, Focus 2005-07, F-250 1999, Excursion 2000-05, E-350 Super Duty 1999-2007, E-250 2003-07, E-350 Econoline 1999-2000, 2007, E-250 Econoline 1999-2002 + 2 more models

Length

143.1

Flange Mount Hole Diameter

12

Spline Count

31

Bearing Straps Included

No

Color

Silver

Universal Joint Style

Standard Replacement

Flange Mount Hole Quantity

10

FLANGE Thickness

13.3

Material

Carbon steel

Package Contents

1 Pinion Yoke

Bearing Caps Included

No

Universal Joint Type

No

Splined Bore Diameter

46.07

Inner Spline Quantity

31

Spline Inside Diameter

29.72 mm

U Bolts Included

No
