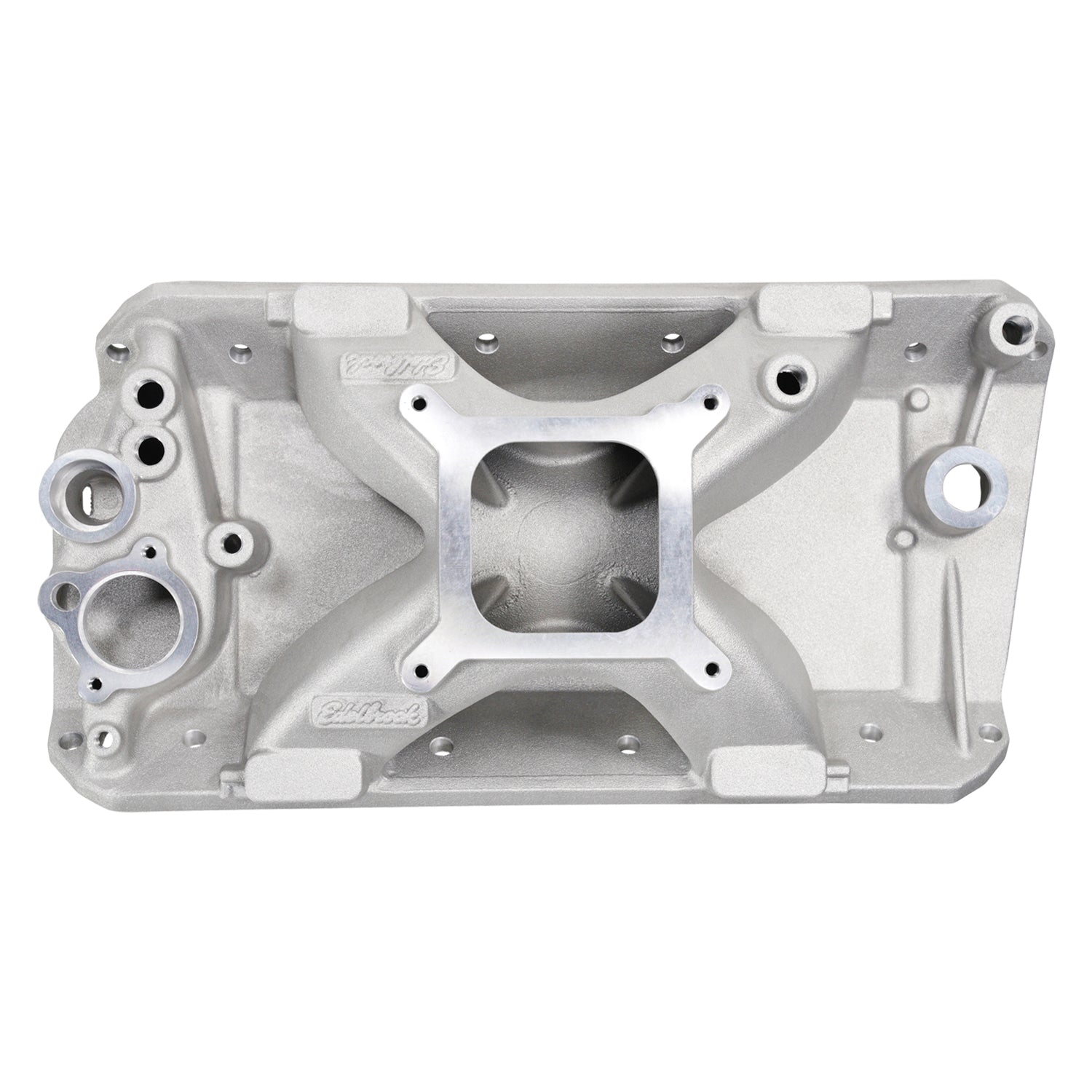

Edelbrock 28110 Victor Jr. Single Plane Intake Manifold for AMC V8

Manufacturer

Part Number

28110
Black Friday Price

$619.95

In Stock (10+)

delivery box

Usually delivered within 2 days

free shipping

FREE SHIPPING

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The Edelbrock 28110 Victor Jr. intake manifold is a high-performance single-plane design engineered for 1970-1991 AMC V8 engines, including 304, 360, 390, and 401 cubic inch displacements. This race-proven manifold will also work on earlier 290, 343, and early 390 engines equipped with late-model 1970-1991 dog leg port cylinder heads.

Performance Features:

  • Single-plane, high-rise design maximizes airflow and fuel distribution for competition applications
  • Operating RPM range of 3,500-8,500 RPM, making it ideal for high-revving race engines
  • Manifold height of 5.740 inches for optimal plenum volume
  • Port dimensions: Runner width 1.060 in., Front height 0.970 in., Rear height 1.160 in., Overall height 2.130 in.
  • Extra material provided for custom port matching
  • Accepts 4150-style square bore carburetors
  • Natural satin aluminum finish

Competition Ready:

Developed using Edelbrock's race-winning induction technology, the Victor Jr. series is designed for oval track racing, drag racing, and other forms of motorsports competition. The single-plane design delivers maximum top-end power for serious racing applications where engine speeds regularly exceed 3,500 RPM.

Installation Notes:

Recommended intake gaskets include Edelbrock #7220 or Fel-Pro #1262. This manifold requires separate purchase of intake bolts, carburetor studs, and gaskets (available in Edelbrock kit #28110K). This product is intended for racing and off-road use only on uncontrolled (non-emissions controlled) vehicles.

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov

Products specifications

Cylinder Head Type

AMC 1970-91 304-401 CID

RPM Range

3500-7500

CNC Ported

No

Usage

OEM

Gasket Or Seal Included

No

Grade Type

Performance

Number Of Carbs

One

Usage

Racing

Material

Aluminum

Series

Victor

RGL

WARNING: This product can expose you to Lead, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.

Vehicle Model

AMC

Finish

Satin

EGR Port

No

Single Or Dual Plane Type

Single Plane

Bolt Hole Centerline To Port Floor

0.97

Mounting Hole Diameter

(Carb Bolt) 5/16-18 UNC

Center Maximum Height

5.74

Basic Operating RPM Range

3500-7500

Recommended Use

Carbureted Applications

Port Exit Dimensions

1.06 x 2.13

Rear Maximum Height

(B) (Measured To Engine Block) 5.74

Quantity

Sold individually

Angle

(Carb) 0

Front Maximum Height

(A) 5.74

Flange Type

4150

Mounting Hole Quantity

(Carb Bolt) 4

Bolt Hole Centerline To Port Roof

1.16
