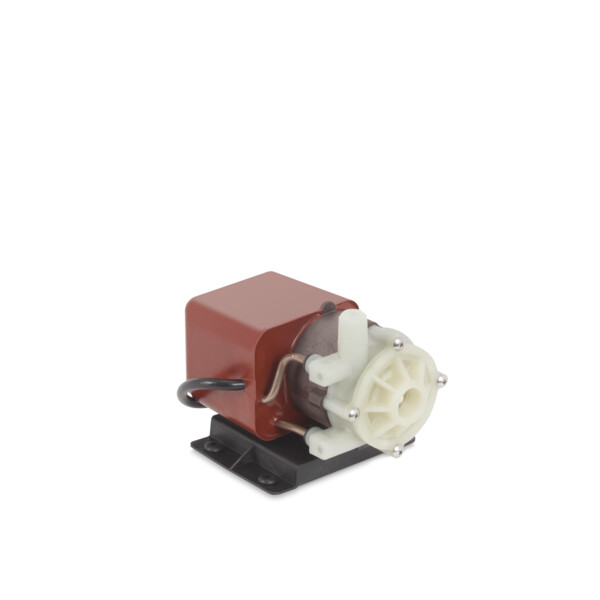

Dometic 9108516644 Submersible Seawater Circulation Pump 115V 500 GPH

The Dometic 9108516644 submersible pump (also called a seawater circulation pump or magnetic-drive centrifugal pump) circulates seawater through marine air conditioning systems. It runs on 115V AC at 50/60 Hz and is rated for about 500 gallons per hour.

Key Features:

• Magnetic-drive impeller, so there are no mechanical shaft seals to wear, leak or repair
• Permanent ceramic impeller and drive magnets that resist slippage, so full motor power goes into pumping
• Liquid-cooled, totally enclosed motor. The pump can run submerged or in open air
• Marine-grade base built for harsh marine conditions
• Parts that contact water are plastic, ceramic or stainless steel
• Efficient, low-power motor
• 6 ft (1.8 m) power cord
• Built by March Pump to Dometic specifications, with improved durability, cooling water flow, and vibration isolation and mounts compared with standard March pumps

Installation Notes: This centrifugal pump needs a flooded inlet. Mount it below the waterline.

Replaces Dometic PML500 / LC-3CP-MD 115 V pumps, including part numbers 225500005 and 336183.
