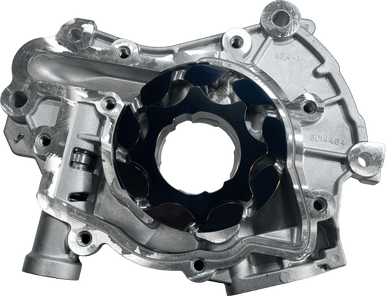

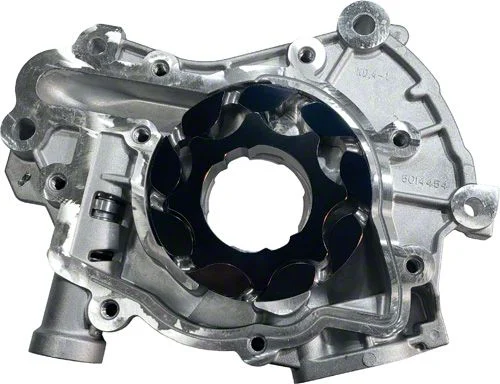

Boundary CM-S2 Coyote Oil Pump Assembly with Billet Vane Ported Gears

The Boundary CM-S2 Oil Pump Assembly is a race-ready upgrade designed to deliver superior oil pressure stability and reliability for high-performance Ford Coyote 5.0L V8 engines. Engineered for high-RPM applications and track-driven builds, this premium assembly addresses the oil pressure challenges that overwhelm stock pumps when your engine is pushed to its limits.

Professional Race Preparation:

Each CM-S2 oil pump starts with an OEM Ford Coyote housing that undergoes Boundary's meticulous race-prep process. The pump is completely disassembled, ultrasonically cleaned, air-blasted, and hand-inspected. The housing is then hand-deburred to ensure smooth, reliable operation under extreme conditions.

High-Performance Internal Components:

• Mirror-finished billet gear set for maximum strength and reduced friction
• Black Series vane-ported gerotor with dual-stage heat treatment for exceptional hardness and wear resistance
• MartenWear surface treatment for superior durability
• Billet steel anti-cavitation back plate improves sealing and high-RPM oil control
• Stainless steel Torx fasteners replace OEM hardware

Professional Assembly Features:

• All fasteners torqued to exact specifications
• Loctite applied to prevent fastener loosening or back-out
• Anaerobic sealant applied to critical areas to reduce aeration and speed pump-up on startup
• Assembly lubricant applied to all critical surfaces for immediate oil flow
• Every unit is blueprinted and includes a detailed specification sheet

The Boundary CM-S2 delivers improved mid-range oil pressure, enhanced gear strength, and increased flow control to protect your high-performance Coyote engine. This assembly is compatible with VVT (Variable Valve Timing) systems and is ideal for builds featuring forced induction, high-RPM operation, or track duty.

Application: Ford Coyote 5.0L V8 engines in 2011-2017 Mustang GT and 2011-2017 F-150 trucks.
