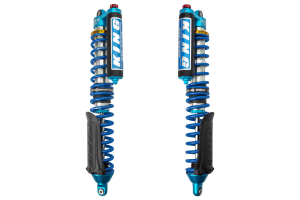

King 25700-371A Front 2.5 Internal Bypass Piggyback Coilover with Finned Reservoir and Adjuster

The King Shocks 25700-371A is a front 2.5" Internal Bypass Piggyback (IBP) Coilover with finned reservoir and wide-range compression adjuster, engineered specifically for the 2017+ Can-Am Maverick X3 and X3 X RS with 72" track width in 2- and 4-seat configurations. Note: Installation requires trimming of plastic body panels for proper reservoir clearance.

Internal Bypass (IBP) Technology:

King's IBP design delivers precisely tunable velocity-sensitive and position-sensitive damping along with a hydraulic bump stop — all in a bolt-on monotube shock package. The monotube construction utilizes a full-diameter piston and full-size valving, providing superior performance and fade resistance over twin-tube designs.

Key Features:

• 2.5" Wide Range Compression Adjuster — 20 individual, clearly detented clicks of compression damping adjustment from very soft to very firm, easy to operate even while wearing gloves
• External Finned Reservoir — dramatically increases fluid capacity and heat dissipation for sustained damping performance under the most demanding off-road conditions
• Aircraft-quality billet aluminum construction — beautifully anodized for corrosion resistance and long-term durability
• Large 3/4" diameter shafts — minimum tensile strength of 100,000 PSI for maximum durability
• Truncated thread design — machined for ultimate strength and trouble-free spring preload and ride height adjustments
• Quad-sealed fluid transfer tube — reservoir mount bolts securely to the shock body with a leak-resistant connection
• Fully rebuildable, serviceable, and tunable — built to the same precise tolerances as King's top-of-the-line Pure Race series shocks
• Factory-tuned damping curves and spring rates — developed through extensive dynamometer lab testing and real-world UTV testing
• Wide-range compression adjuster is retro-fittable to existing King Shocks

Sold as a single shock. This high-performance upgrade is designed for the 72" wide-body track width X3 platform and delivers race-proven damping technology in a street and trail-ready package. Installation instruction sheet INS-C006 is included.
