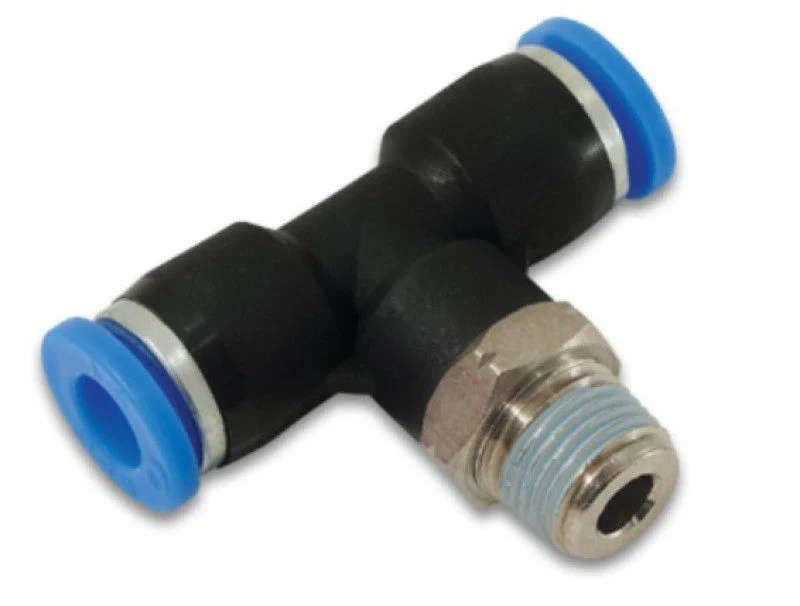

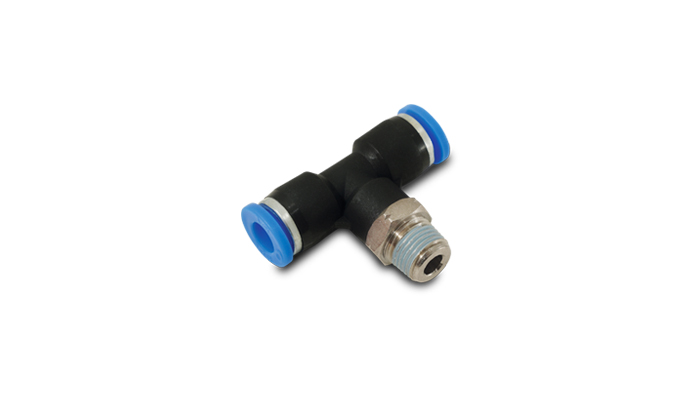

Vibrant 22630 Male Tee One-Touch Fitting 5/32" OD Tube 1/8" NPT

The Vibrant Performance 22630 is a pneumatic one-touch male tee fitting designed for use with 5/32" (4mm) O.D. tubing and a 1/8" NPT male thread connection. This fitting provides a fast, secure, tool-free connection for vacuum and boost lines in performance automotive applications.

Vibrant's one-touch push-lock design eliminates the need for hose clamps or zip ties — once tubing is fully inserted, it locks in place and is virtually impossible to remove without actuating the release collar. The fitting is rated for use with both ambient and pressurized air systems.

Key Features:

• One-touch push-lock design for fast, secure tube installation
• Tee configuration with two push-in tube ports and one 1/8" NPT male thread port
• Tube O.D.: 5/32" (approximately 4mm)
• Male thread size: 1/8" NPT
• Maximum operating pressure: 150 PSI
• Construction: Stainless steel body with PTFE-coated threads
• UPC: 690092177492

Ideal for routing vacuum signals, boost references, or pneumatic control lines, the Vibrant 22630 delivers professional-grade reliability in a compact, easy-to-install package.
