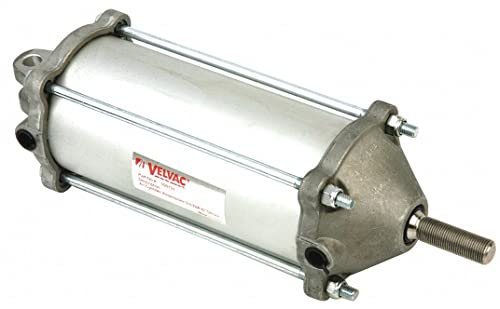

Velvac 100131 Air Cylinder 3.5 Inch Bore 6.68 Inch Stroke Push/Pull Double Acting

The Velvac 100131 is a heavy-duty push/pull air cylinder designed for demanding commercial vehicle applications. This double-acting pneumatic cylinder features a 3-1/2 inch bore with a 6.68 inch stroke, delivering reliable performance in typical tailgate operations and other industrial uses.

Key Specifications:

• Bore diameter: 3.5 inches
• Stroke length: 6.68 inches
• Retracted length: 13.60 inches
• Extended length: 20.28 inches
• Rod diameter: 0.625 inches
• Maximum operating pressure: 100 PSI
• Thrust force at 100 PSI: 962 lbs
• Pull force at 100 PSI: 918 lbs
• Cylinder type: Push/pull double acting
• Body material: Aluminum construction

Features and Benefits:

• Built to withstand the daily abuse of typical tailgate applications
• Versatile design suitable for a wide variety of commercial vehicle applications and conditions
• 100% factory tested for quality assurance
• Backed by 1-year warranty
• Aluminum body provides durability while keeping weight manageable

This air cylinder is commonly used in heavy-duty truck tailgate systems, medium-duty commercial vehicles, and other pneumatic actuation applications requiring reliable push/pull force. Cross-reference part numbers include 810-100131, VEL100131, C-6057, and 400356.
