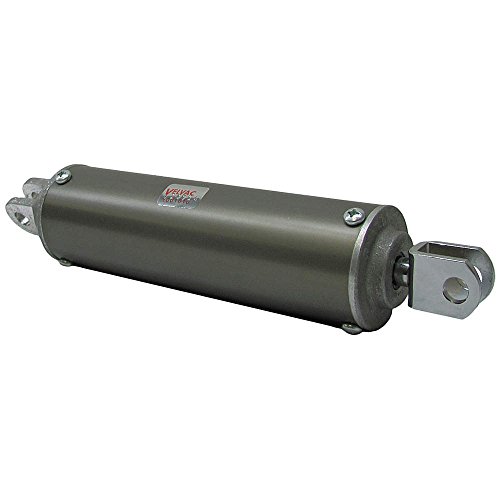

Velvac 100124 Double Acting Air Cylinder 2.5" Bore 8" Stroke

The Velvac 100124 tailgate air cylinder is designed to allow remote cab opening and closing of the tailgate locking mechanism on a dump body. This double acting air cylinder features a 2.5-inch bore diameter with an 8-inch stroke length, providing 13.89 inches when retracted and 21.89 inches when extended.

Key Features:

• 300 series stainless steel cylinder shafts provide excellent corrosion resistance and extended cycle life, tested to over 500,000 cycles
• Lightweight, corrosion resistant aluminum cylinder tube with die cast aluminum end caps
• Rear clevis cast as integral part of the rear cover for improved durability and mounting integrity
• Emralon-coated piston cup assures smooth long lasting operation even in cold weather conditions to -40°F
• Front end cap assembly includes pressure seal, dirt seal and oil impregnated bronze bushing
• Clevis mounting with 1/4-inch NPT female air inlet
• Maximum operating pressure of 120 PSI and maximum operating temperature of 185°F

These cylinders can be used in a wide variety of applications and conditions and can take the daily abuse associated with typical tailgate applications. They are backed with a 1 year warranty and are 100% tested!
