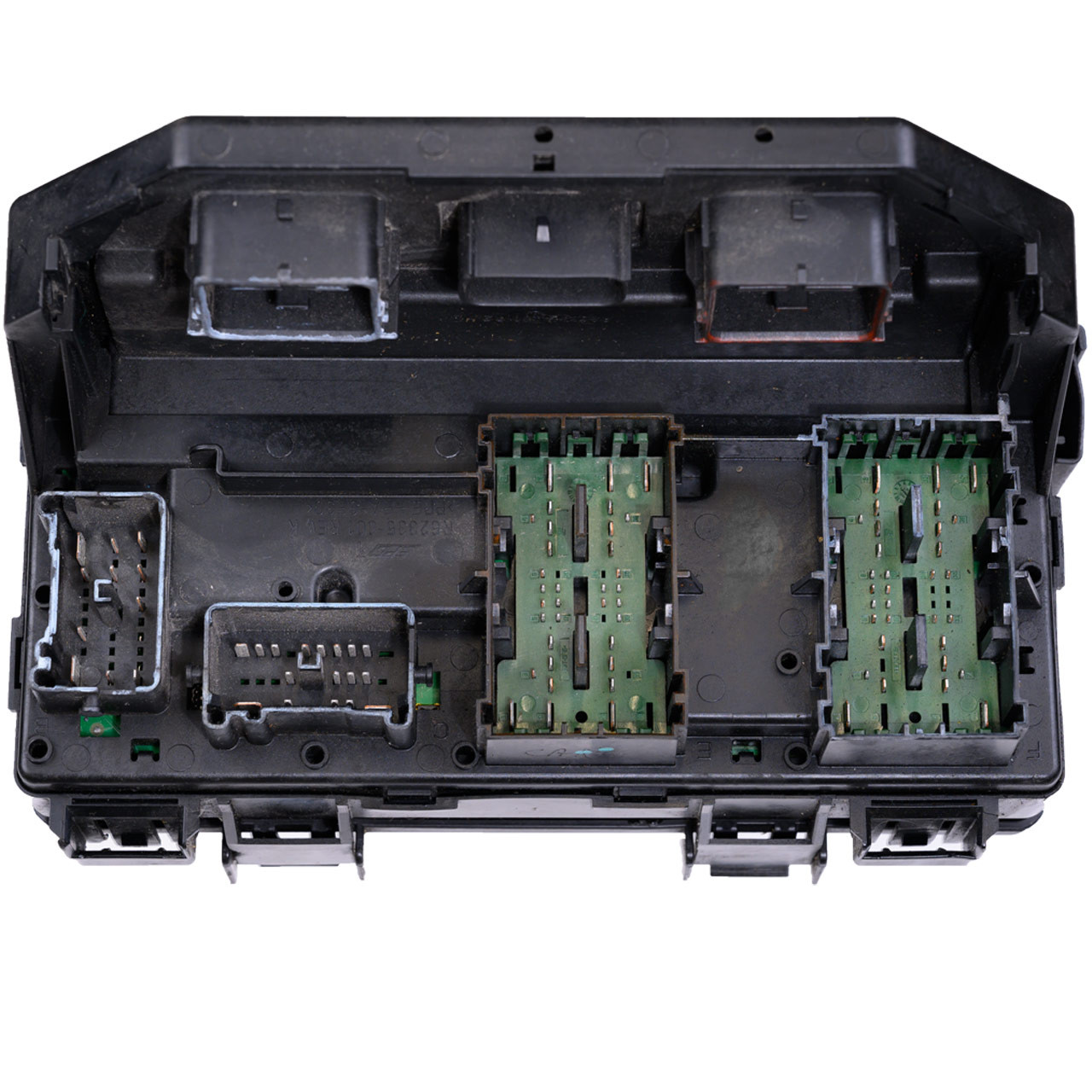

Chrysler 04692302AG Totally Integrated Power Module TIPM Fuse Box

The Chrysler 04692302AG Totally Integrated Power Module (TIPM) is a critical electronic control unit that serves as the central power distribution and control center for multiple vehicle electrical systems. This OEM module combines the functionality of a traditional fuse box with advanced electronic relay control and communication capabilities.

Key Features:

• Controls fuel pump relay operation and power distribution
• Manages wiper motor functions including high/low speed and on/off operation
• Controls door lock actuation and power window operation
• Regulates horn, backup lights, and other electrical accessories
• Integrated relay system with CAN bus communication capability
• Includes internal fuses and relays for comprehensive power management
• Mounted under hood near battery on driver's side

The TIPM communicates with the vehicle's Engine Control Module (ECM), Anti-lock Brake System (ABS), and Body Control Module (BCM) via serial data bus to coordinate electrical system functions. When the driver activates switches or controls, the steering control module or other systems send signals to the TIPM, which then commands the appropriate relay to power the requested component. This advanced integration provides more reliable operation and better electrical system protection compared to traditional fuse box designs.

OEM Part Number: 04692302AG
