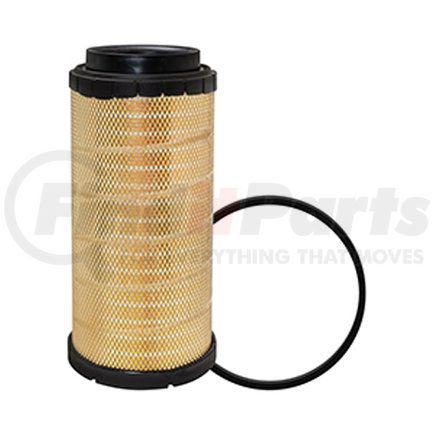

Baldwin RS5288XP Extreme Performance Radial Seal Outer Air Filter Element

The Baldwin RS5288XP is an Extreme Performance radial seal outer air filter element engineered for heavy-duty applications in Kenworth and Peterbilt trucks. This premium air filter utilizes advanced nanofiber technology to deliver superior filtration performance in demanding, high-dust environments.

Nanofiber Technology Advantages:

• Nanofiber media bonded to cellulose provides exceptional performance with submicron contaminants
• Higher initial filtration efficiency compared to conventional cellulose-only media
• Greater dust-holding capacity for extended filter replacement intervals
• Unequalled protection for engines operating in severe conditions

Design Features:

• Heavy-duty radial seal gasket and end cap resist degradation from temperature extremes, restriction changes, and vibration
• Flexible outer edges enable easy installation and removal in housings with minimal clearance
• PermaPleat construction ensures even pleat spacing to prevent bunching and extend element life
• Includes inlet adapter and furnished gasket for complete installation

Specifications:

• Overall Length: 24-5/32 inches (613.41mm)
• Outside Diameter: 11-13/32 inches (289.7mm)
• Inside Diameter 1: 3-25/32 inches (96mm)
• Inside Diameter 2: 7-5/8 inches (193.7mm)
• Weight: 9.4 lbs

This filter replaces OEM part number Paccar P614986 and is the Extreme Performance version of the standard Baldwin RS5288. Designed specifically for heavy-duty truck applications, the RS5288XP delivers the extended service life and superior engine protection that fleet operators demand.
