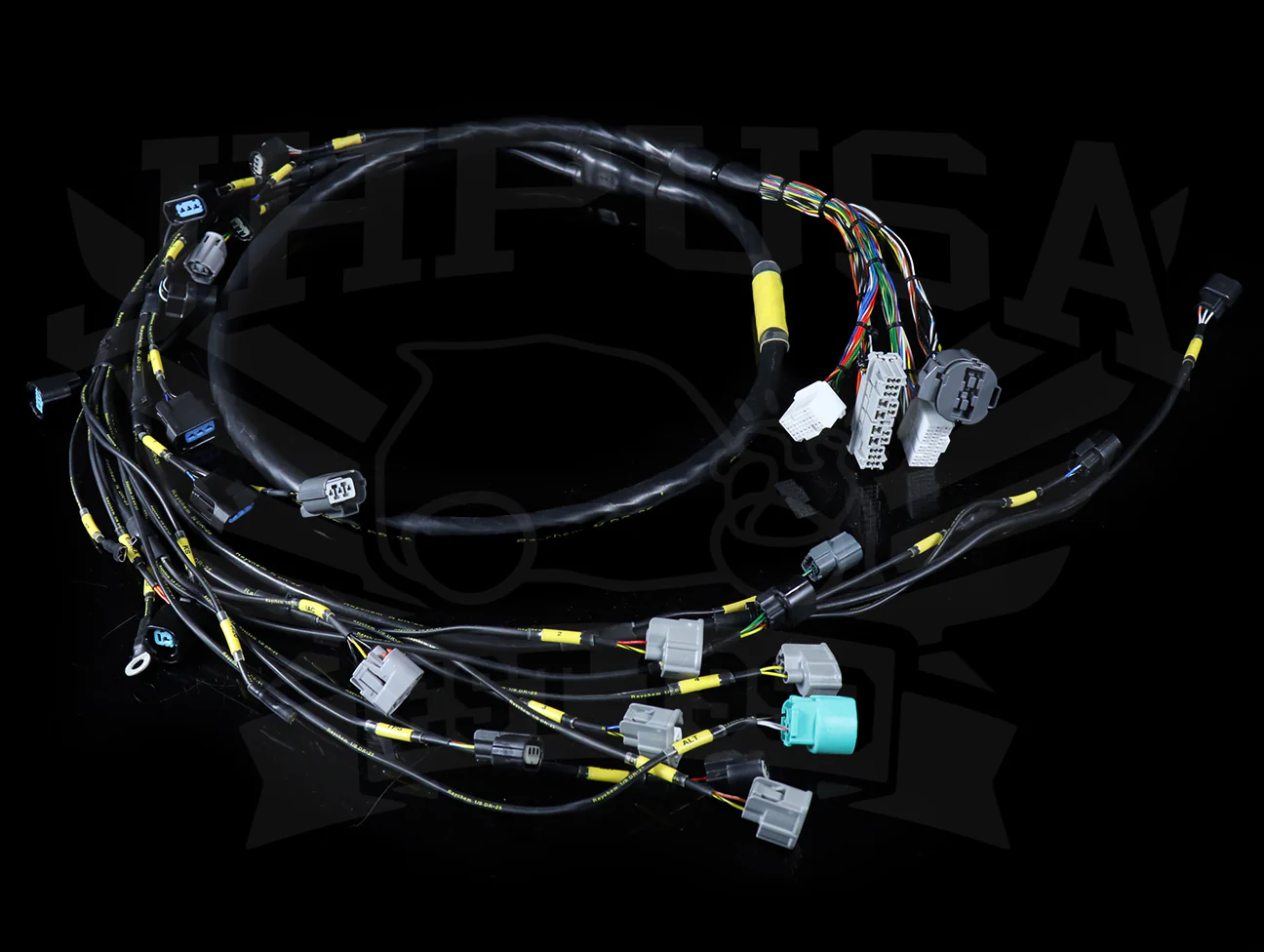

Rywire RY-K2-MILSPEC-EM2 K-Series Mil-Spec Engine Harness with EM2 Chassis Adapter

The Rywire RY-K2-MILSPEC-EM2 is a complete K-Series engine harness solution that combines their Version 2 Mil-Spec tucked engine harness with an EM2 chassis-specific adapter for 2001-2005 Honda Civic applications. This harness eliminates the need to source separate engine and chassis adapters, providing a complete plug-and-play wiring solution for K-Series engine swaps.

Version 2 Design Benefits:

• Created for more universal chassis compatibility and flexible harness routing
• Can be routed through the center or toward the right side of the firewall
• Ideal for both right-hand drive and left-hand drive vehicles
• Designed to clear aggressive exhaust manifolds

Mil-Spec Construction:

• Teflon-coated wire with ETFE (Tefzel) insulation rated for aerospace applications
• Maximum heat rating of 200°C (392°F) for extreme temperature resistance
• Factory wire colors maintained for easy identification
• Loomed with Raychem DR-25 heat shrink covering
• Adhesive-lined wire junctions for moisture protection

Quality Assurance:

• 100% quality tested pin-to-pin for continuity
• Resistance checked to ensure no voltage fluctuations
• Pneumatic crimping for OEM-quality connections
• White identification labels on connectors for easy installation
• No core exchange required

This harness is configured for 2002-2004 K-Series engines (K20A2/K20A3) with OBD2 sensors and includes the necessary chassis adapter to connect to the EM2 Civic interior wiring. All connectors and materials are new, and the harness is backed by Rywire's warranty with installation support. Made in the USA.
