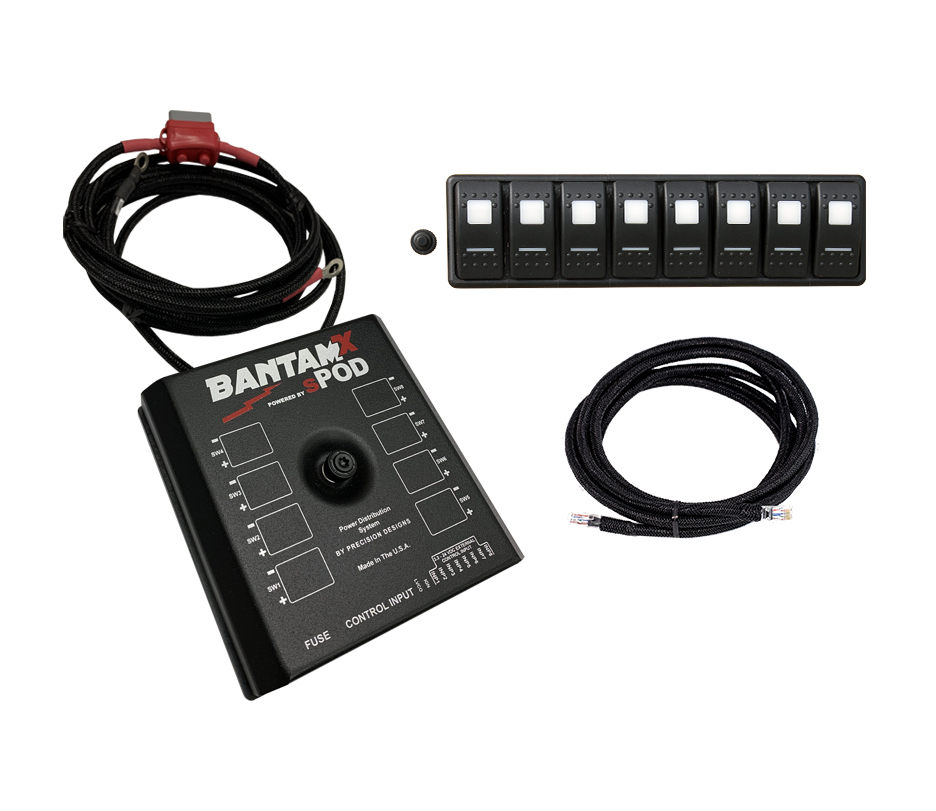

sPOD BX-MOD-84-R BantamX Modular 8-Circuit Power System with Red LED 84" Cables

The sPOD BantamX BX-MOD-84-R is a compact, intelligent 8-circuit power distribution system designed to eliminate hours of custom wiring for 12V/24V accessories. With its small footprint and single ethernet cable connection to the cab, this modular system provides a clean, professional solution for powering lights, winches, air compressors, and other aftermarket electrical accessories.

Core System Features:

• 8 independently controlled circuits rated at 30 amps each at 12.5 VDC (expandable)
• Fully programmable digital control via built-in Bluetooth and free sPOD mobile app
• Current-sensing MOSFETs with microprocessor control—no traditional fuses or relays to replace
• Self-healing fault protection system (1.5 to 30 amps) with automatic recovery
• Integrated low voltage cutoff (LVCO) battery protection with optional override
• 50-amp auto-resetting circuit breaker for main power protection
• Works with both 12VDC and 24VDC electrical systems
• 84-inch nylon braided battery cables with high-strand crosslinked copper and silicone jacket
• Daisy chain up to 4 BantamX units controlled by one touchscreen

Construction and Mounting:

• Powder coated steel base with integrated mounting hardware
• Aluminum lid with silicone weatherproof gasket
• Robust insulated design for harsh environments
• 16-position terminal block for easy accessory connections
• 8-position input terminal block for external control signals
• Two RJ45 controller ports for ethernet cables (included 10-foot CAT-6 cable, extendable to 25 feet)

Included Modular Switch Panel:

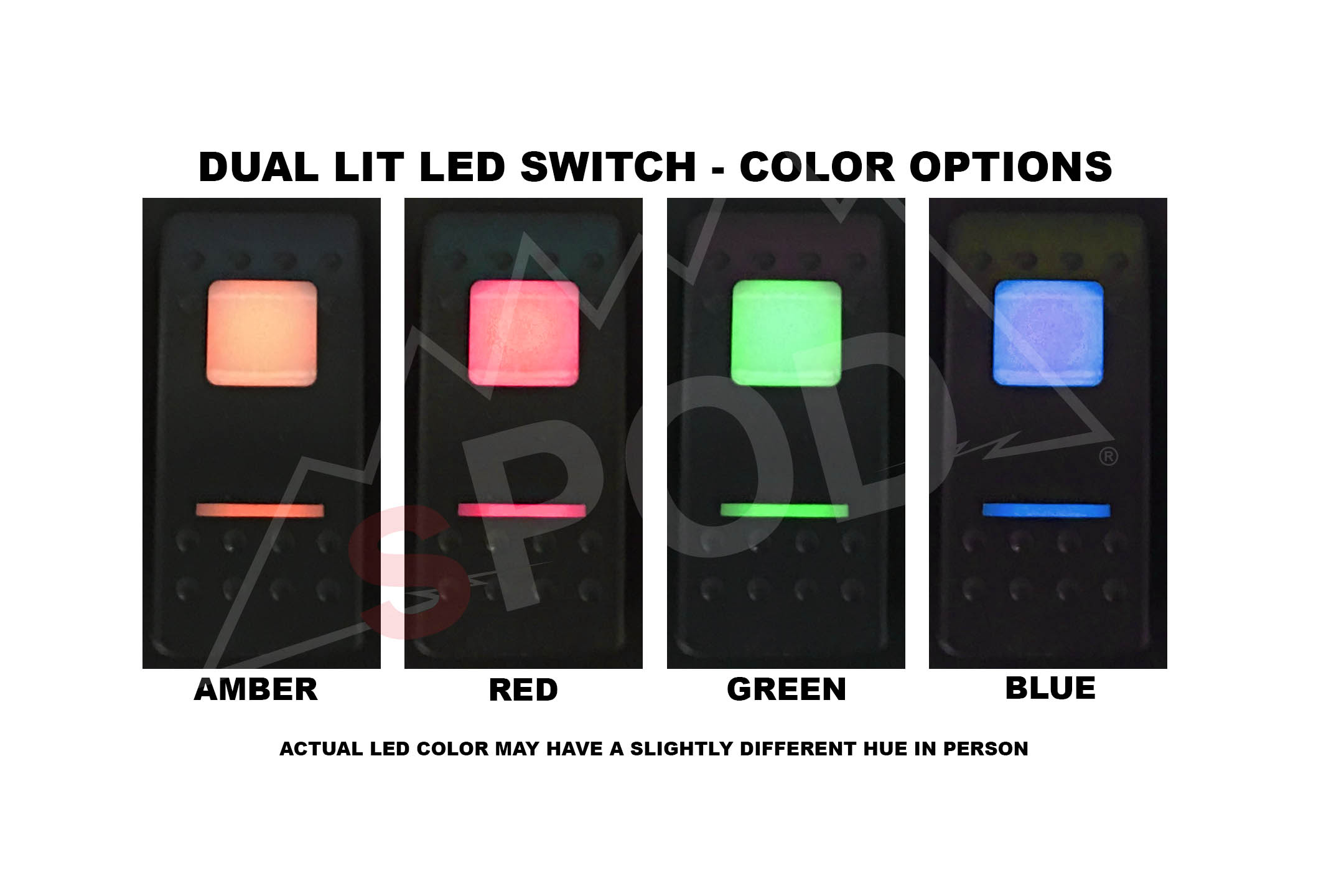

• Eight dual-lit Carling Technologies Contura Red LED switches (IP66/68 rated for marine/harsh environments)
• Pre-wired and installed in powder coated aluminum panel
• High-temp abrasion resistant nylon braided wire sleeving
• Push-button controlled lower pilot lights
• Ability to daisy chain panels for remote operations
• Auto-safe system shutdown when panel is unplugged

Programmable Functions (Free Mobile App):

• Dimming, strobe, flash, and momentary modes for each circuit
• Switch linking capabilities
• On-road and off-road operation modes
• Wireless software updates and upgrades
• Individual circuit monitoring and control

Advanced Protection Features:

• Overheating, over-current, and short circuit protection
• Reverse polarity and field collapse protection
• Ignition control and safety lock-out for circuits 1 and 2
• Initial startup current of 65 amps for 5 seconds (Pro-Series app feature)

Pro-Series App Upgrades (sold separately):

• Circuit timers and switch lockout
• Programmable current limiting in 2-amp increments
• Always-on circuit programming with fault protection
• Variable strobe function for custom flash patterns
• Selectable auto-restart after overcurrent shutdown
• Programmable ignition control for all 8 circuits

External Control Compatibility:

• Third-party switches, computers, Arduino, and Raspberry Pi
• Alpine Audio KAC-001 head unit controller
• Sensors, thermostats, pressure switches, and fan controllers

The BantamX system is perfect for vehicles where space is limited but power needs are significant. No cutting into factory wiring, no fishing cables through firewalls—just clean, expandable, fault-protected power distribution with professional results.
