sPOD BX-MOD-84-G BantamX Modular 8-Circuit Power System with Green LED 84" Cables

The sPOD BantamX BX-MOD-84-G is a compact, fully programmable 8-circuit power distribution system designed to eliminate hours of wiring time for aftermarket electrical accessories. This modular system provides a clean, professional solution with just one ethernet cable running into the cab, eliminating the need for cutting, fishing wires, or tapping into your vehicle's factory electrical system.

Key Features:

• 8 circuits rated at 30 amps each at 12.5 VDC (expandable system)
• Fully digital controlled with built-in Bluetooth capabilities for smartphone control
• Current-sensing MOSFETs controlled by microprocessor - no fuses or relays to replace
• 16-position terminal block for easy accessory connection
• Dual RJ45 controller ports for Ethernet cables
• Integrated low voltage cutoff (LVCO) with optional override for battery protection
• Failsafe self-healing fault protection system (1.5 to 30 amps)
• 50 amp auto-resetting circuit breaker
• High-strand crosslinked copper battery cables with silicone jacket and nylon braiding (84 inches)
• Operates on 12VDC or 24VDC systems
• 8-position input terminal block for controlling outputs
• Comprehensive protection against overheating, over-current, shorts, reverse polarity, and field collapse
• Optional ignition control and safety lock-out for circuits 1 and 2
• Support for daisy chaining up to 4 BantamX units controlled by one touchscreen
• On-demand wireless software updates and upgrades

Included Switch Panel:

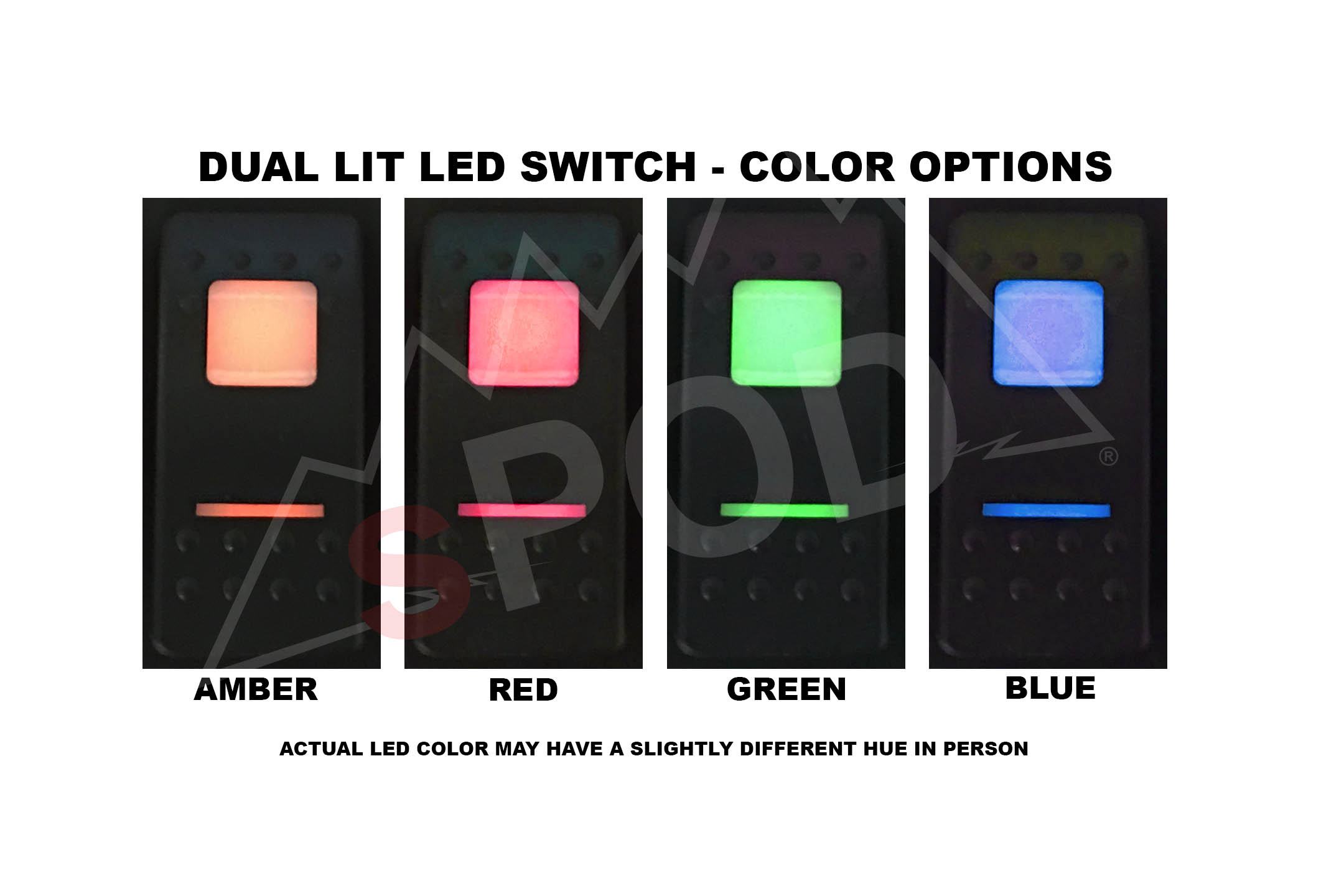

• Pre-wired 8-switch panel with dual-lit green LED Carling Technologies Contura switches (IP66/68 rated)
• Powder-coated aluminum panel (formed, welded, and finished)
• 10-foot CAT-6 Ethernet cable included (extendable up to 25 feet)
• High-temp abrasion-resistant nylon braided wire sleeving
• Controlled lower pilot lights with push-button operation
• Two integrated RJ45 ports in CAN-Bus controller
• Auto-safe system shutdown when panel is unplugged
• Compatible with additional switch panels, HD controllers, and touchscreen options

Programmable Functions (via Free sPOD Mobile App):

• Individual switch programming for dimming, strobe, flash, and momentary operation
• Switch linking capabilities
• On-road and off-road operational modes
• Each switch features 2 programmable modes

Advanced Features (Pro-Series App):

• Circuit timers and switch lockout
• Initial startup current boost to 65 amps for 5 seconds
• Always-on circuit programming with fault protection
• Programmable current limiting in 2-amp increments up to 30 amps
• Selectable auto-restart after over-current/short shutdown
• Variable strobe function for custom flash patterns
• Programmable ignition control for all 8 circuits
• Selectable latch or momentary actions for inputs

Hardware Construction:

• Powder-coated steel base with integrated mounting hardware
• Silicone gasket for weatherproof sealing
• Aluminum lid with robust insulated construction
• Vehicle-specific mounting options available
• Compact footprint for versatile placement options

External Controller Compatibility:

The BantamX system can integrate with third-party switches, Arduino, Raspberry Pi, Alpine KAC-001 audio head units, and various sensors including thermostats, pressure switches, and fan controllers (external devices sold separately).

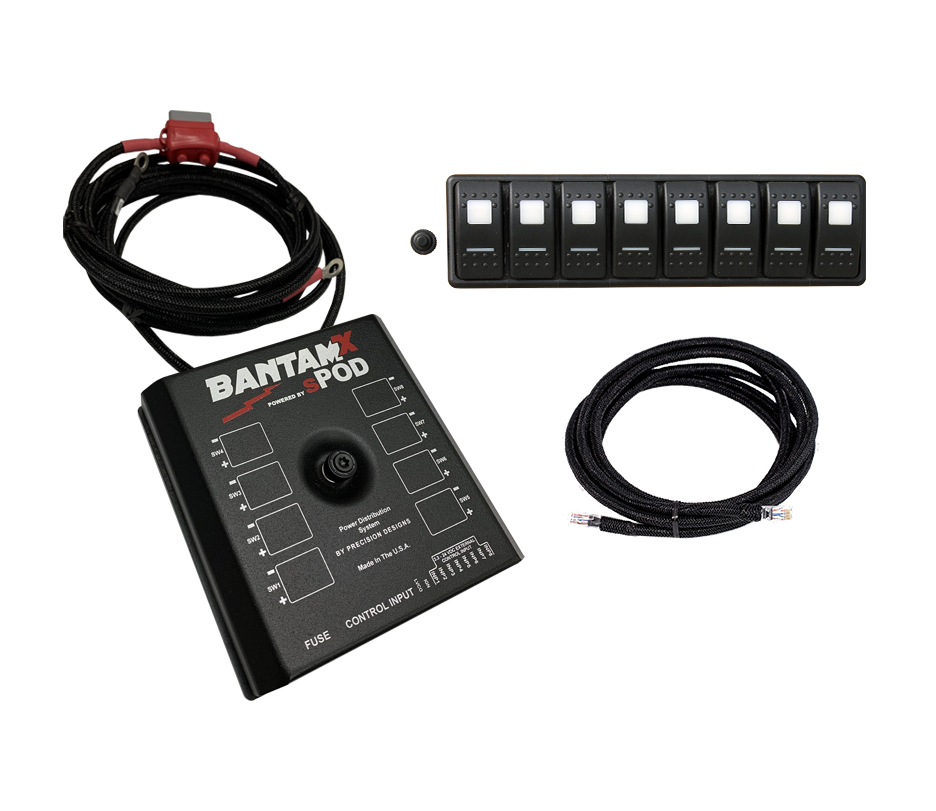

This complete kit includes the BantamX control module with green LED switch panel and 84-inch battery cables, providing everything needed for a professional aftermarket electrical installation.
