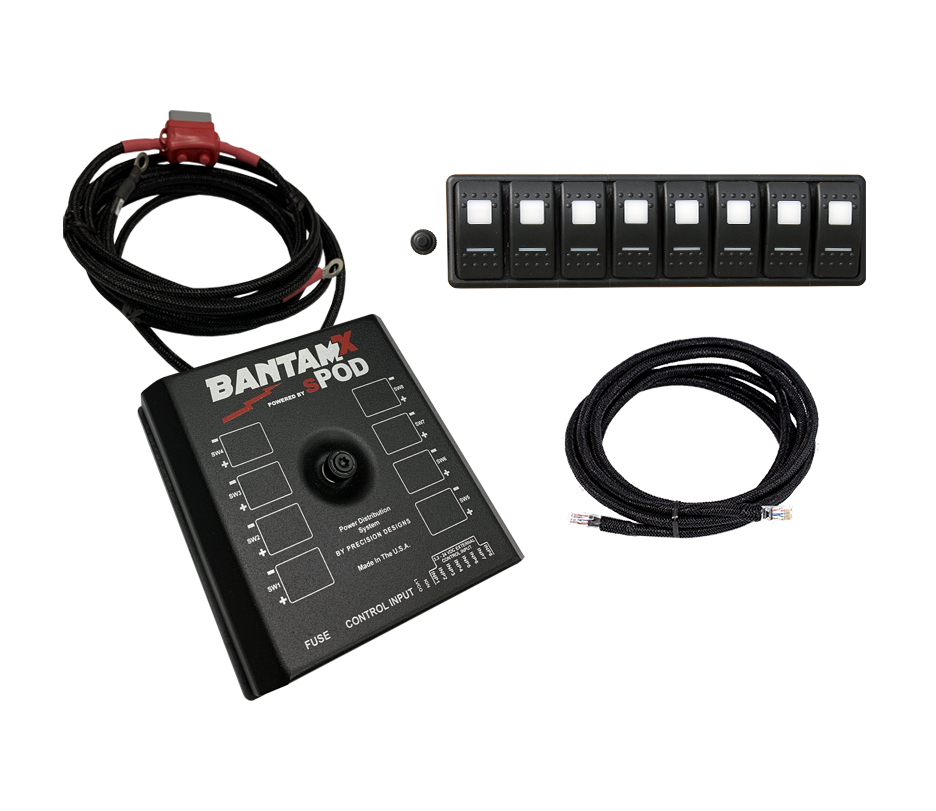

sPOD BX-MOD-84-B BantamX Modular 8-Circuit Control System Blue LED 84" Cables

The sPOD BantamX BX-MOD-84-B is a compact, intelligent 8-circuit power distribution system designed to simplify aftermarket electrical accessory installation. This modular control system eliminates hours of wiring work by providing a clean, safe way to power and control 12/24VDC accessories with just one ethernet cable running into the cab. The small footprint allows for flexible mounting options without cutting, fishing wires, or tapping into your vehicle's electrical system.

System Specifications:

• 8 circuits rated at 30 amps at 12.5 VDC per circuit (expandable)
• Operates on 12VDC or 24VDC systems
• Current-sensing MOSFETs controlled by microprocessor (no fuses or relays needed)
• 50-amp auto-resetting circuit breaker
• Integrated low voltage cutoff (LVCO) battery protection with optional override
• 84-inch nylon braided battery cables with hi-strand crosslinked copper wire and silicone jacket
• 16-position terminal block for easy accessory attachment
• 8-position input terminal block for controlling outputs
• Two RJ45 controller ports for ethernet cables

Advanced Protection Features:

• Failsafe self-healing fault protection system (1.5 to 30 amps)
• Protection against overheating, over-current, shorts, reverse polarity, and field collapse
• ATM mini-style fuse for LVCO protection and reset
• Ignition control and safety lock-out for switches 1 and 2 (optional)

Control Options:

• Built-in Bluetooth capabilities for remote control via sPOD Mobile App
• Fully programmable digital control system
• Up to 4 BantamX units can be daisy-chained and controlled by one touchscreen
• Compatible with third-party switches, computers, Arduino, Raspberry Pi, and sensors
• On-demand wireless software updates and upgrades

Included Switch Panel:

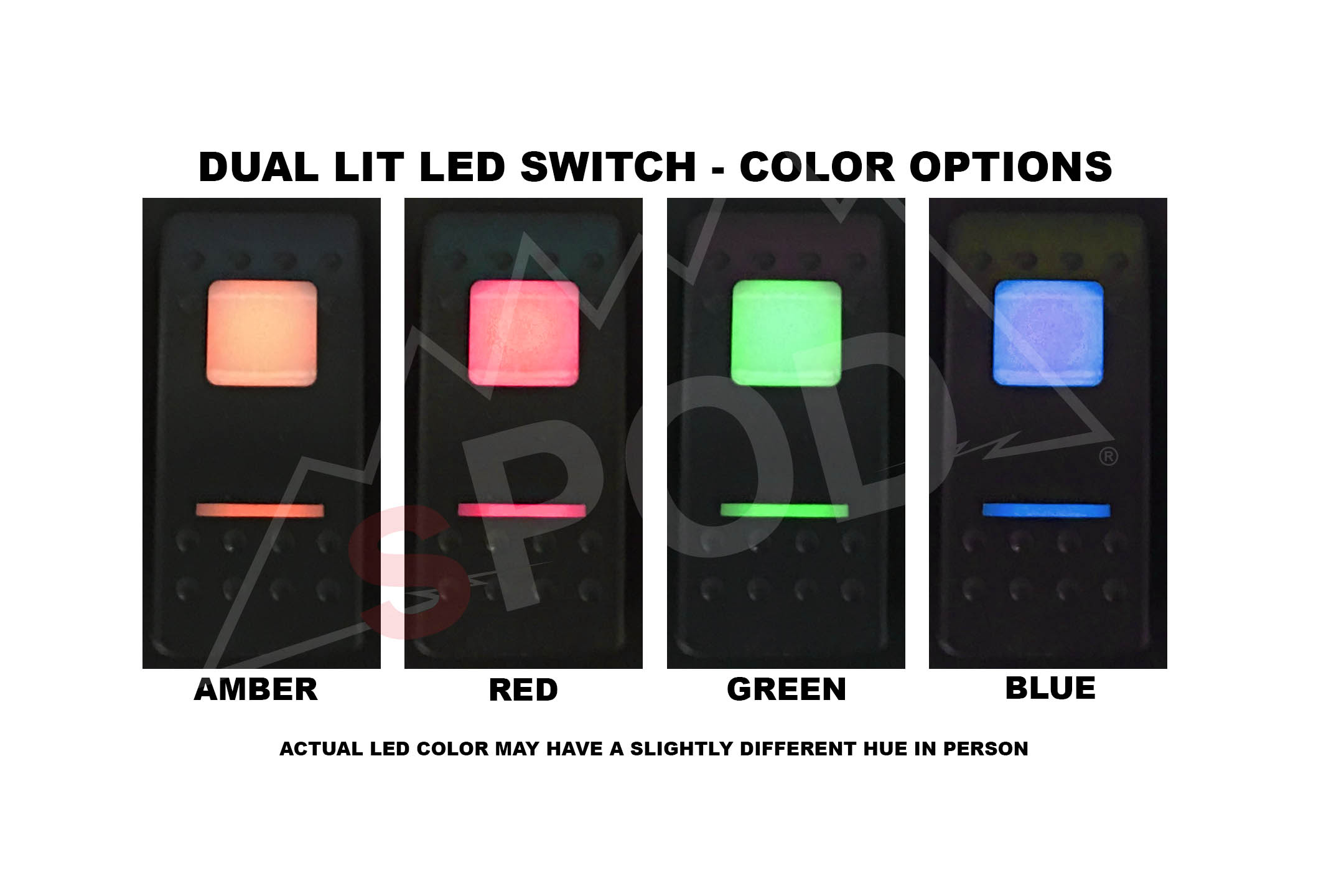

• Pre-wired panel with eight dual-lit LED blue switches
• 10-foot CAT-6 ethernet cable (extendable to 25 feet)
• Carling Technologies Contura switches (IP66/68 certified for marine/harsh environments)
• Powder-coated aluminum panel construction
• High-temp abrasion-resistant nylon braided wire sleeving
• Each switch programmable for dimming, strobe, flash, momentary, or switch linking
• Ability to daisy-chain panels for remote operations

Construction:

• Powder-coated steel base with built-in mounting hardware
• Silicone gasket for weatherproofing
• Aluminum lid with robust insulated base and cover
• Vehicle-specific mounting options available

The free sPOD Mobile App provides control over dimming, strobe, flash, momentary functions, switch linking, and on-road/off-road modes. The optional Pro-Series App unlocks advanced features including circuit timers, switch lockout, programmable current limiting, variable strobe patterns, and programmable ignition control for all 8 circuits.
