sPOD BX-MOD-84-A BantamX Modular 8-Circuit Control System with Amber LED Switches

Manufacturer

Part Number

BX-MOD-84-A
Sale Price

$923.95

Estimated ship date Sunday, November 29

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

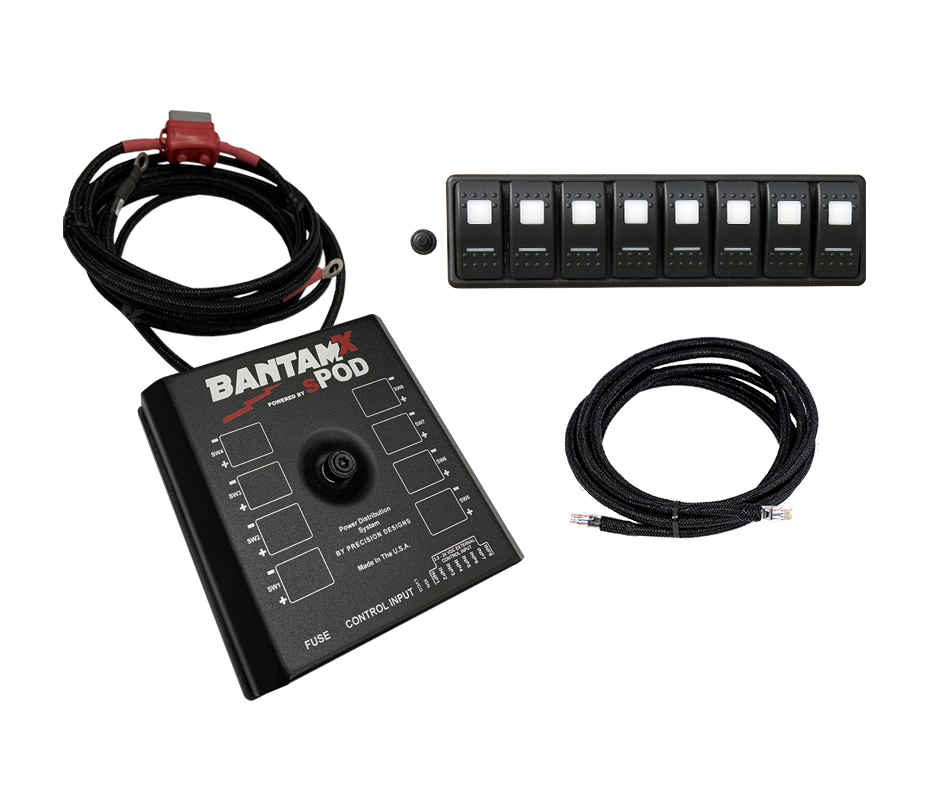

The sPOD BantamX BX-MOD-84-A is a compact, intelligent 8-circuit power distribution system designed to simplify the installation and control of aftermarket 12V/24V electrical accessories. This modular system eliminates hours of traditional wiring by using a single ethernet cable connection into the cab, providing a clean and professional installation with no cutting, wire fishing, or tapping into your vehicle's factory electrical system.

Core System Features:

  • 8 independent circuits rated at 30 amps each at 12.5 VDC (expandable system)
  • Fully programmable digital control via Bluetooth smartphone app
  • Current-sensing MOSFET technology controlled by microprocessor (no traditional fuses or relays)
  • Self-healing failsafe fault protection from 1.5 to 30 amps
  • Integrated low voltage cutoff (LVCO) battery protection with optional override
  • 50-amp auto-resetting circuit breaker
  • Operates on both 12VDC and 24VDC systems
  • Comprehensive protection against overheating, over-current, shorts, reverse polarity, and field collapse
  • 84-inch nylon braided hi-strand crosslinked copper battery cables with silicone jacket

Control and Connectivity:

  • 16-position terminal block for easy accessory connections
  • 8-position input terminal block for controlling outputs
  • Two RJ45 controller ports for ethernet cables
  • Built-in Bluetooth for wireless control via sPOD mobile app
  • Up to 4 BantamX units can be daisy-chained and controlled by one touchscreen
  • Compatible with third-party switches, computers, Arduino, Raspberry Pi, and various sensors
  • On-demand wireless software updates and upgrades

Construction:

  • Powder-coated steel base with integrated mounting hardware
  • Aluminum lid with silicone gasket for weatherproofing
  • Robust insulated base and cover
  • Compact footprint allows flexible mounting locations

Included Switch Panel:

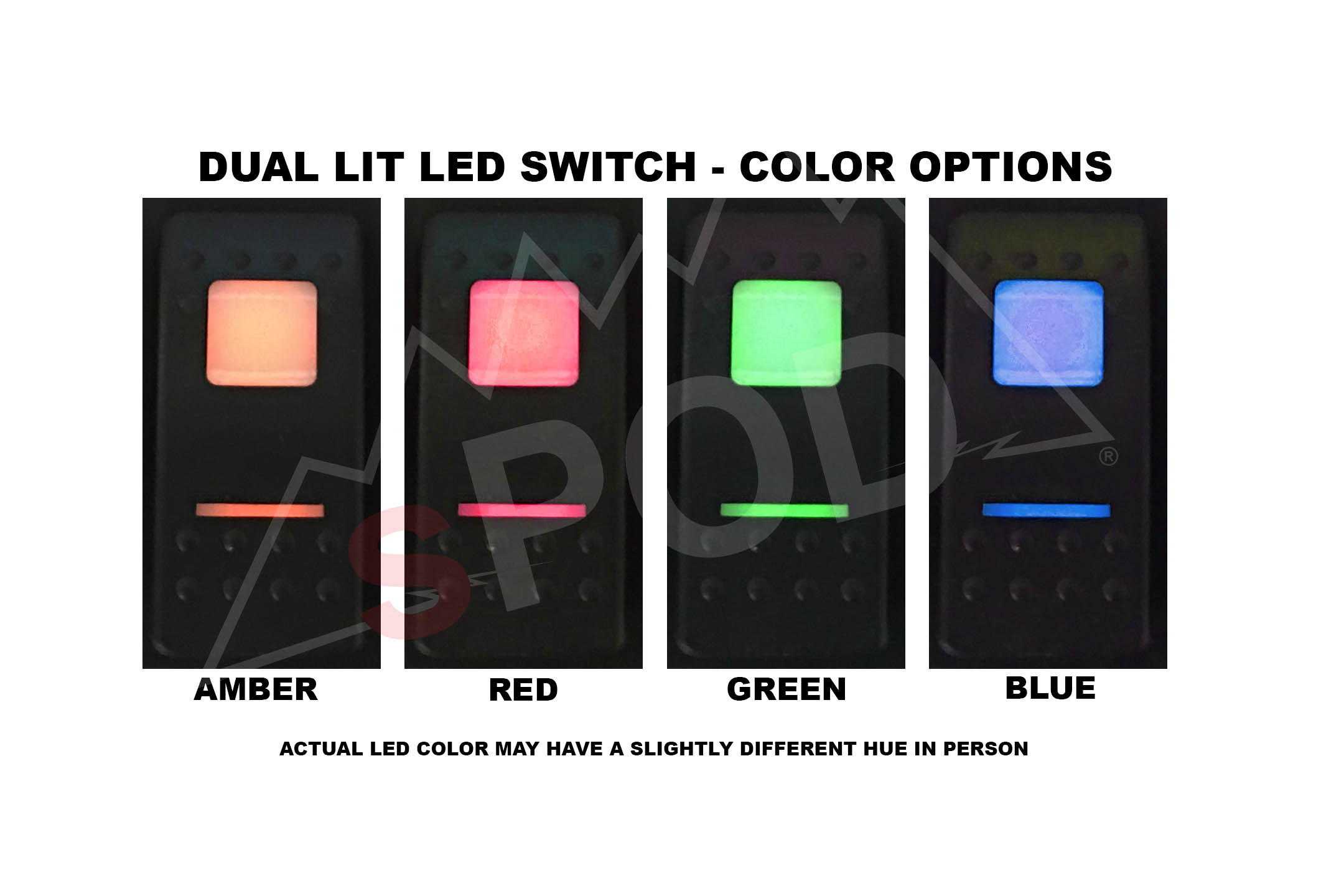

  • Eight Carling Technologies Contura dual-lit Amber LED switches (IP66/68 rated for marine/harsh environments)
  • Pre-wired and installed on powder-coated aluminum panel
  • 10-foot CAT-6 ethernet cable included (extendable up to 25 feet)
  • High-temp abrasion-resistant nylon braided wire sleeving
  • Controlled lower pilot lights with push-button operation
  • Daisy-chain capability for remote panel operation
  • Auto-safe system shutdown when panel is disconnected

Programmable Functions (via free sPOD Mobile App):

  • Individual circuit dimming control
  • Strobe and flash modes
  • Momentary operation
  • Switch linking
  • On-road and off-road operating modes
  • Ignition control and safety lockout for switches 1 and 2

Advanced Features (via Pro-Series App upgrade):

  • Circuit timers and switch lockout
  • 65-amp initial startup current for 5 seconds per circuit
  • Always-on circuit programming with fault protection
  • Programmable current limiting in 2-amp increments up to 30 amps
  • Selectable auto-restart after overcurrent/short shutdown
  • Programmable ignition control for all 8 circuits
  • Variable strobe function for custom flash patterns
  • Selectable latch or momentary input actions

The BantamX system is ideal for vehicles with multiple electrical accessories including off-road lights, air compressors, winches, and communication equipment, providing professional-grade power management in a compact, expandable package.

Products specifications

Prop 65

Prop 65 WARNING: This product can expose you to chemicals, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.

Product Fitment

Universal

Color

Amber

Sold As

Each

Finish

Powdercoat

Switch color

Amber

Built-in bluetooth

Yes

Includes switches

Yes

Hardware Included

Yes
