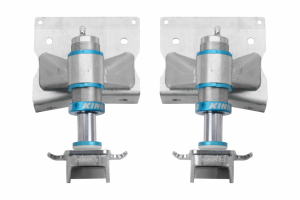

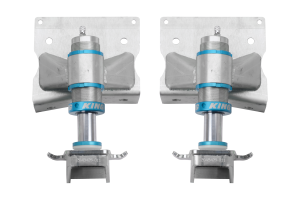

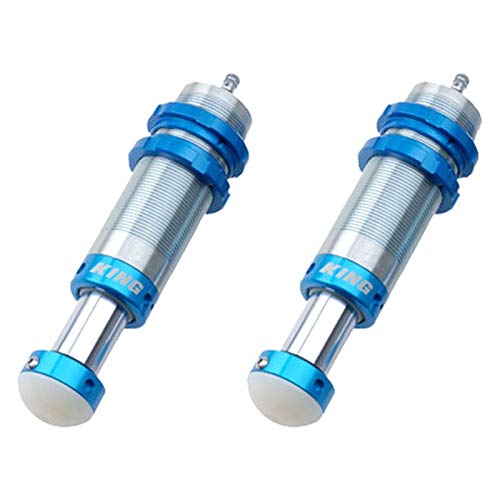

King 20AB001-104 Rear 2.0 Compact Hydraulic Bump Stop Kit

(2005-2015, 2018-2023 Toyota Tacoma)

Manufacturer

Part Number

20AB001-104
Black Friday Price

$957.43

Estimated ship date Sunday, November 22

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The King Shocks 20AB001-104 is a rear 2.0 compact hydraulic bump stop kit engineered to deliver an additional level of bottoming control when pushing the full range of suspension travel. Built with the same race-proven technology found in King's championship-winning shocks, this kit is a direct bolt-on upgrade that installs in the stock bump stop location.

Key Features:

  • 2.0-inch diameter body with 2 inches of bump travel for precise bottoming control
  • Unique piston design offers superior flow characteristics for progressive, controlled compression
  • Micro-polished shafts and advanced seal technology matching King's race shock standards
  • Fully threaded cylinder with innovative height-adjustable mounting system to accommodate aftermarket lift kits and maximize suspension travel
  • Unique offset Schrader design allows 360 degrees of rotation adjustment to clear tight spaces and provide easy valve access
  • Custom laser-cut mounting brackets precisely contoured to the frame for quick, accurate installation
  • Long-wearing nylon contact pad ensures quiet, rattle-free operation
  • Adjustable up to 200 PSI via high-pressure Schrader valve with protective cover to guard against rock damage
  • Triple stage seals prevent leaks under extreme conditions; main seal rated to 3,000 PSI
  • Heat-treated stainless steel alloy valving for long-term durability and strength
  • Aircraft-quality billet aluminum components with honed and polished bores
  • Fully rebuildable and revalvable — serviceable with simple hand tools
  • All brackets, hardware, and detailed instructions included

Note: When installing with King OE 2.5-inch shocks (part numbers 25001-121, 25001-121-EXT, 25001-121A, or 25001-121A-EXT), an additional reservoir mounting bracket kit (Part # KH02-132) must be purchased separately.

Products specifications

Fits

2005-2015, 2018-2023 Toyota Tacoma

Position

Rear
