Rywire RY-COP-IGBT IGBT Coil Sub-Harness for AEM/IGN-1A Smart Coils

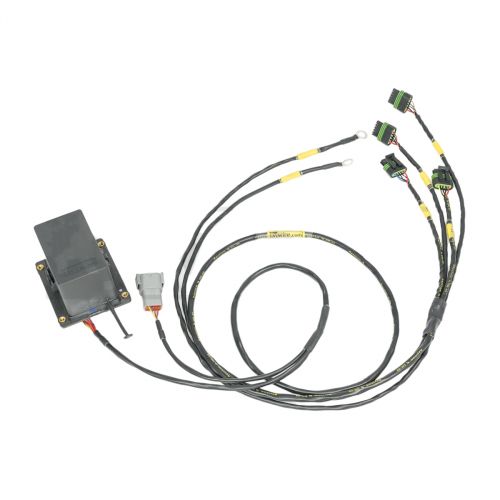

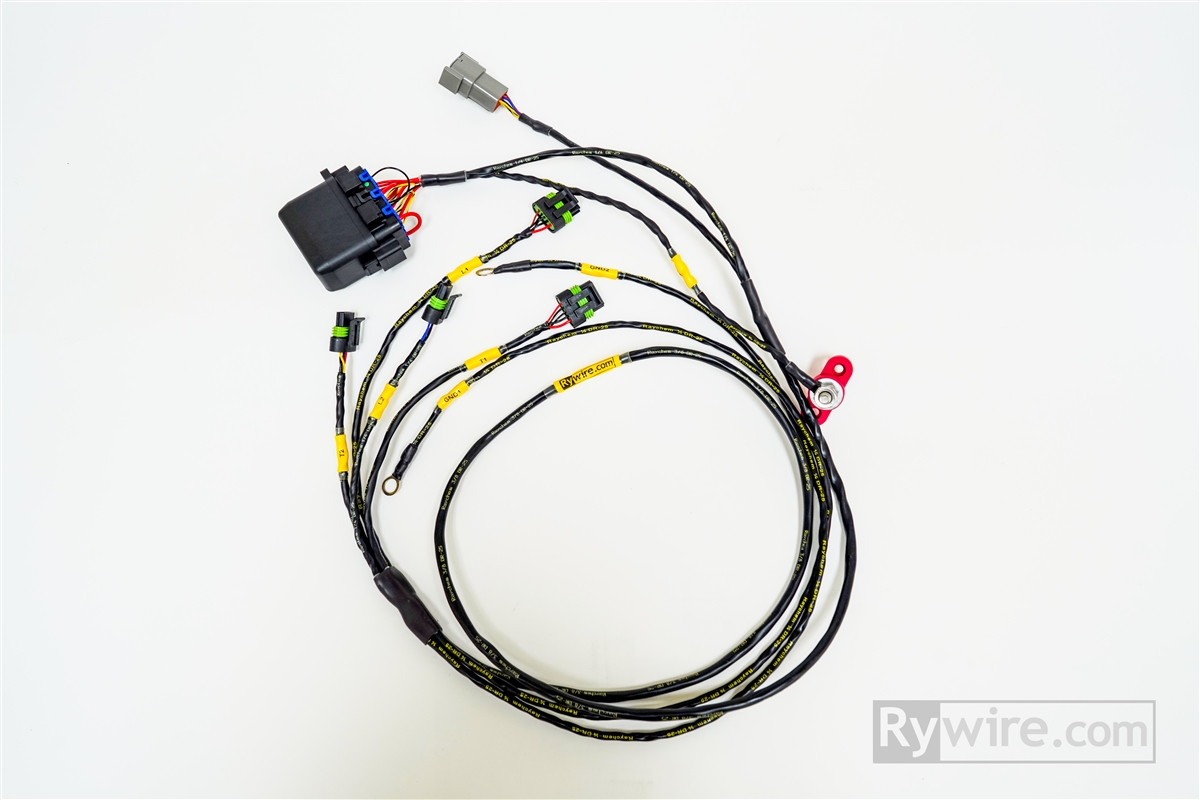

The Rywire RY-COP-IGBT coil sub-harness is engineered for 4-cylinder or 2-rotor engines using IGBT 5-wire "smart" (AEM/IGN-1A) coils. This harness plugs directly into Rywire Adaptronic harnesses for 2-rotor rotary (13B) engines, making it an ideal solution for high-performance rotary and import builds requiring professional-grade ignition wiring.

Key Features:

• Two 50A relays (one relay for each rotor) provide dedicated power delivery
• 16AWG Tefzel power wires for each coil ensure reliable current flow
• Separate grounds for each rotor (leading and trailing) optimize ignition performance
• Signal wires connect to ECU/EMS using mating 8-position Deutsch connector
• Connectors labeled L1, T1, L2, T2 for leading and trailing configuration, easily adaptable to 1, 2, 3, 4 format

Designed specifically with 2-rotor engines in mind, this sub-harness can also be used with 4-cylinder engines by simply grounding both ring terminals to the engine head. Compatible with IGBT smart coils from AEM, Holley, Stinger Performance, and other manufacturers that use the 5-wire configuration with built-in igniters.

Rywire Motorsport Electronics specializes in high-quality wiring harnesses built with premium materials including Tefzel wire and mil-spec connectors, trusted by professional racing teams worldwide.
