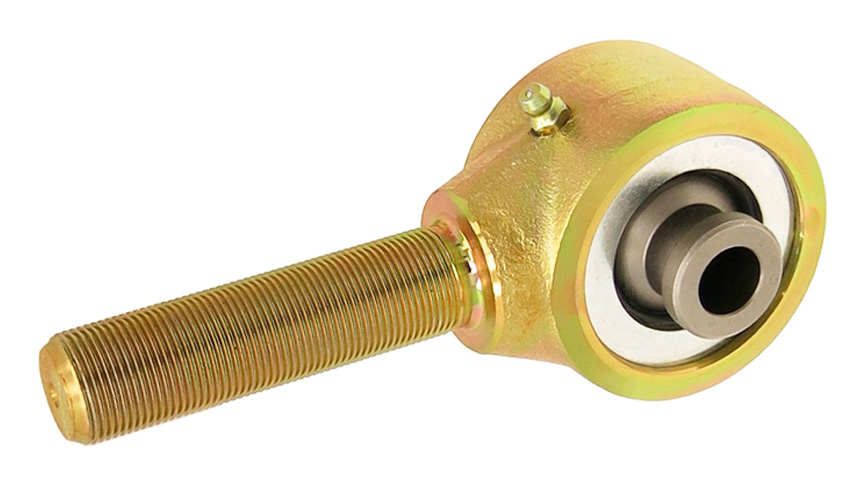

Rock Jock CE-9117N Johnny Joint Narrow Body Thread Rod End - 2.5 7/8-14 RH

The Rock Jock CE-9117N is a 2.5-inch diameter narrow body Johnny Joint rod end designed for custom fabricators and suspension builders who demand maximum articulation and durability. This forged joint delivers 40 degrees of unrestricted movement in any direction—nearly double the 22-degree range of standard heim joints—making it ideal for high-articulation off-road suspension systems.

Key Features:

• 2.5-inch diameter narrow body forged construction for superior strength
• High-density urethane bushing encases the heat-treated center ball, providing cushioning and vibration dampening that heim joints cannot match
• Cross-drilled center ball allows thru-bolt lubrication for extended service life
• Heavy-duty heat-treated side washers and snap ring retain joint internals
• 7/8-14 right hand thread shank with 2.25 inches of thread length
• 0.562-inch thru-bolt hole diameter with 2.625-inch overall mounting width
• Zerk grease fitting included for easy maintenance
• Gold zinc plating provides corrosion resistance

This Johnny Joint offers the perfect combination of articulation, durability, and maintenance-friendly design for rock crawlers, trail rigs, and custom suspension applications. The urethane bushing system eliminates the binding and noise common with heim joints while providing smooth, controlled movement throughout the suspension's range of travel. Bolt not included.
