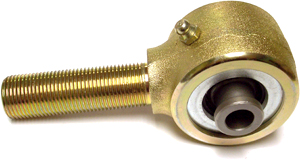

Rock Jock CE-9112SPL 2.0" Forged Johnny Joint Rod End 3/4-16 LH Thread

The Rock Jock CE-9112SPL is a premium forged Johnny Joint rod end designed for custom fabrication and high-performance suspension systems. This versatile joint delivers superior articulation and durability for off-road and heavy-duty applications.

Superior Articulation

Johnny Joints provide 30 degrees of unrestricted movement in any direction, offering significantly more flexibility than standard heim joints which are limited to approximately 22 degrees. This enhanced range of motion reduces bind in suspension systems and allows for greater wheel travel.

Cushioned Performance

Unlike traditional heim joints, the Johnny Joint design incorporates high-density urethane bushings that encapsulate the inner ball. These bushings provide vibration dampening and noise reduction while maintaining precise movement and control. The cushioning effect also extends component life by absorbing shock loads.

Robust Construction

The heat-treated center ball is cross-drilled to allow thru-bolt lubrication for consistent maintenance. Joint internals are securely retained with two heavy-duty, heat-treated side washers and a snap ring assembly. The entire unit is finished in corrosion-resistant gold zinc plating for long-lasting protection.

Technical Specifications

• Joint diameter: 2.0 inches
• Thread size: 3/4"-16 left hand (LH)
• Thread length: 2.25 inches
• Mounting width (OAW): 2.0 inches
• Thru-bolt hole diameter: 0.4375 inches (7/16")
• Zerk fitting included for easy greasing
• Standard ball configuration
• Bolt not included

Ideal for control arms, track bars, tie rods, drag links, and custom steering linkages where maximum articulation and durability are required.
