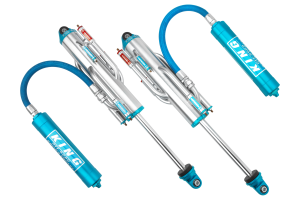

King RS4526-BP5H 4.5" Pure Race 5-Tube Bypass Shock 26" Stroke Remote Reservoir

Manufacturer

Part Number

RS4526-BP5H
Black Friday Price

$3,114.94

Estimated ship date Monday, November 23

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The King RS4526-BP5H is a professional-grade 4.5-inch diameter Pure Race series bypass shock designed for extreme off-road racing applications. This shock features a 26-inch stroke length with a 5-tube bypass configuration and hose-style remote reservoir, delivering unmatched position-sensitive damping control for the most demanding terrain.

Advanced Construction Features:

  • 4.5" shock body precision bored to +/- .001" tolerance and honed after cadmium plating for optimal piston seal
  • 1.25" diameter shock shaft induction hardened to 60-65 Rockwell scale, hard chrome plated and micro-polished to 3 RMS mirror finish
  • Large 1.00" diameter bypass tubes constructed from 4130 Chromoly material for maximum strength
  • 5-tube external bypass design provides independently tunable, position-sensitive damping stages
  • Hose-style remote reservoir with threaded end caps for higher pressure capability and easier maintenance
  • Lightweight aluminum reservoir construction aids heat dissipation and resists corrosion

Performance Engineering:

  • Cold drawn 2024 billet aluminum piston with PTFE-impregnated bronze wear band creates double seal for optimized valving
  • Heat-treated stainless steel valve shims maintain consistent damping at high temperatures
  • Bypass ports are CNC drilled, hand deburred and polished before TIG welding for unrestricted fluid flow
  • 14 turns of precise adjustment per bypass valve for fine-tuning control
  • Compression and rebound bypass tubes operate independently for maximum tuning flexibility

Mounting and Hardware:

  • Replaceable Teflon-lined steel spherical bearings at both mounting ends
  • Hydraulically pressed and TIG-welded rod end attachment (13+ years without failure)
  • Includes all necessary mounting hardware (washers, bushings, and nuts)
  • High-quality Aeroquip hoses with superior temperature and pressure ratings

This universal race shock is built entirely in the USA at King's Garden Grove, California facility from billet alloy materials machined to exacting standards. Each shock is hand-assembled by trained technicians and designed for applications requiring the ultimate in suspension performance and adjustability. The RS4526-BP5H is rebuildable and serviceable, making it a long-term investment for serious racers.
