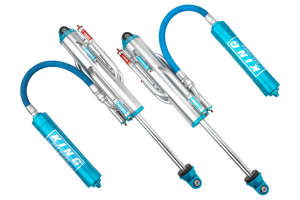

King RS4518-BP6H 4.5" Race Series 6-Tube Bypass Shock with Remote Reservoir 18" Stroke

Manufacturer

Part Number

RS4518-BP6H
Black Friday Price

$2,950.59

Estimated ship date Saturday, November 21

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

The King RS4518-BP6H is a 4.5-inch Pure Race Series bypass shock engineered for extreme off-road racing and competition vehicles. This professional-grade shock features 6 bypass tubes with hose remote reservoir configuration, 18-inch stroke, and a heavy-duty 1.25-inch shaft designed to withstand the brutal demands of high-speed desert racing and rock crawling.

Key Specifications:

  • Compressed Length: 30.06 inches
  • Extended Length: 48.06 inches
  • Stroke: 18 inches
  • Shaft Diameter: 1.25 inches
  • Bypass Tube Diameter: 1.00 inch (large tubes)
  • Configuration: 6-tube bypass with hose remote reservoir

Premium Construction Features:

  • Bypass tubes constructed from 4130 Chromoly material with CNC-drilled ports that are hand de-burred and polished
  • Shock shaft induction hardened to 60-65 Rockwell scale, hard chrome plated, and micro-polished to 3 RMS mirror finish for superior durability
  • Precision bored shock cylinders to +/- .001 inch tolerance, honed after cadmium plating for optimal piston seal
  • Cold drawn 2024 billet aluminum piston with PTFE impregnated bronze wear band and Viton o-ring double seal
  • Hard anodized 6063 aluminum alloy reservoir with threaded end caps for high-pressure resistance and easy maintenance
  • Stainless alloy heat treated valve shims that maintain consistent damping at temperatures up to 450 degrees

Advanced Performance Design:

  • Each of the 6 bypass stages is separately tunable, position sensitive, and operates independently
  • High-strength heat treated adjusting screws offer precise metering throughout entire adjustment range
  • Final compression stage functions as hydraulic bump stop for maximum control
  • Teflon-lined steel spherical bearings at both mounting points
  • Hydraulically pressed and TIG welded rod end attachment removes threads from external shaft for unmatched strength

Part of King's Pure Race Series, this shock is designed for all-out racing applications and has been proven in the world's toughest competitions including the Baja 1000 and Dakar Rally. 100% made in the USA under strict tolerances from the highest quality materials. Fully rebuildable and serviceable with standard hand tools.
