King RS4014-BP5H Pure Race Bypass Shock Tube Hose Remote Reservoir Stroke - 4.0 5 14 Inch

Manufacturer

Part Number

RS4014-BP5H
Black Friday Price

$2,486.19

Estimated ship date Monday, November 23

Authorize Seller Badge
No Hassle Returns

No Hassle Returns

Live-in-stock inventory

Live-in-stock inventory

Fitment guaranteed

Fitment guaranteed

Product Details

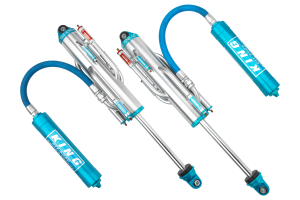

The King RS4014-BP5H is a high-performance 4.0-inch Pure Race Bypass shock engineered for extreme off-road racing applications. This professional-grade shock absorber features a 14-inch stroke with 5-tube bypass design and hose-style remote reservoir, delivering position-sensitive damping control for the most demanding competition environments.

Key Features:

  • 4.0-inch shock body with 14-inch stroke length (24.375-inch compressed, 38.375-inch extended)
  • 5-tube external bypass design with large 1.00-inch bypass tubes for precise position-sensitive tuning
  • 1.25-inch induction-hardened shaft (Rockwell 60-65 hardness) with hard chrome plating and micro-polished 3 RMS mirror finish
  • Hose-style remote reservoir with lightweight hard-anodized 6063 aluminum construction for superior heat dissipation
  • 4130 Chromoly bypass tubes with CNC-drilled, hand-deburred ports and TIG-welded construction, pressure tested to 300 PSI
  • Precision-bored shock cylinders (+/- .001 inch tolerance) with cadmium plating and honing for optimal piston seal
  • Independently adjustable bypass valves built from high-temp 17-4 stainless steel alloy
  • Replaceable Teflon-lined steel spherical bearing mounting on both ends
  • Threaded end caps for high-pressure resistance and simplified maintenance

Part of King's Pure Race Series, this shock is built to withstand temperatures up to 450 degrees and deliver unmatched performance in the world's toughest races including the Baja 1000 and Dakar Rally. 100% hand-assembled in the USA at King's Garden Grove, California facility from precision-machined billet alloy materials. Fully serviceable and tunable with simple hand tools. Universal fitment for custom race applications.
